TP-Link OMADA switch ES210GP
Novinka
Provedení:Desktop; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:8; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):63; Počet portů Combo:1
Vaše cena:
Zobrazit cenu
Dostupnost:
2 ks na cestě (termín neznámý)
Podrobnosti

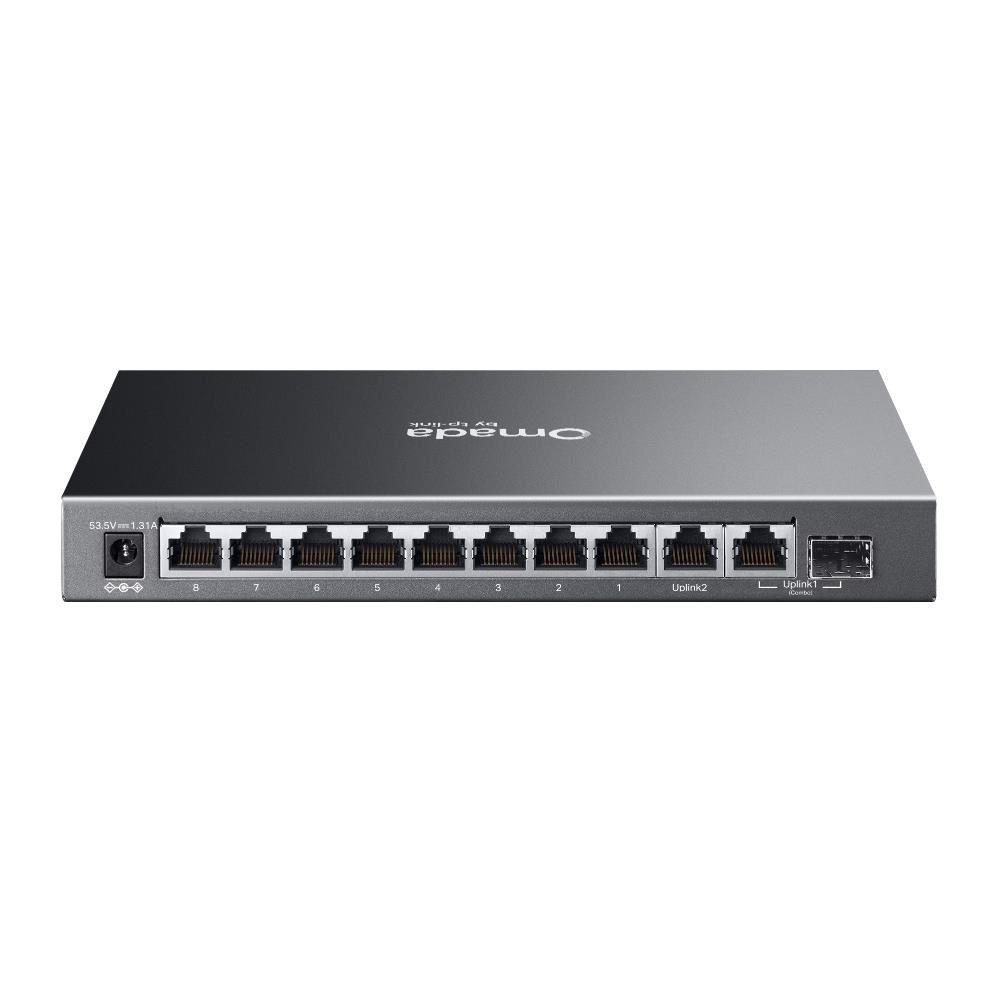

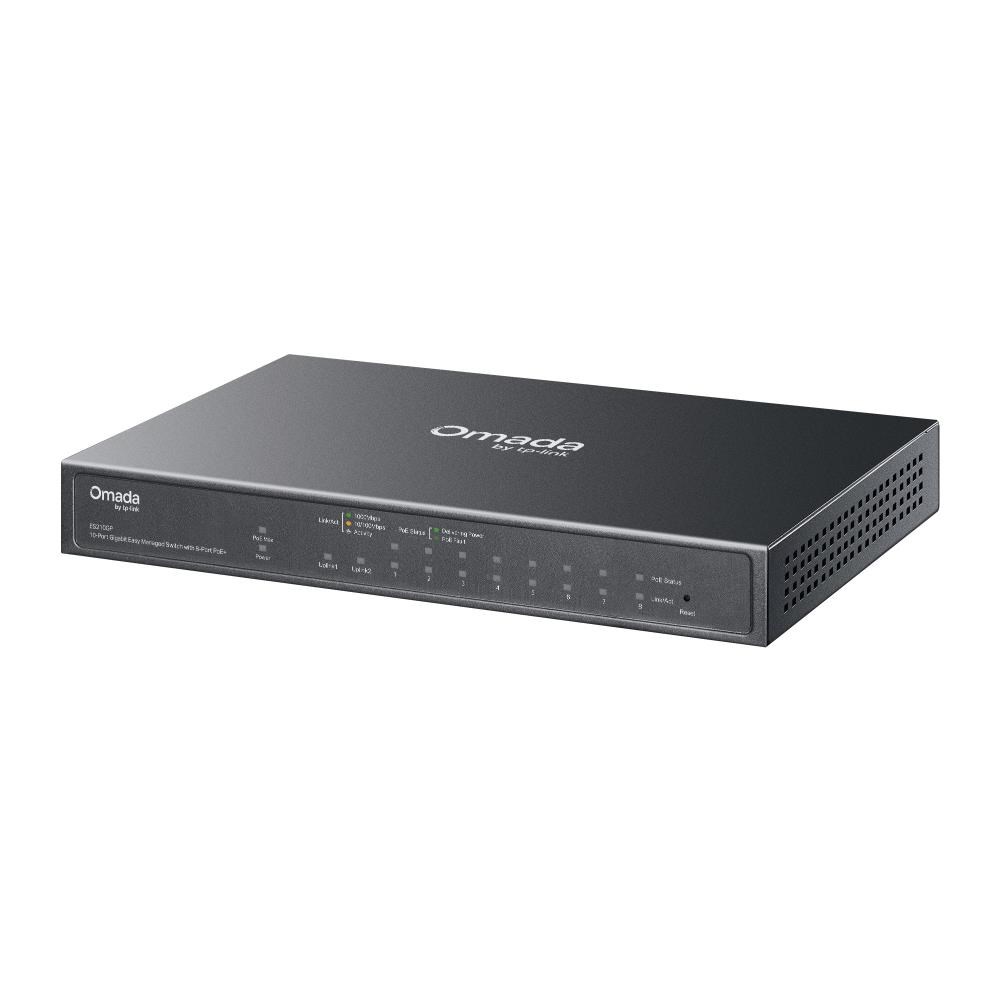

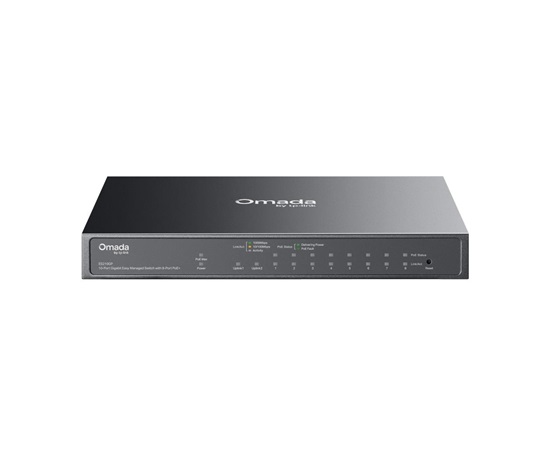

TP-Link OMADA switch ES210GP
Omada 10portový gigabitový easy managed switch s 8 porty PoE+
- 9× 10/100/1000Mb/s RJ45 portů (8× PoE+ kompatibilních se standardy 802.3af/at)
- 1× gigabitový SFP/RJ45 kombinovaný port
- Napájecí rozpočet 63 W, až 30 W pro každý PoE port*
- Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pokročilých funkcí
- Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
- Až 250 m (820 ft) PoE**, vzdálený restart kamery†, QoS a izolace portů pro spolehlivé sítě dohledu
- Automatická prevence smyček, VLAN a IGMP Snooping
- Bezventilátorový design pro tichý provoz
- Odolné kovové pouzdro a možnost umístění na stůl nebo montáže na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es210gp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop
• Wall Mount |
| Physical Security Lock | ? |
| Power Supply | DC Power Adapter (Output: 53.5V DC / 1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports • PoE Budget: 63W available for all PoE+ ports, 30W max per port • Remote Camera Reboot† • Up to 820ft (250m) PoE transmission distance** |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES210GP
• Power Adapter • Power Cord • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Technické parametry
- Provedení: Desktop
- Funkce: PoE (Power over ethernet)
- Funkce: QoS (Quality of service)
- Funkce: VLAN (virtual local area network)
- Funkce: DHCP snooping
- Funkce: L2
- Funkce: Web management/Smart switch
- Technologie: Gigabit ethernet + Gigabit optika
- Technologie: Gigabit Ethernet 1000Mbps
- Počet portů LAN: 8
- Podporované standardy PoE: 802.3af
- Podporované standardy PoE: 802.3at
- PoE budget (W): 63
- Počet portů Combo: 1
- Ventilátor: Ne
- Maximální počet portů: 10
- Počet PoE+ portů: 8
- Management: Web
