TP-Link OMADA průmyslový switch IES206GPP
Novinka
Provedení:DIN Rail; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:6; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt
Vaše cena:
Zobrazit cenu
Dostupnost:
2 ks na cestě (termín neznámý)
Podrobnosti

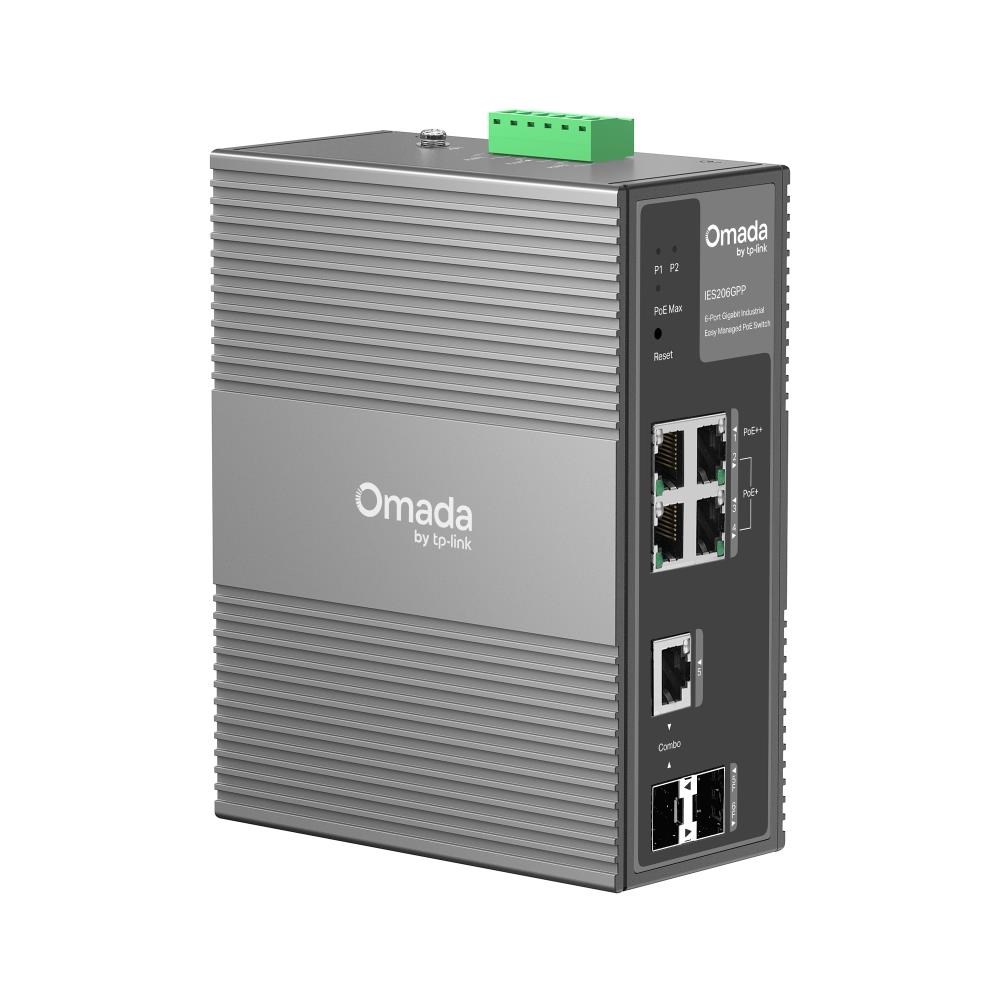

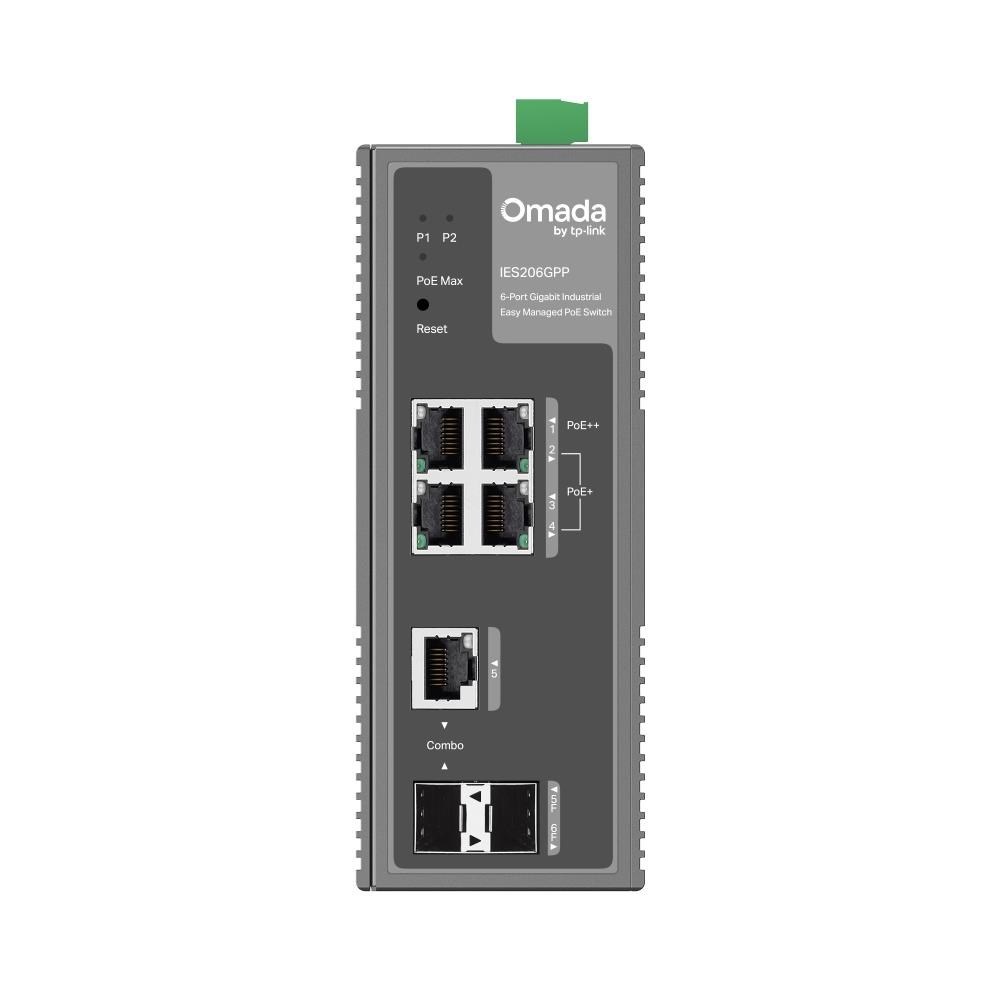

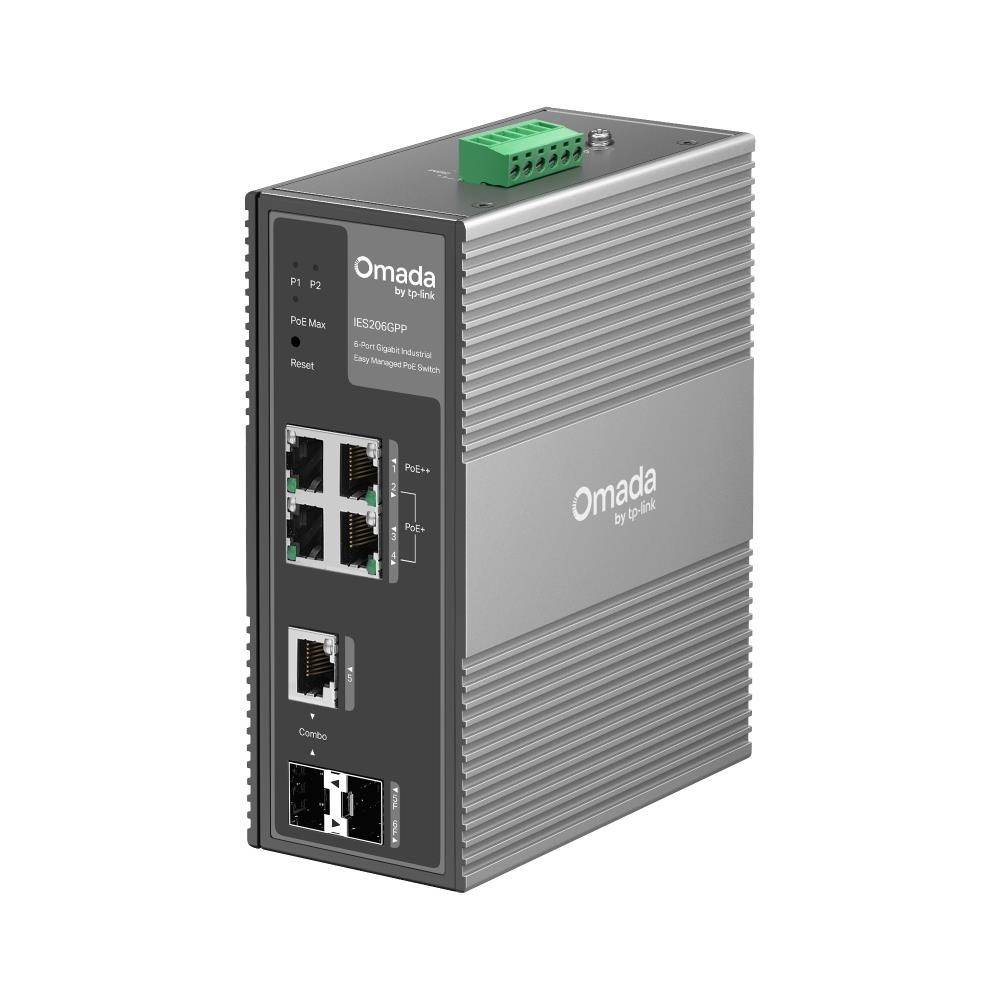

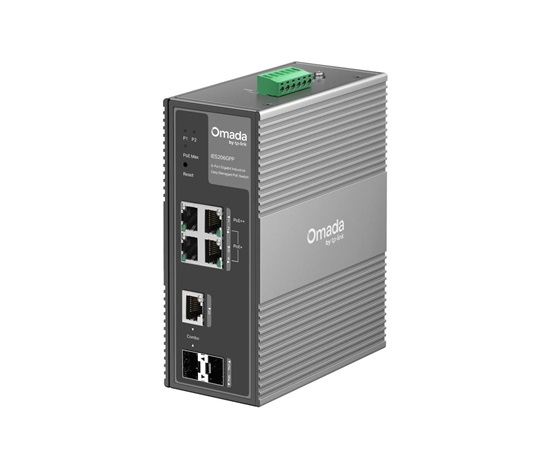

TP-Link OMADA průmyslový switch IES206GPP
Omada 6portový gigabitový průmyslový Easy Managed Switch s 3 porty PoE+ a 1 portem PoE++
- 4× gigabitové RJ45 porty (1× PoE++, 3× PoE+)
- 1× gigabitový kombinovaný RJ45/SFP slot, 1× gigabitový SFP slot
- Napájecí rozpočet 120 W* s až 60 W pro PoE++ port
- Profesionální průmyslový design: provozní teplota -40~75°C, ochrana proti přepětí 6 kV a duální napájení 1+1
- Bohaté funkce: PoE až do vzdálenosti 250 m (820 ft)**, VLAN, QoS a STP/RSTP
- Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
- Odolné hliníkové pouzdro s krytím IP40 a možnost montáže na DIN lištu nebo na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies206gpp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 1× 10/100/1000 Mbps PoE++ RJ45 Ports
• 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • DIN-rail mounting
• Wall mounting |
| Physical Security Lock | ? |

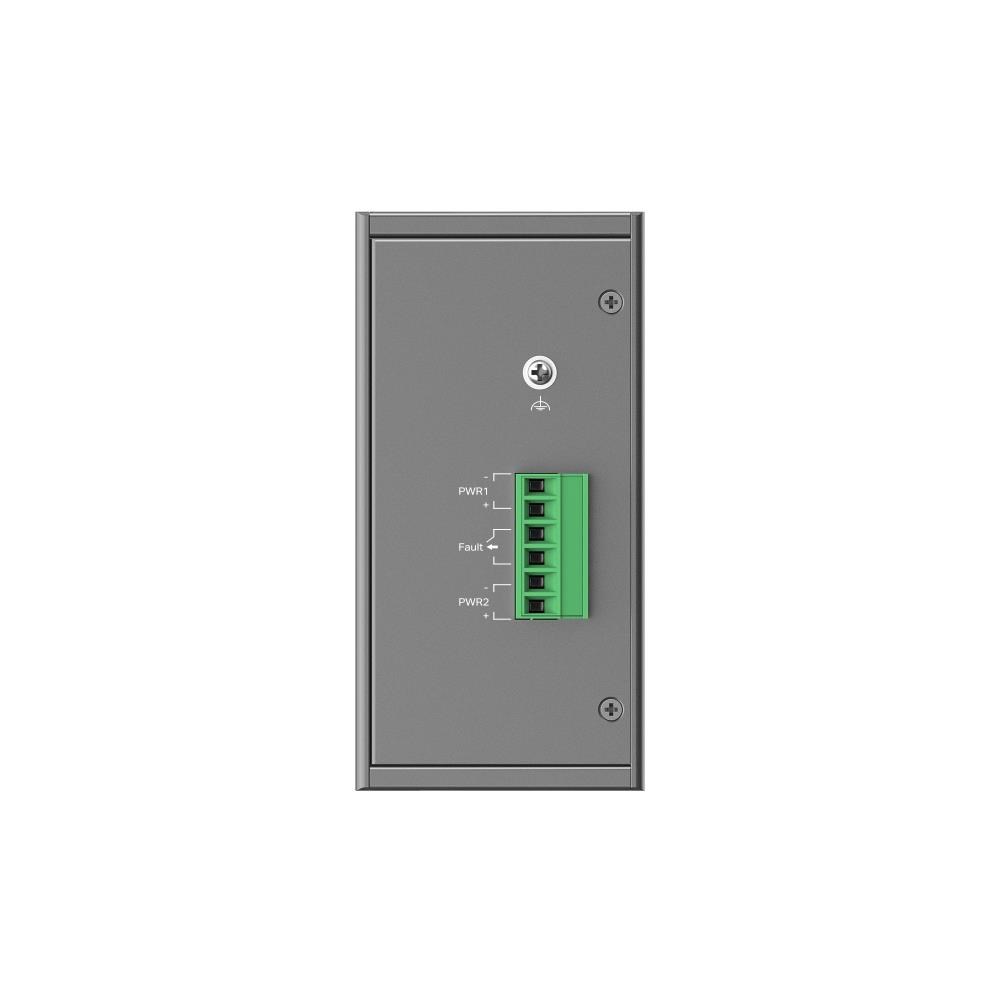

| Power Supply | 12-57V 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant
• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A) |
| Dimensions ( W x D x H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports |
| PERFORMANCE | |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p DSCP Priority
• 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation
- Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • IES206GPP
• DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | • Operating Temperature: -40?~75? (-40?~167?)
• Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
Technické parametry
- Provedení: DIN Rail
- Funkce: PoE (Power over ethernet)
- Funkce: QoS (Quality of service)
- Funkce: VLAN (virtual local area network)
- Funkce: DHCP snooping
- Funkce: L2
- Funkce: Web management/Smart switch
- Technologie: Gigabit ethernet + Gigabit optika
- Technologie: Gigabit Ethernet 1000Mbps
- Počet portů LAN: 6
- Přenosová rychlost LAN (Mb/s): 1 000
- Podporované standardy PoE: 802.3bt
- Podporované standardy PoE: 802.3af
- Podporované standardy PoE: 802.3at
- PoE budget (W): 120
- Počet PoE Out portů: 4
- Počet SFP portů: 2
- Počet portů Combo: 1
- Ventilátor: Ne
- Počet PoE++ portů: 1
- Maximální počet portů: 6
- Počet PoE+ portů: 3
- Management: Web
- Vlastnosti switche: Funkce POE po portech
