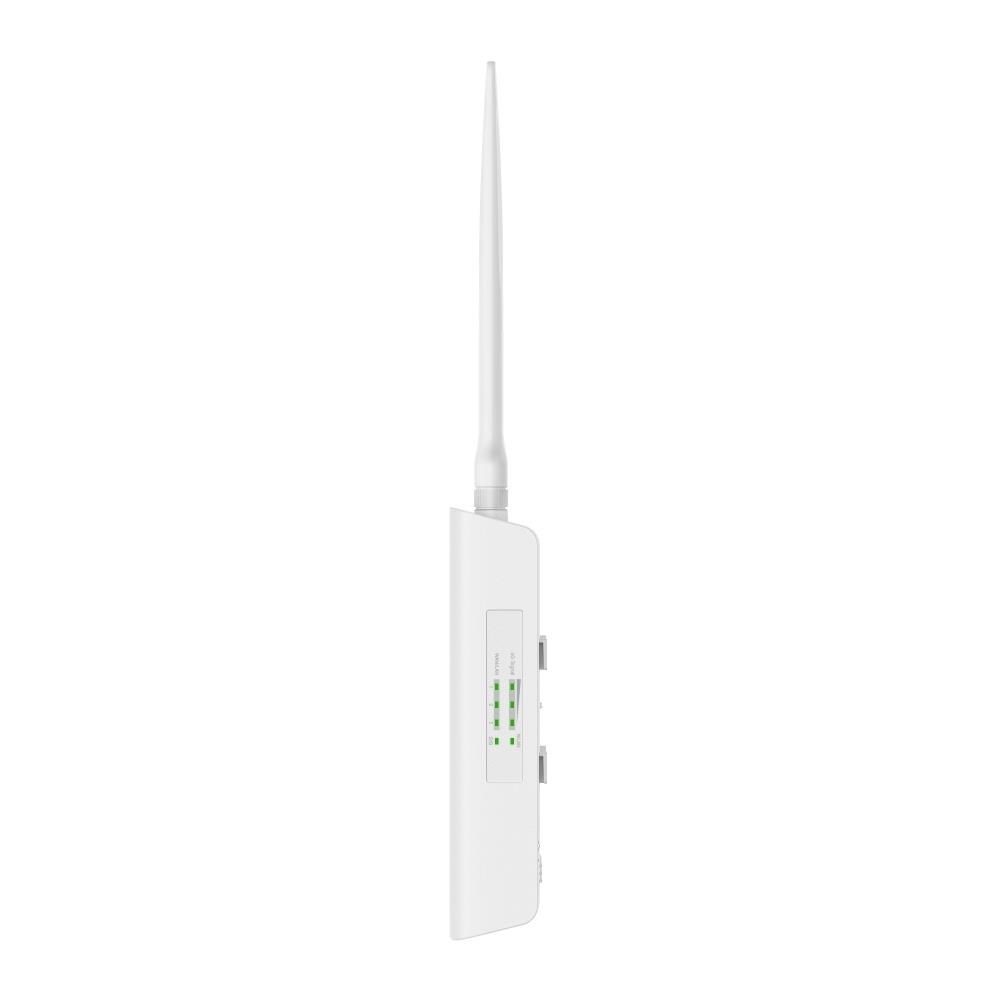

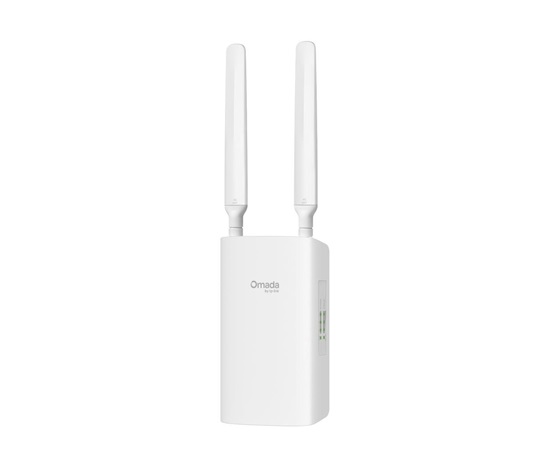

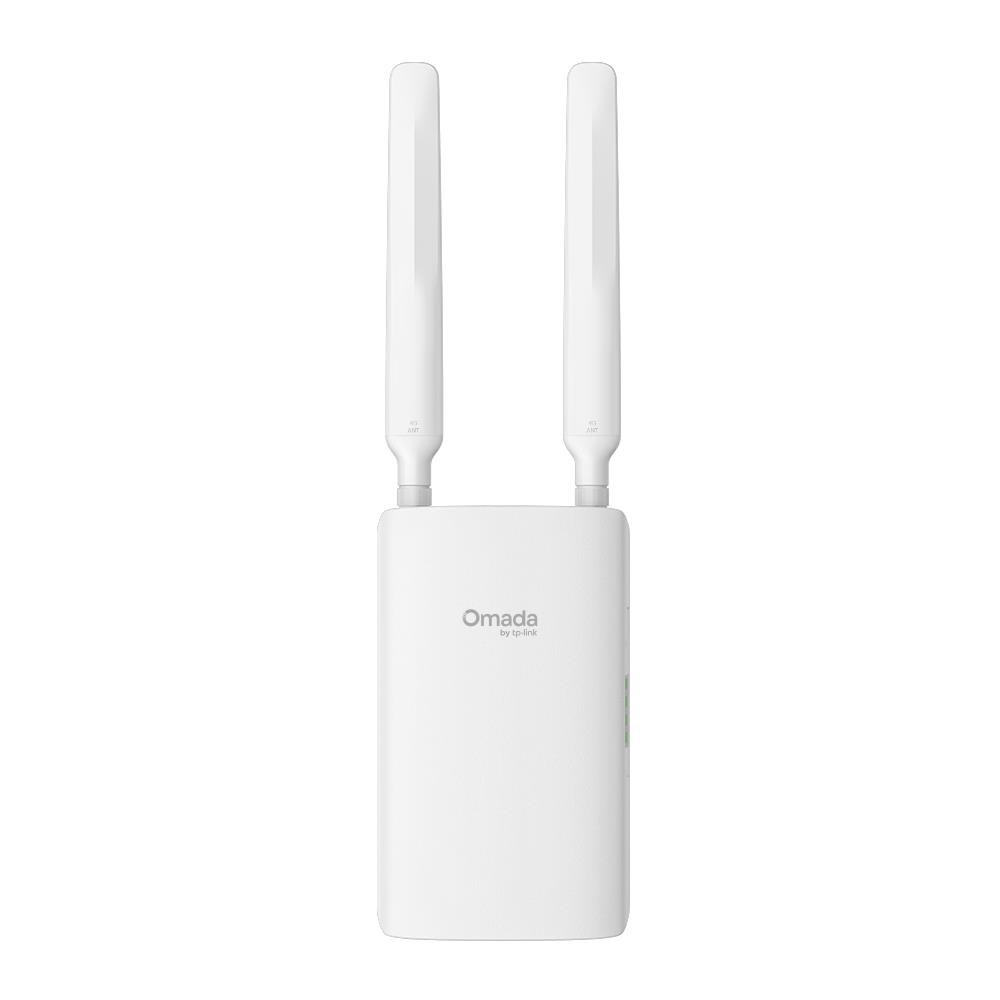

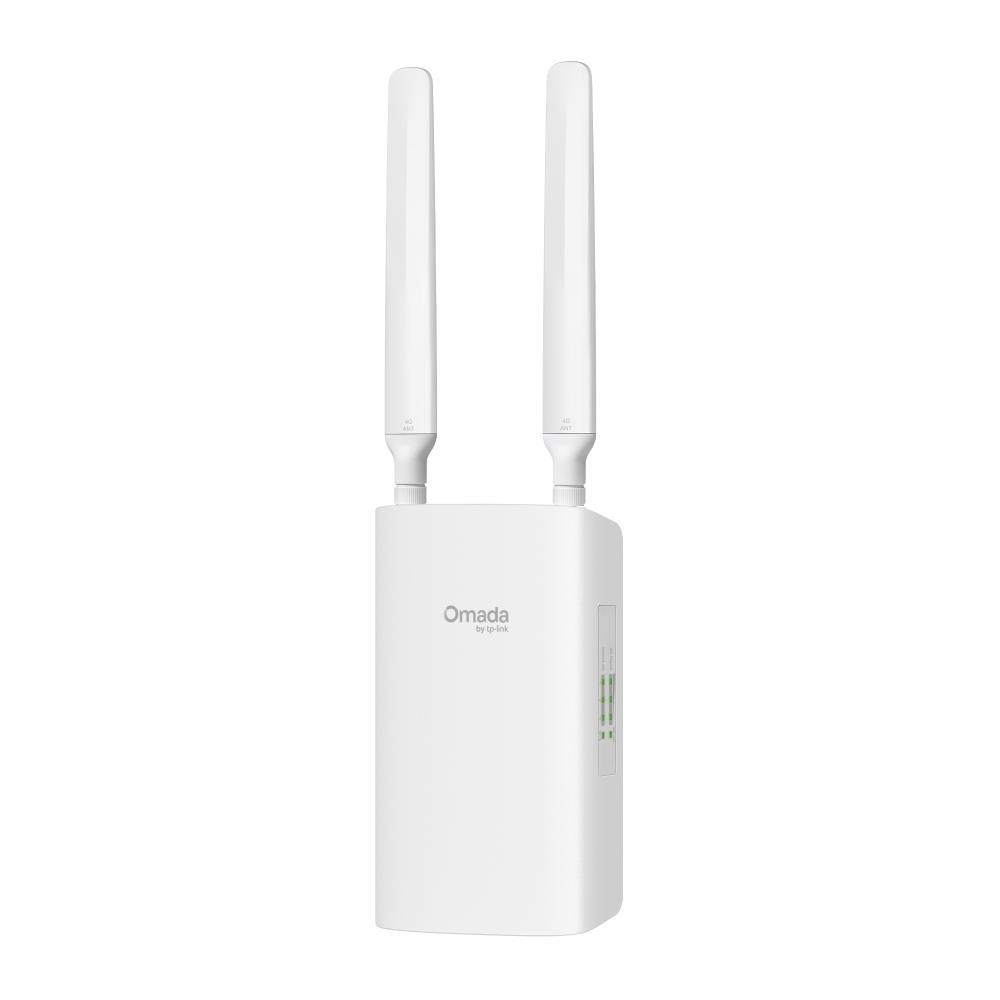

TP-Link OMADA ER603WP-4G-Outdoor
Speciální doplňky
Novinka
Funkce:Router, VPN; Přenosová rychlost Wi-Fi (Mb/s):300; Podporované standardy:802.11n; Frekvenční pásmo (GHz):2,4; Počet portů LAN:3; Gigabit ethernet; Typ antény:Integrovaná; Slot na SIM kartu; Další vlastnosti:Podpora IPv6, PoE (Power over ethernet), Podpora 4G/LTE, Podpora Wi-Fi Mesh, Management, FTP server, VLAN
Vaše cena:
Zobrazit cenu
Dostupnost:
Obvykle 5 dnů
Podrobnosti
TP-Link OMADA ER603WP-4G-Outdoor
Omada 4G Cat4 N300 venkovní PoE Gateway
- 4G Cat4 až 150 Mb/s*
- Wi-Fi 4, podpora rychlosti až 300 Mb/s v pásmu 2,4 GHz

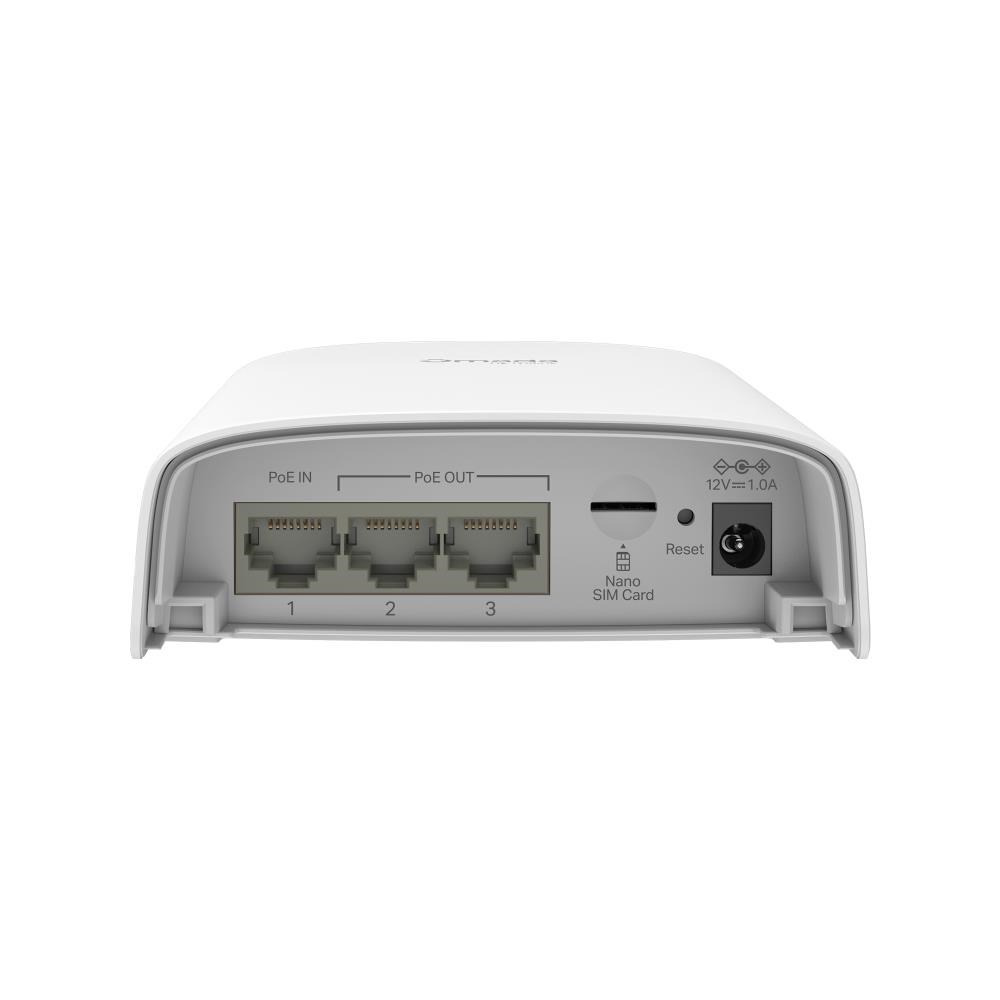

- 3× gigabitové porty WAN/LAN (2× PoE Out, 1× PoE In)
- 1× slot pro kartu Nano SIM
- PoE 802.3af/at/bt / pasivní PoE / napájení stejnosměrným proudem
- Odolnost proti povětrnostním vlivům IP55 a ochrana proti blesku 4 kV
- Vyvažování zátěže mezi 4G a ethernetovým WAN
- VPN IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE
- Centralizovaná cloudová správa
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-router-5g-4g-wifi-router/er603wp-4g-outdoor
Technické specifikace
| 4G | |
| Network Type | LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 (2100/850/900 MHz) |
| SIM Type | 1 Nano SIM slot (CAT4 4G) |
| Frequency | • Downlink: 150 Mbps
• Uplink: 50 Mbps |
| SECURITY | |
| Access Control | • Source/Destination IP Based ACL
• Stateful ACL • IPv4/IPv6 ACL • National Based ACL |
| DNS Proxy | DNSSEC, DoH, DoT, DNS Override |
| Filtering | • Web Group Filtering§
• URL Filtering • Web Security§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| ARP Inspection | • Sending GARP Packets
• ARP Scanning§ • IP-MAC Binding • ARP Detection |
| VPN | |
| GRE | ✓ (Only in Standalone Mode) |
| IPsec VPN | • 6 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec • Failover • IKE v1/v2 • MD5, SHA1, SHA-256, SHA2-384, SHA2-256 and SHA2-512 • Authentication Algorithm NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (6) • 6 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (6) • 6 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server
• OpenVPN Client (3) • 18 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | ✓ |
| SD-WAN | ✓ (Only in Controller Mode) |
| HARDWARE FEATURES | |
| Interface | 3 Gigabit WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | Passive/802.3af/at/bt PoE; 12V/1A Adapter
(A passive PoE adapter is provided) |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 300 Mbps |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR3 |
| LED | 4G Signal, WLAN. WAN/LAN, SYS |
| Dimensions ( W x D x H ) | 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8mm)(excluding antennas) |
| Antenna | 2 internal Wi-Fi antennas
2 external LTE antennas |

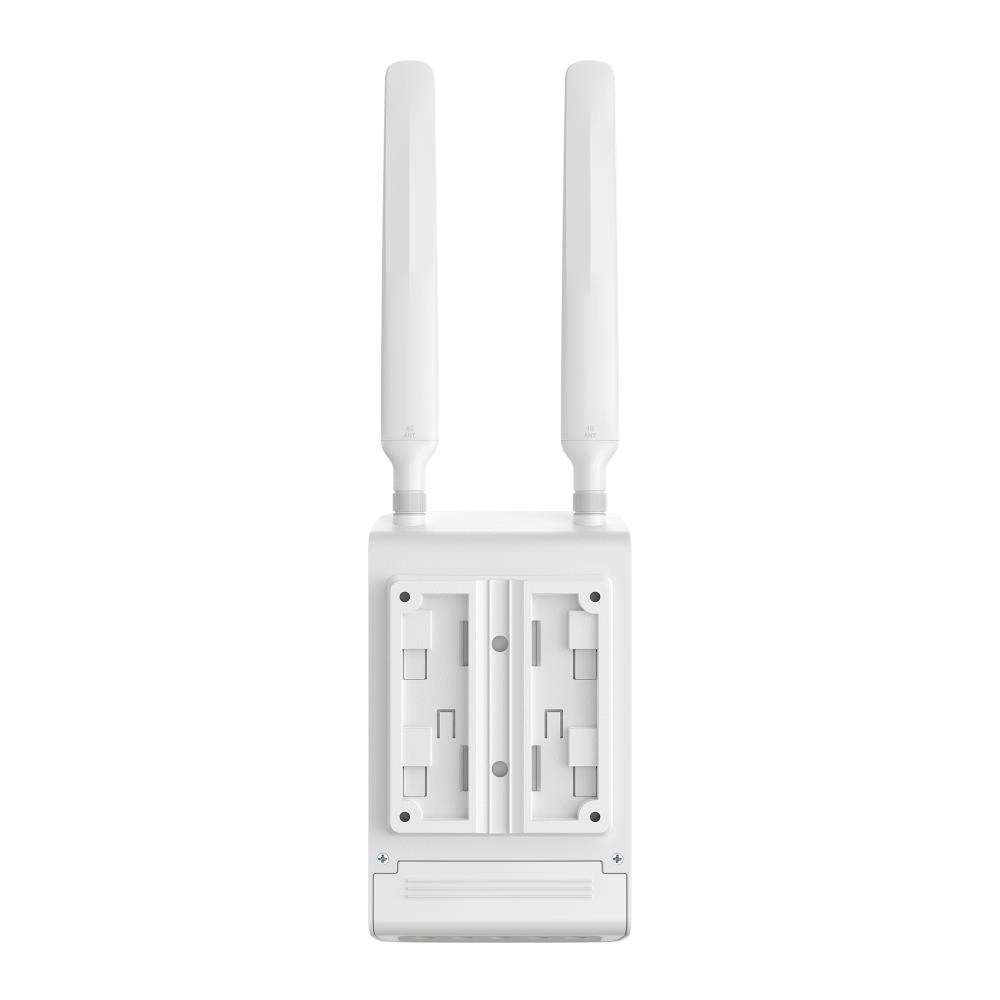

| Mounting | Wall/Pole Mounting (Kits included) |
| Max. Power Consumption | • 10 W without PoE
• 62 W with PoE |
| PERFORMANCE | |
| Concurrent Session | 50 |
| New Sessions /Second | 2,028 |
| NAT (Static IP) | 944.785 Mbps / 939.201 Mbps |
| NAT(DHCP) | 944.545 Mbps / 927.491 Mbps |
| NAT(PPPoE) | 939.278 Mbps / 928.516 Mbps |
| NAT (L2TP) | 432.126 Mbps / 355.712 Mbps |
| NAT (PPTP) | 513.104 Mbps / 457.323 Mbps |
| 66 Byte Packet Forwarding Rate | 1,419,519 pps / 1,418,731 pps |
| 1,518 Byte Packet forwarding rate | 81,068 pps / 81,068 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 192.432 Mbps
• ESP-SHA256-AES256: 195.445 Mbps • ESP-SHA384-AES256: 48.55 Mbps • ESP-SHA512-AES256: 48.363 Mbps |
| GRE | • Unencrypted: 425.292 Mbps
• Encrypted: 164.058 Mbps |
| WireGuard VPN | 50.175 Mbps |
| OpenVPN | 11.369 Mbps |
| L2TP VPN Throughput | • Unencrypted: 370.822 Mbps
• Encrypted: 144.05 Mbps |
| PPTP VPN Throughput | • Unencrypted: 408.038 Mbps
• Encrypted: 35.912 Mbps |
| Management Features | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface
• Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Management Features | Automatic Device Discovery
Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning) |
| WIRELESS FEATURES | |
| Advanced Features | • WPA/WPA2 Personal, WPA/WPA2 Enterprise
• Multiple SSIDs: 8 in total (8 per radio) • Rate Limit: Based on SSID/Client |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| LAN DNS | LAN DNS |
| WAN Connection Type | • Static IP
• Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server
• DHCPv6 PD Server§ • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60 |
| Stateful ACL | ✓ |
| Quality of Service | ✓ |
| Bridge VLAN | ✓ |
| SMS | Receive/Send SMS |
| mDNS Repeater | ✓ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT
• Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Routing | • Static Routing
• Policy Routing • RIP§ • OSPF§ |
| Session Limit | IP-based Session Limit |
| AUTHENTICATION | |
| Web Authentication | • No Authentication
• Simple Password • Hotspot (Local User / Voucher# / SMS# / Radius#) • External Radius Server • External Portal Server# • LDAP |
| OTHERS | |
| Certification | CE, RoHS |
| Package Content | • ER603WP-4G-Outdoor
• Mounting Kits • Passive PoE Adapter • Quick Installation Guide |
| Environment | • Operating Temperature: -30°C–60 °C (-22 °F–140 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) • Operating Humidity: 5%–95% non-condensing • Storage Humidity: 5%–90% non-condensing |
Technické parametry
- Funkce: Router
- Funkce: VPN
- Přenosová rychlost Wi-Fi (Mb/s): 300
- Podporované standardy: 802.11n
- Frekvenční pásmo (GHz): 2,4
- Počet portů LAN: 3
- Gigabit ethernet: Ano
- Typ antény: Integrovaná
- USB port: Ne
- Slot na SIM kartu: Ano
- Další vlastnosti: VLAN
- Další vlastnosti: Podpora IPv6
- Další vlastnosti: FTP server
- Další vlastnosti: Management
- Další vlastnosti: Podpora 4G/LTE
- Další vlastnosti: PoE (Power over ethernet)
- Další vlastnosti: Podpora Wi-Fi Mesh
