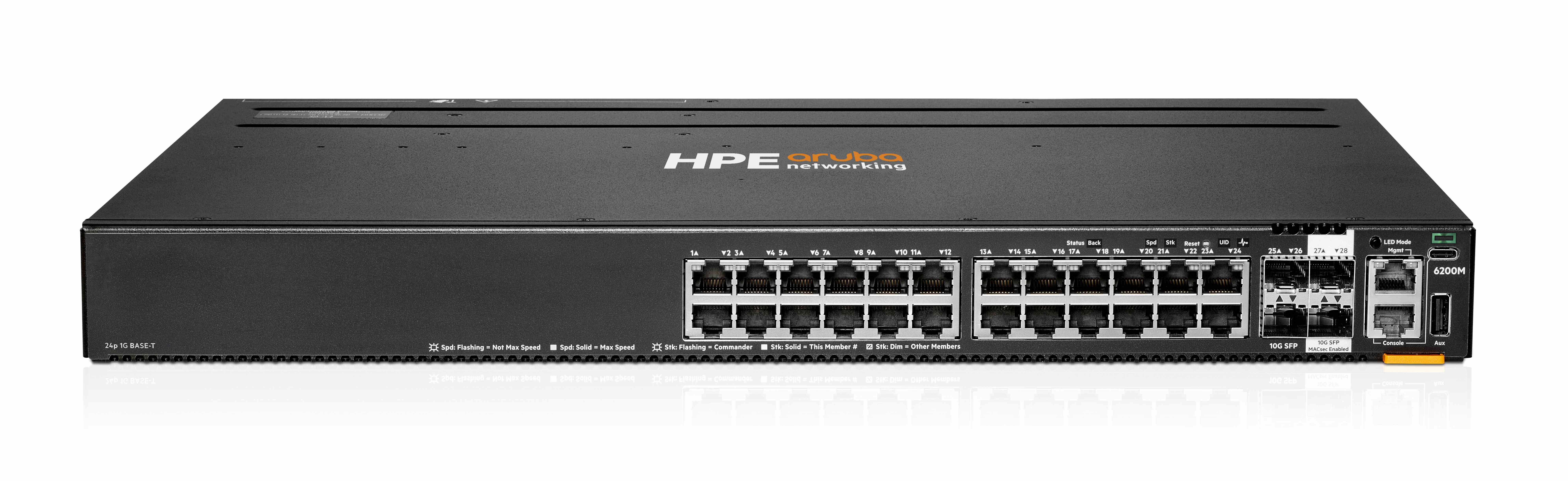

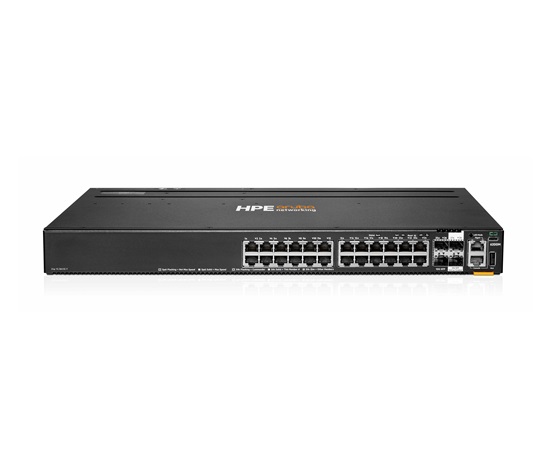

HPE Aruba Networking 6200M 24G 4SFP+ Switch (R8Q67A)
|
|
Specifications
|
|
Description
|
24x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port
|
|
Power supplies
|
2 field-replaceable, hotswappable power supply slots
1 minimum power supply required (ordered separately)
Supports JL085A PSU
|
|
Fans
|
- Switch has two fan tray slots; Switch includes one fan tray. Min 1 fan tray required. Optional second fan tray ordered separately.
- Fan trays are field replaceable and hotswappable.
- Each fan tray contains two fans.
|
|
Physical characteristics
|
|
Dimensions
|
(H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
|
|
Configuration Weight
|
5.59 kg (12.32 lbs)
|
|
Additional Specifications
|
|
CPU
|
Quad Core ARM CortexTM A72 @ 1.8GHz
|
|
Memory and Flash
|
8 GB DDR4 16 GB eMMC
|
|
Packet Buffer
|
6 MB Packet Buffer Memory
|
|
Performance
|
|
Model Switching Capacity
|
128 Gbps
|
|
Model Throughput Capacity
|
Up to 95.2 Mpps
|
|
Average Latency (LIFO-64-bytes packets)
|
1Gbps: 3.6µSec 10Gbps: 2.9µSec
|
|
Stack Size
|
8 members (with other 24/48p 6200F and 6200M switches only; No stacking support with 12p 6200F switches)
|
|
Max. Stacking Distance
|
Up to 10 kms with long range transceivers
|
|
Stacking Bandwidth
|
40 Gbps
|
|
Switched Virtual Interfaces (dual stack)
|
256
|
|
IPv4 Host Table (ARP)
|
8,000
|
|
IPv6 Host Table (ND)
|
8,000
|
|
IPv4 Unicast Routes
|
2,000
|
|
IPv6 Unicast Routes
|
2,000
|
|
MAC Table Capacity
|
32,768
|
|
IGMP Groups
|
1,000
|
|
MLD Groups
|
1,000
|
|
IPv4/IPv6/MAC ACL Entries (ingress)
|
1,000/1,000/1,000
|
|
IPv4/IPv6/MAC ACL Entries (egress)
|
512/256/512
|
|
Environment
|
|
Operating Temperature
|
32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time.
|
|
Operating Relative Humidity
|
15% to 95% @ 104°F (40°C) non-condensing
|
|
Non-Operating
|
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
|
|
Non-Operating Storage Relative Humidity
|
15% to 90% @ 149°F (65°C) non-condensing
|
|
Max Operating Altitude
|
10,000 feet (3.048 km) Max
|
|
Max Non-Operating Altitude
|
15,000 feet (4.6 km) Max
|
|
Acoustic
|
Sound Power, LWAd = 4.5 Bel Sound Pressure, LpAm (Bystander) = 29.1 dB
|
|
Primary Airflow
|
Front and side to back
|
|
Electrical Characteristics
|
|
Frequency
|
50Hz/60Hz
|
|
AC Voltage
|
JL085A PSU: 100V-240V
|
|
Current
|
JL085A PSU: 3A/1.2A
|
|
80plus.org Certification
|
JL085A PSU: 80plus Gold
|
|
Maximum heat dissipation BTU/hr and kj/hr info needed
|
164 BTU/hr
173 kj/hr
|
|
Power Consumption (230 VAC)
|
With JL085A PSU: Idle: 56W 100% Traffic Rate: 75W
|
|
Safety
|
Europe:
EN 62368-1:2014+A11:2017
EN 62368-1:2020+A11:2020
UK: BS EN 62368-1:2014 + A11:2017 2nd Ed BS EN 62368-1:2020 + A11:2020 3rd Ed
US:
UL 62368-1, 3rd Ed.,
Canada:
CAN/CSA C22.2 No. 62368-1:19, 3rd Ed.
Worldwide:
IEC 62368-1:2014 2nd Ed.
IEC 62368-1: 2018 3rd Ed.
Taiwan:
CNS-15598-1:2020
China:
GB 4943.1:2022
|
