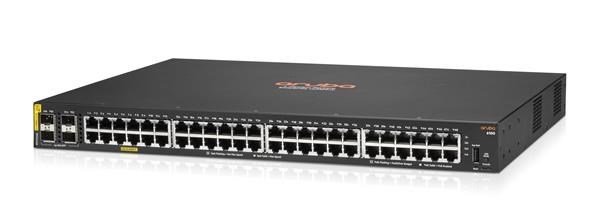

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch

Promoakce
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L3; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:0; Počet portů LAN:0; Podporované standardy PoE:Žádný; PoE budget (W):0; Počet PoE Out portů:0; Počet PoE Out portů:0; Počet SFP portů:4; Počet SFP portů:4; Počet SFP+ portů:0

Vaše cena:
Dostupnost: Obvykle 28 dnů
Kód:
726396
P/N:
R9Y04A
Záruka:
24 Doživotní
Výrobce:
Hewlett Packard Enterprise
EAN:
Porovnat produkt

Podrobnosti

Aruba 6100 48G CL4 4SFP+ 740W Sw (R9Y04A)

Description

48x ports 10/100/1000BASE-T Class 4 PoE Ports Supports PoE Standards IEEE 802.3af, 802.3at 4x 1/10G SFP Ports 1x USB-C console port 1x USB Type-A Host port

Power supplies

Fixed power supply (950 W)

Fans

Fixed fans

Physical characteristics

Dimensions

(H) 4.39 cm x (W) 44.25 cm x (D) 32.42 cm (1.73" x 17.42" x 12.77")

Configuration Weight

4.7 kg (10.36 lbs)

Additional Specifications

CPU

Dual Core ARM CortexTM A9 @ 1016 MHz

Memory and Flash

4 GB DDR3 16GB eMMC 128 MB Flash ROM

Packet Buffer

12.38MB and 4.5MB Ingress/7.875MB Egress

Performance

Model Switching Capacity

176 Gbps

Model Throughput Capacity

98.6 Mpps

Average Latency (LIFO-64-bytes packets)

1Gbps: 1.9 µs 10Gbps: 1.8 µs

Switched Virtual Interfaces (dual stack)

16

IPv4 Host Table (ARP)

1,024

IPv6 Host Table (ND)

512

IPv4 Unicast Routes

512

IPv6 Unicast Routes

512

MAC Table Capacity

8,192

IGMP Groups

512

MLD Groups

512

IPv4/IPv6/MAC ACL Entries (ingress)

256/128/256

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5000 ft derate -1°C for every 1000 ft from 5000 ft to 10000 ft

Operating Relative Humidity

5% to 95% at 104°F (40°C) non-condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Non-Operating Storage Relative Humidity

5% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10000 feet (3 km) Max

Max Non-Operating Altitude

15000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 4.95 Bel Sound Pressure, LpAm (Bystander) = 35.91 dB

Primary Airflow

Side-to-side

Electrical Characteristics

Frequency

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

Current

9.2 A / 4.9 A

Power Consumption (230 VAC)

Idle: 37.5W Max Power (w/o PoE): 49.7W Max Power (w/ PoE): 890W

Safety

IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed.,

Emissions

VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A

Lasers

IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 35: 2016

EN

EN 55035:2017 / A11:2020

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC / EN 61000-3-2

Flicker

IEC / EN 61000-3-3

Mounting and Enclosure

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

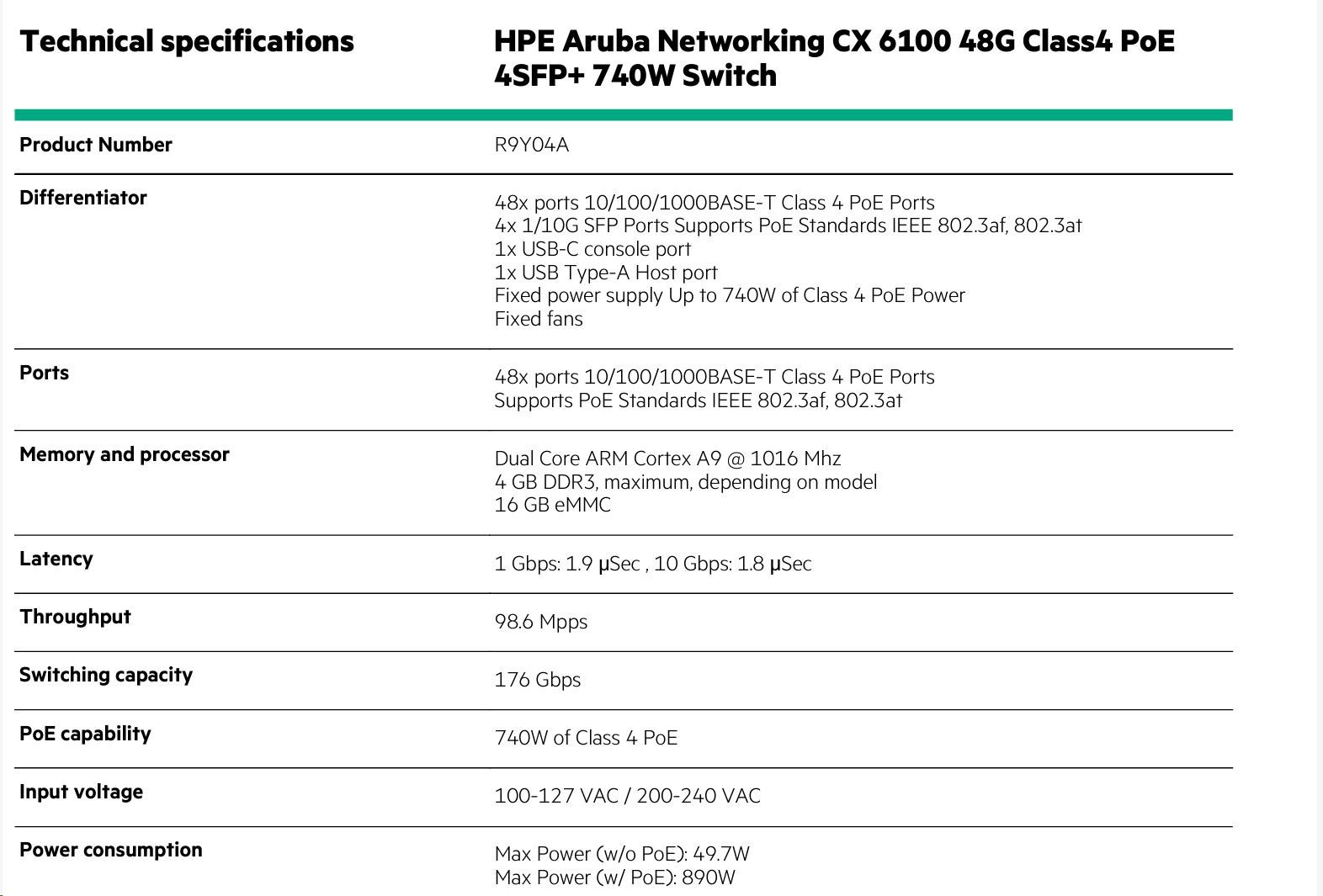

Technické parametry
