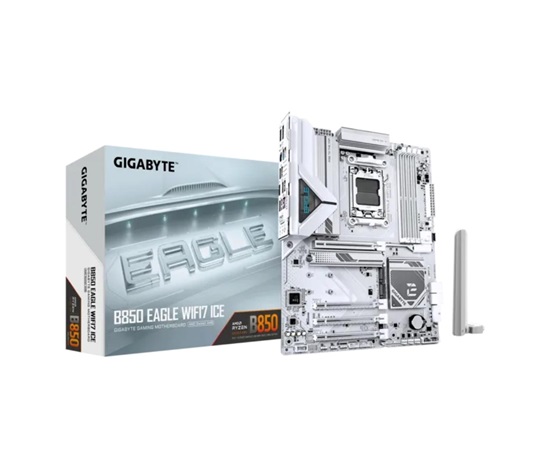

GIGABYTE MB Sc AM5 B850 EAGLE WF7 ICE, AMD B850, 4xDDR5, 1xHDMI, 1xDP, Wifi, ATX

Novinka
GIGABYTE MB Sc AM5 B850 EAGLE WF7 ICE, AMD B850, 4xDDR5, 1xHDMI, 1xDP, Wifi, ATX
GIGABYTE MB Sc AM5 B850 EAGLE WF7 ICE, AMD B850, 4xDDR5, 1xHDMI, 1xDP, Wifi, ATX
GIGABYTE MB Sc AM5 B850 EAGLE WF7 ICE, AMD B850, 4xDDR5, 1xHDMI, 1xDP, Wifi, ATX
GIGABYTE MB Sc AM5 B850 EAGLE WF7 ICE, AMD B850, 4xDDR5, 1xHDMI, 1xDP, Wifi, ATX

Formát základní desky:ATX; Chipset:AMD B850, AMD; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:4; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:8

Vaše cena:
Dostupnost: Obvykle 14 dnů
Kód:
1706335
P/N:
B850 EAGLE WF7 ICE
Záruka:
36 Měsíc(ů)
Výrobce:
Gigabyte
Zástupce v EU:
EAN:
Porovnat produkt

Podrobnosti

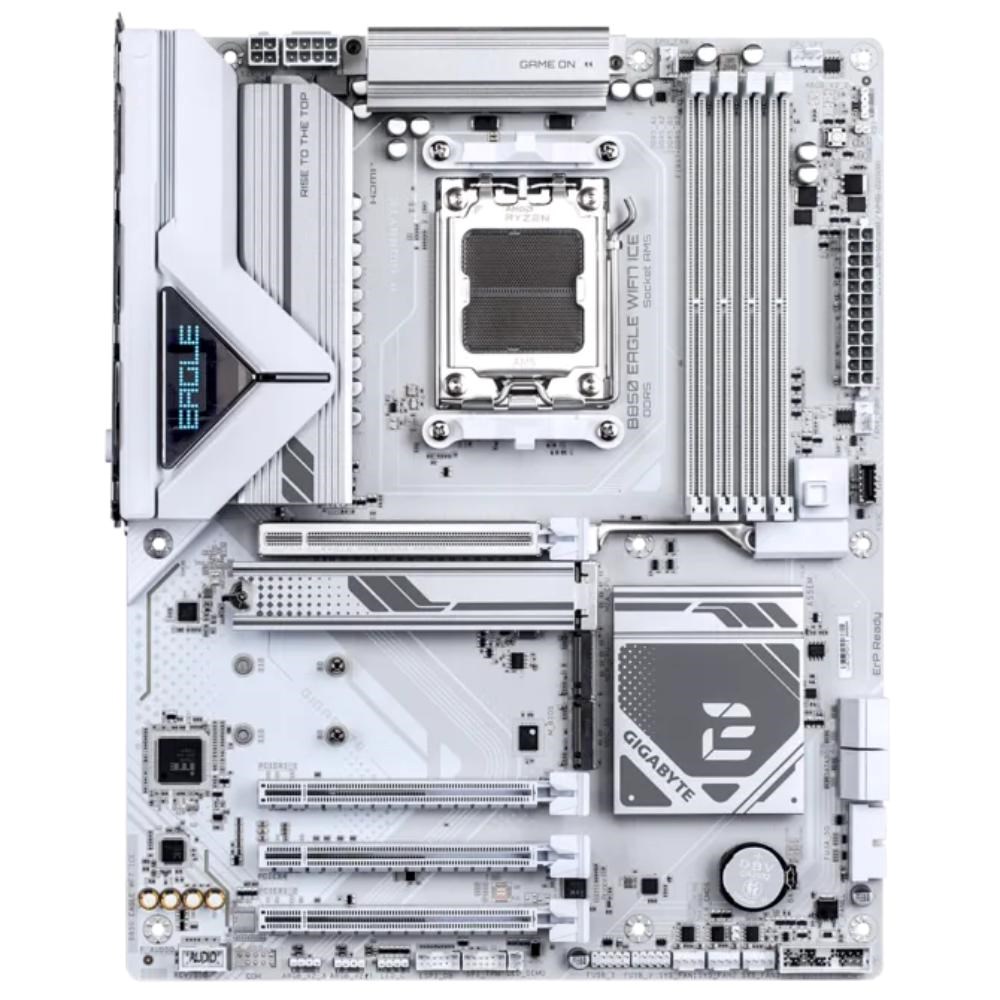

GIGABYTE B850 EAGLE WF7 ICE


CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)



Chipset

AMD B850



Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)



Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)



Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless Communication module

Realtek® Wi-Fi 7 RTL8922AE

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.



Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

* The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the SATA3 0 and SATA3 1 connectors. The SATA3 0/1 connector becomes unavailable when a device is installed in the PCIEX1_1 or PCIEX1_2 slot.



Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.
