Provedení skříně:Midi Tower; Vybavení PC skříně:Bez integrovaného zdroje, Přední Audio panel, Přední USB panel; Počet pozic 2.5" (SSD):4; Počet pozic 3.5" (HDD):2; Bočnice:Prosklená

Vaše cena:
Dostupnost: Obvykle 28 dnů
Kód:
1208110
P/N:
FD-C-MES2M-02
Záruka:
24 Měsíc(ů)
Výrobce:
Fractal Design
Zástupce v EU:
EAN:
Porovnat produkt

Podrobnosti

Meshify 2 Mini

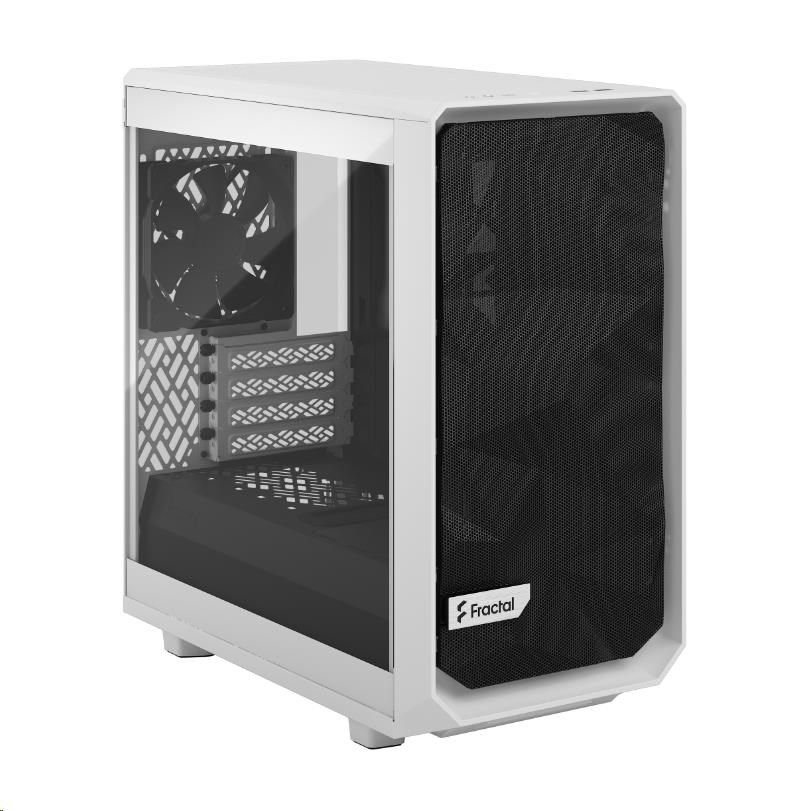

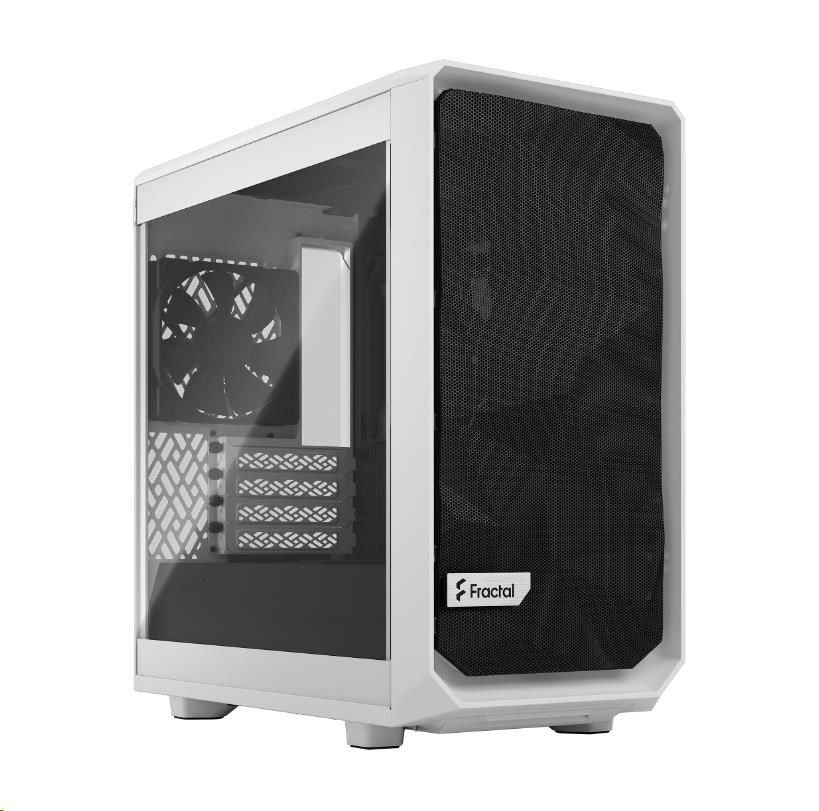

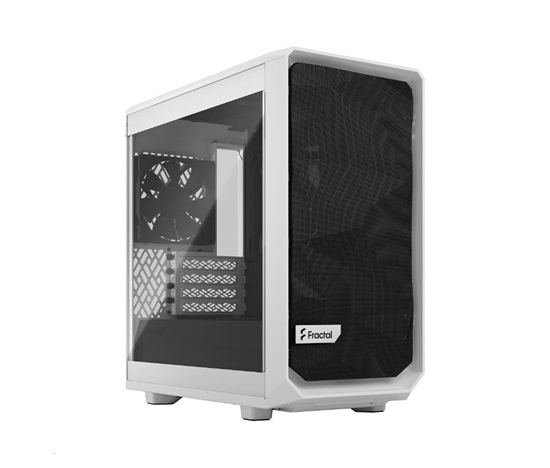

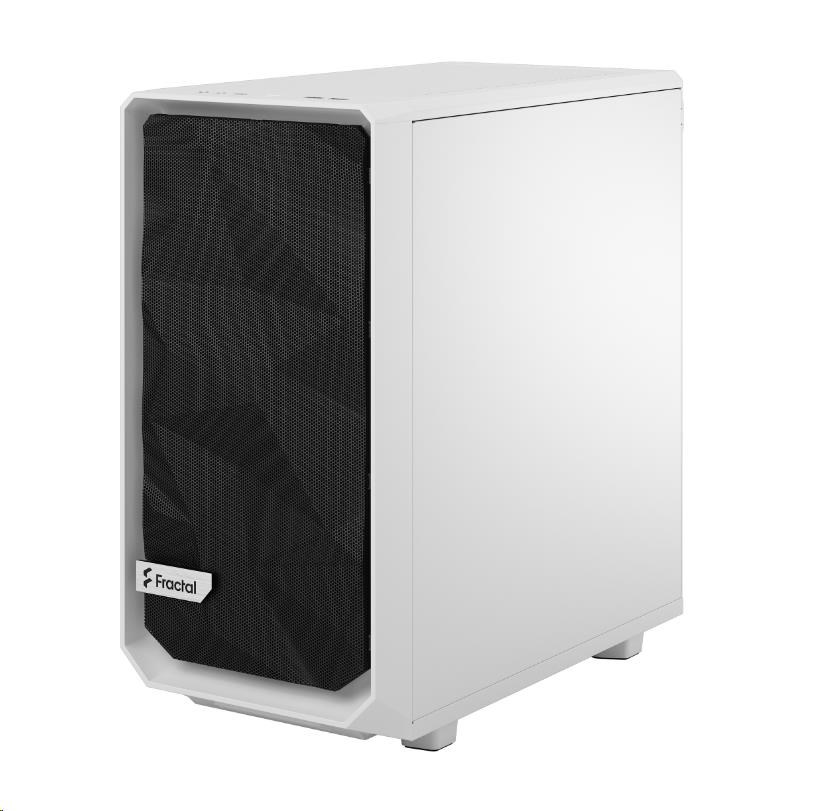

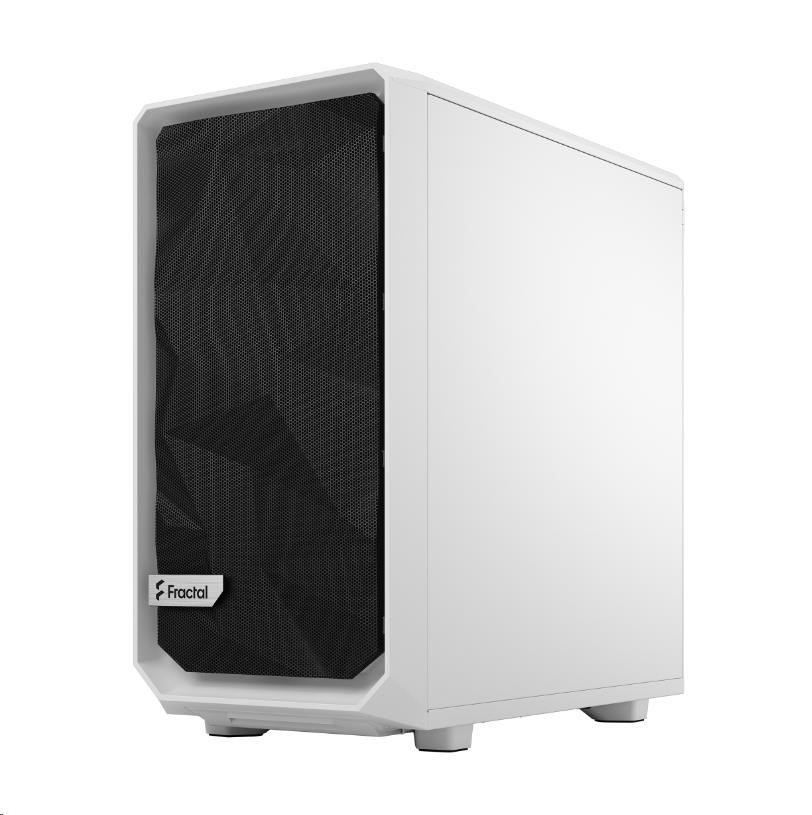

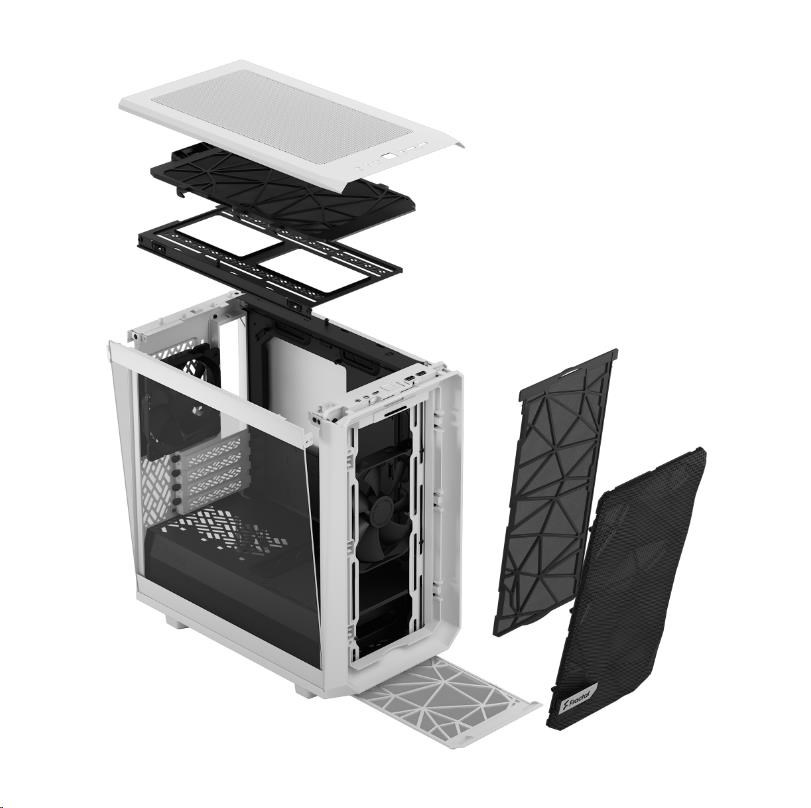

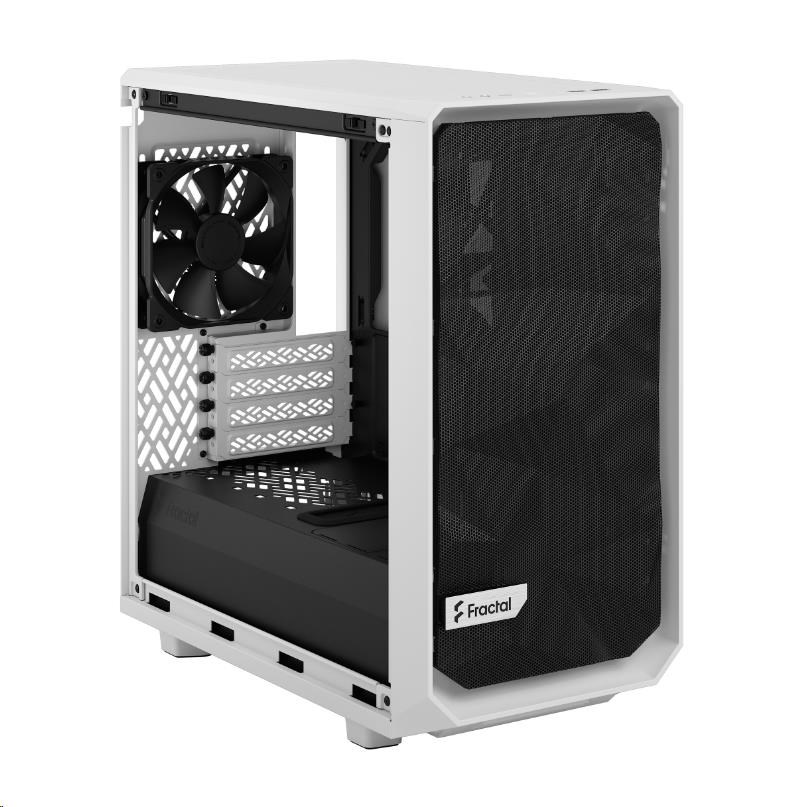

The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top.

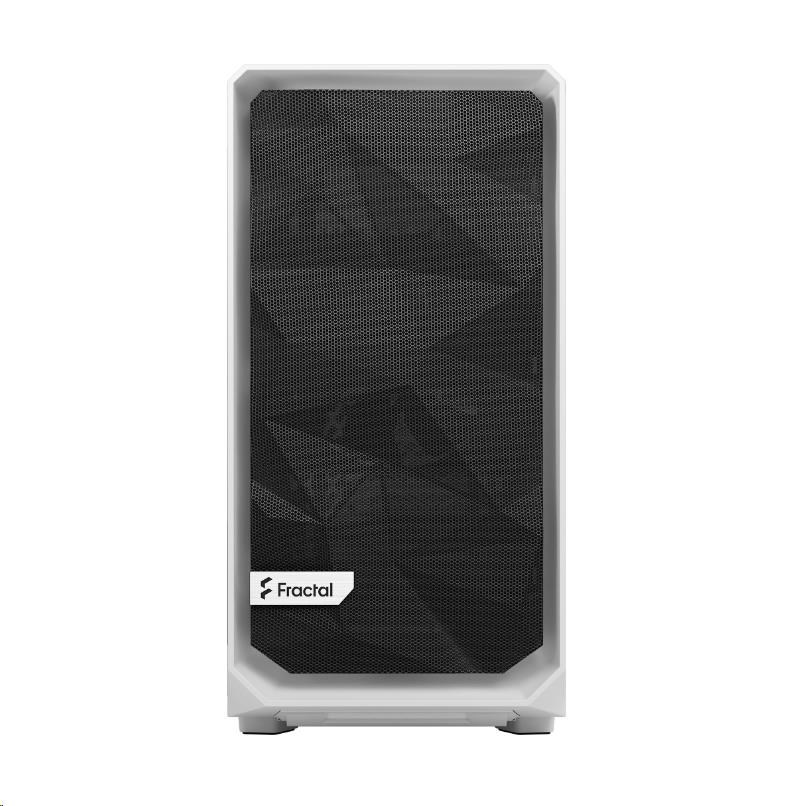

  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic

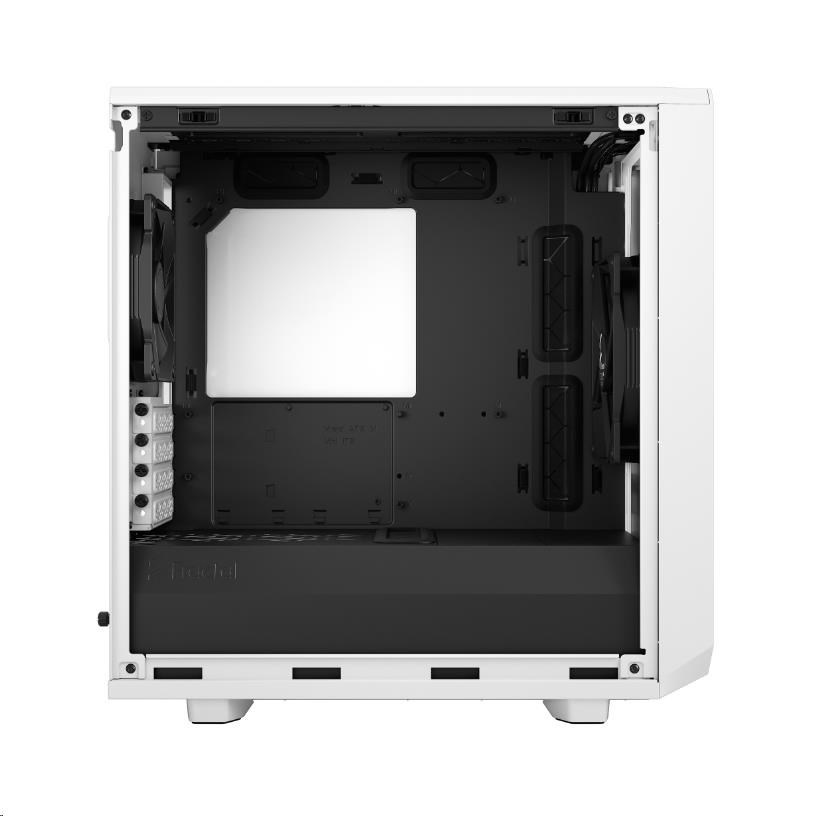

  • Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support

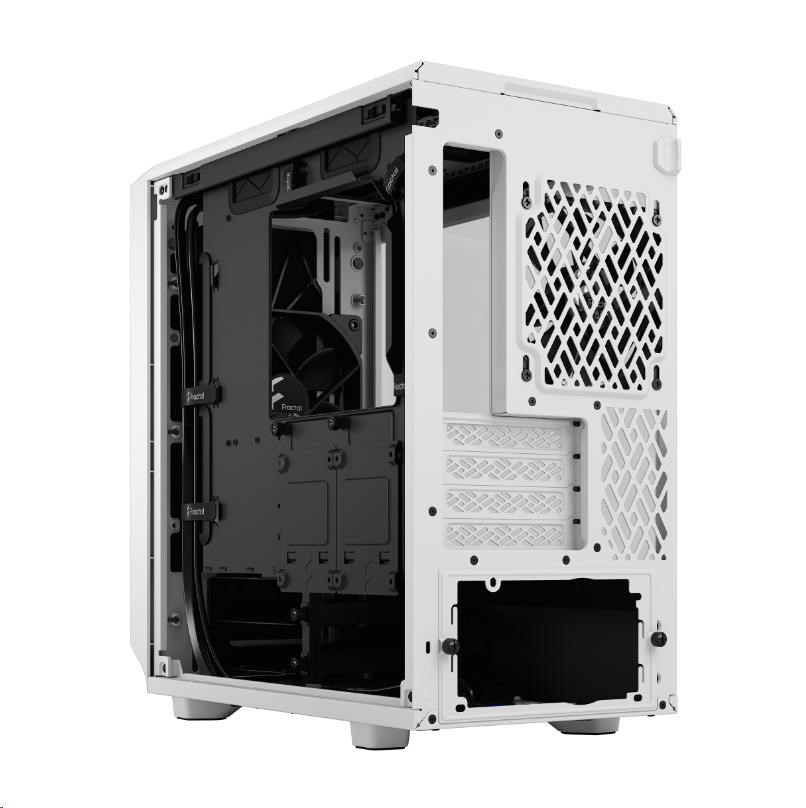

  • Open interior layout creates a smooth airflow path from front intake to rear exhaust

TECHNICAL SPECIFICATIONS

3.5"/2.5" drive mounts 2 (included)
Dedicated 2.5" drive mounts 4 (2 included)* max 8 mm drive height for mounts behind motherboard plate
Expansion slots 4

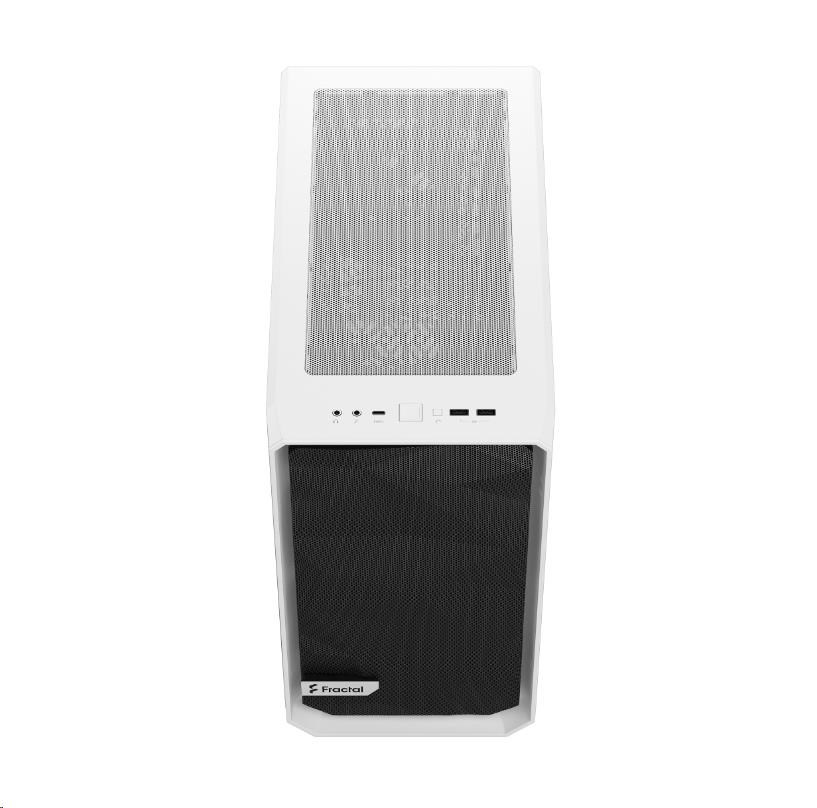

Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts 7x 120 mm or 4x 140 mm
Front fan 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
Top fan 2x 120/140 mm

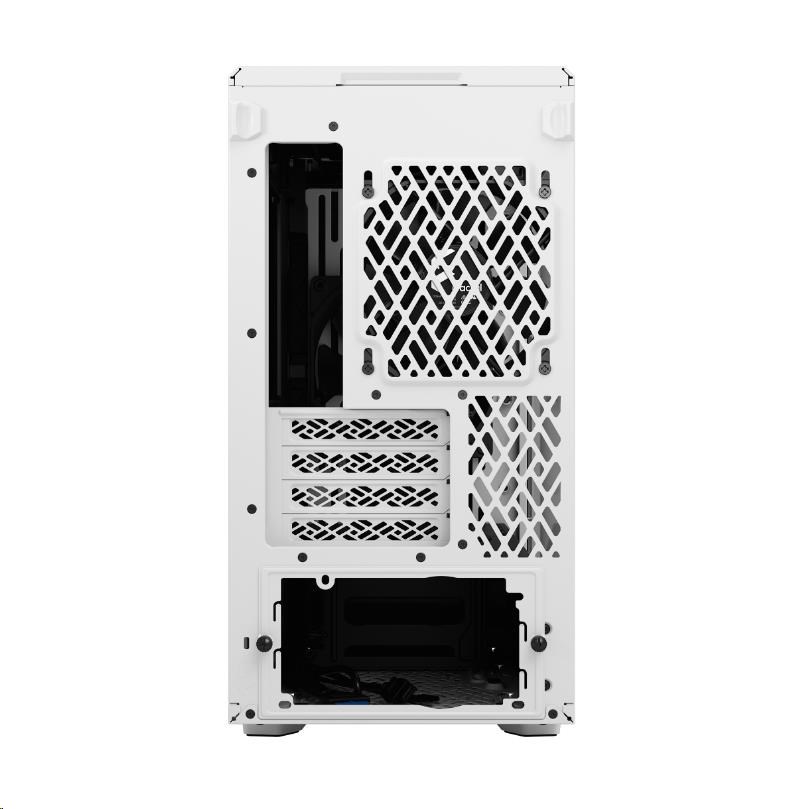

Rear fan 1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan 1x 120 mm (requires removal of HDD cage)
Dust filters Top, front and bottom
Cable routing space 15-25 mm
Cable routing grommets Yes
Fixed cable straps Yes
Tool-less push-to-lock Top, front and side panels
Captive thumbscrews HDD, SSD and, PSU brackets

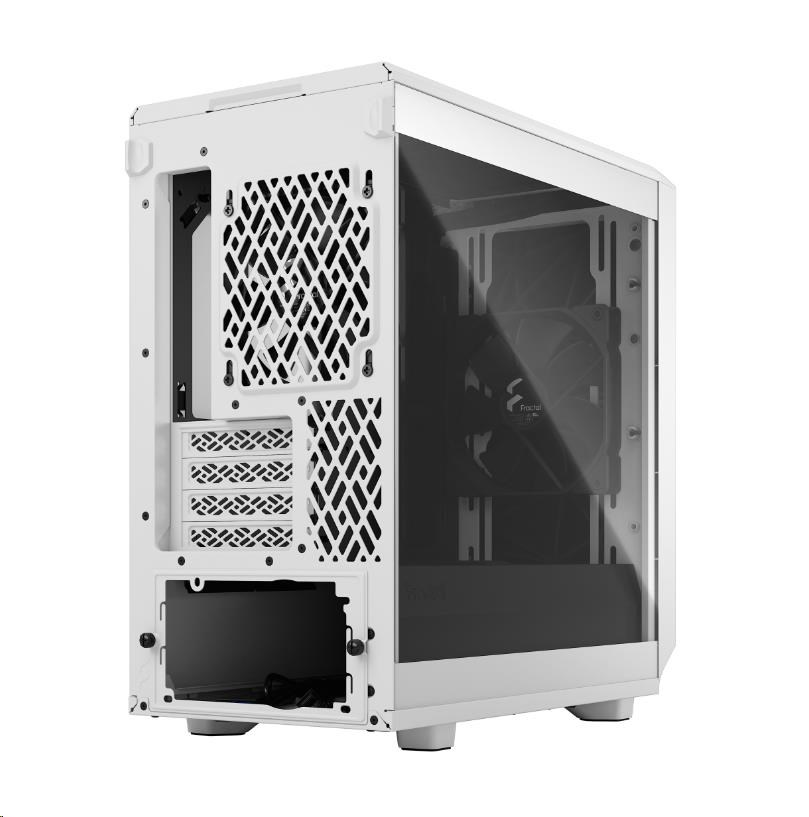

Left side panel Tempered glass

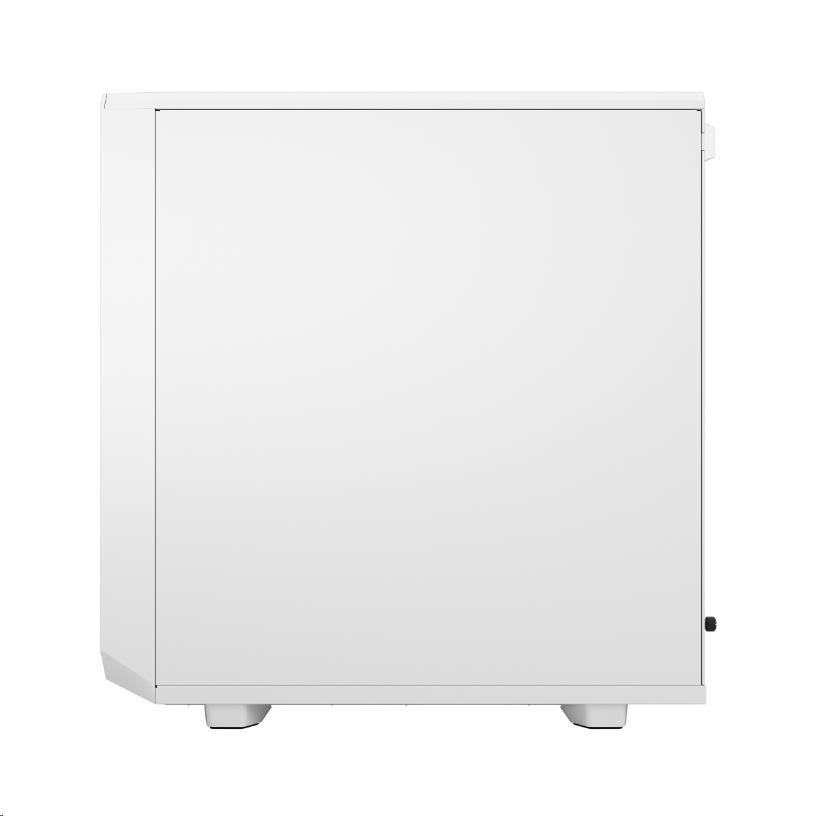

Right side panel Steel
Compatibility
Motherboard compatibility mATX / DTX / Mini-DTX / Mini ITX
Power supply type ATX
Front radiator Up to 240/280 mm
Top radiator Up to 240 mm
Rear radiator 120 mm
Bottom radiator 120 mm (without HDD Cage)
PSU max length 165 mm recommended with HDD cage (200 mm without HDD cage)
GPU max length 331 mm, 306 mm with front fan
CPU cooler max height 167 mm
Dimensions
Case dimensions (L x W x H) 396 x 205 x 406 mm
Case dimensions w/o feet/protrusions/screws 384 x 205 x 390 mm
Net weight 6,62 kg
Package dimensions (L x W x H) 457 x 277 x 462 mm
Gross weight 7,68 kg
