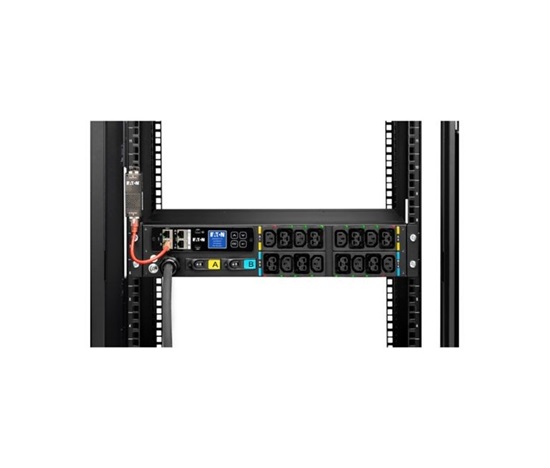

Eaton G4 Řízené Rack PDU, 2U, 32A, IEC60309 input, 3m cord, 1ph, 3.7 KW, 100-240V,16 outlets (8)C13, (8)C39

Podrobnosti

Specifications
Technical
Amperage Rating 32 A
Amperemeter Yes
Circuit breaker (2) single-pole
Color Black
Communication Yes
Cord length 3m
Electric current - max 32 A
Electrical connection Connecting cord with plug
Ethernet interface Yes
Evaluation At distance
Form factor 2U
Frequency rating 50/60 Hz
Input connection IEC-60309 32A 1Ph
Input voltage 200-240V / 346-415V
Mass configuration Yes
Material Steel & Aluminium
Mounting Dimension (metrical) 465.2
Mounting dimension (standardized) 482.6 mm (19 inch)
Mounting direction Horizontal
Number of miniature circuit breakers (MCB) 2
Number of outlets with earth pin 16
Number of outputs (other) 8
Number of Outputs C13 8
Operating Temperature 0° to 60°C (32° to 140°F)
Outlet control Yes
Outlets (8) C13, (8) C39
Over voltage category 2
Package contents Rack PDU|Rack mounting accessories|Quickstart guide|Safety Instructions
Phase Single-phase
Serial interface Yes
Series G4
SNMP Yes
Special features Remote Site Management|Versatile C39 outlet supports C14 or C20 power cord plug|High retention outlets designed to securely fit standard power cords and support P-Lock power cords|Cybersecurity standards UL 2900-1 and IEC 62443-4-2|Hot-Swap network control module |Network Cascading, connect up to 32 PDUs via network loop|Power sharing between two network modules PDUs ensures constant access to PDU data & sensors|1% IEC Class 1 billing grade measurement accurancy |Gigabit network card with 2x Gb ports|Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS|Optional sensor Temperature/Humidity | PDU energy consumption | Outlet control on/off | reboot and sequential start-up
Switchable Yes
Type Managed Rack PDU
With surge protection module No
Product Dimensions
Length 175 MM
Width 444.5 MM
Height 88.3 MM
Volume 6.869 DMQ
Weight 5.05 KG
Packaging Details
Length 280 MM
Width 380 MM
Height 308 MM
Weight 5.4 KG
Product Numbers
UPC Number : 3553340697562
EAN Number : 3553340697562
Country of Origin : MA
Certifications
CE
Cm
EAC
EN 61000-3-2
EN 61000-3-3
EN IEC 63000
IEC 62368-1
IEC/EN 61000-6-2
IEC/EN 61000-6-4
Ukr
