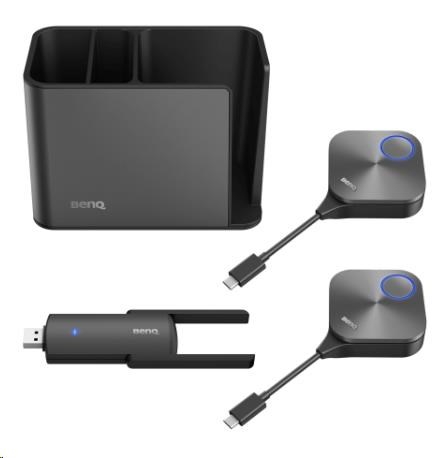

BENQ InstaShare - Combo set TZY31
Podrobnosti

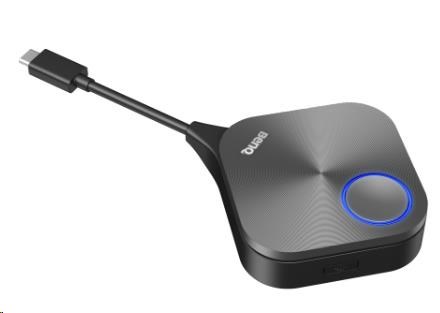

InstaShare Button
Color
Silver
Wireless Transmission Frame Rate
Up to 60 fps depending on environment (1080P60/4K30P)
TX Button Input resolution
Up to 4K30P
Audio Rate
Stereo, Radio quality 16bits 48KHz
Wi-Fi Standard
IEEE 802.11ac 5GHz, 2T2R MIMO
Authentication protocol
Wi-Fi Standard
Wireless Security (Encryption)
WPA2/3 Personal/WPA2 Enterprise Support AES-256
Wireless Coverage Reach
Max. 15 m (Between Button and IFP)
Cable
USB Type C
Power Supply
DC 5V±10%, Minimum 0.9A
Power Consumption
Max 4.5W Full Loading
Dimension (WxHxD)
67mm x 67mm x23.2mm
Temperature range
Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Humidity range
Operating: 10% to 80% relative humidity
Storage: 5% to 90% relative humidity (non-condensing)
Storage: 5% to 90% relative humidity (non-condensing)
Compatibility
1. RM03 series (with USB Type-C)
2. RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K series, and VC01A (with USB Type-C to USB Type-A adapter)
2. RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K series, and VC01A (with USB Type-C to USB Type-A adapter)
BenQ Wireless USB Dongle
Color
Black
Wi-Fi Standard
802.11 a/b/g/n/ac
Interface
USB 3.0
Wi-Fi band
Dual Band 2.4GHz / 5GHz
MU-MIMO
Yes
Wi-Fi Performance
2.4 GHz Band: up to 400 Mbps?
5 GHz Band: up to 867 Mbps
5 GHz Band: up to 867 Mbps
External Antenna
2
Supported OS
Android
Wireless Coverage Reach
Max. 15 m (Between Dongle and IFP)
Security
WPA-PSK/WPA2-PSK WPA/WPA2/WEP
Power Supply
DC 5V, 0.9A (Maximum)
Dimension L*H*W
137 x 41 x 12 mm
Net Weight
0.055kg
Temperature range
Operation : 0?~40?
Storage : -40?~70?
Storage : -40?~70?
Humidity range
Operation: 10%~90%
Storage: 5%~90%
Storage: 5%~90%
Compatibility
RM6503, RM7503, RM8603
RP6502, RP7502, RP8602
RE6501, RE7501, RE8601, RE9801
RM6502K, RM7502K, RM8602K
RM6502S, RM7502S, RM8602S
CP6501K, CP8601K
CS6501, CS7501, CS8601
SL5502K, SL6502K, SL7502K, SL8502K
ST4302, ST5502, ST6502, ST7502, ST8602
IL4301, IL5501
BH2401, BH2401T, BH2801, BH2801N, BH3501, BH3501T, BH3801, BH3801D, BH3801N
VC01A
RP6502, RP7502, RP8602
RE6501, RE7501, RE8601, RE9801
RM6502K, RM7502K, RM8602K
RM6502S, RM7502S, RM8602S
CP6501K, CP8601K
CS6501, CS7501, CS8601
SL5502K, SL6502K, SL7502K, SL8502K
ST4302, ST5502, ST6502, ST7502, ST8602
IL4301, IL5501
BH2401, BH2401T, BH2801, BH2801N, BH3501, BH3501T, BH3801, BH3801D, BH3801N
VC01A

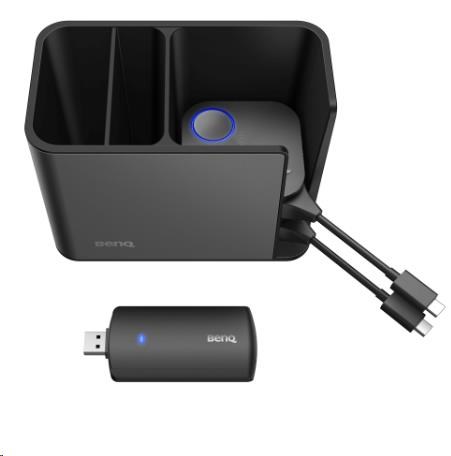

BenQ InstaShare Dock
Color
Black
Weight (Net)
420g
Dimension L*H*W
150 x 85 x 106 mm
InstaShare Button Loading quantity
4 pcs
Product material
PC+ABS & Aluminum alloy 6063 & Silica gel
