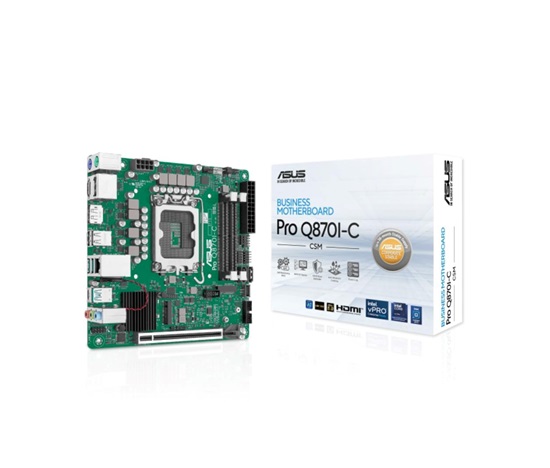

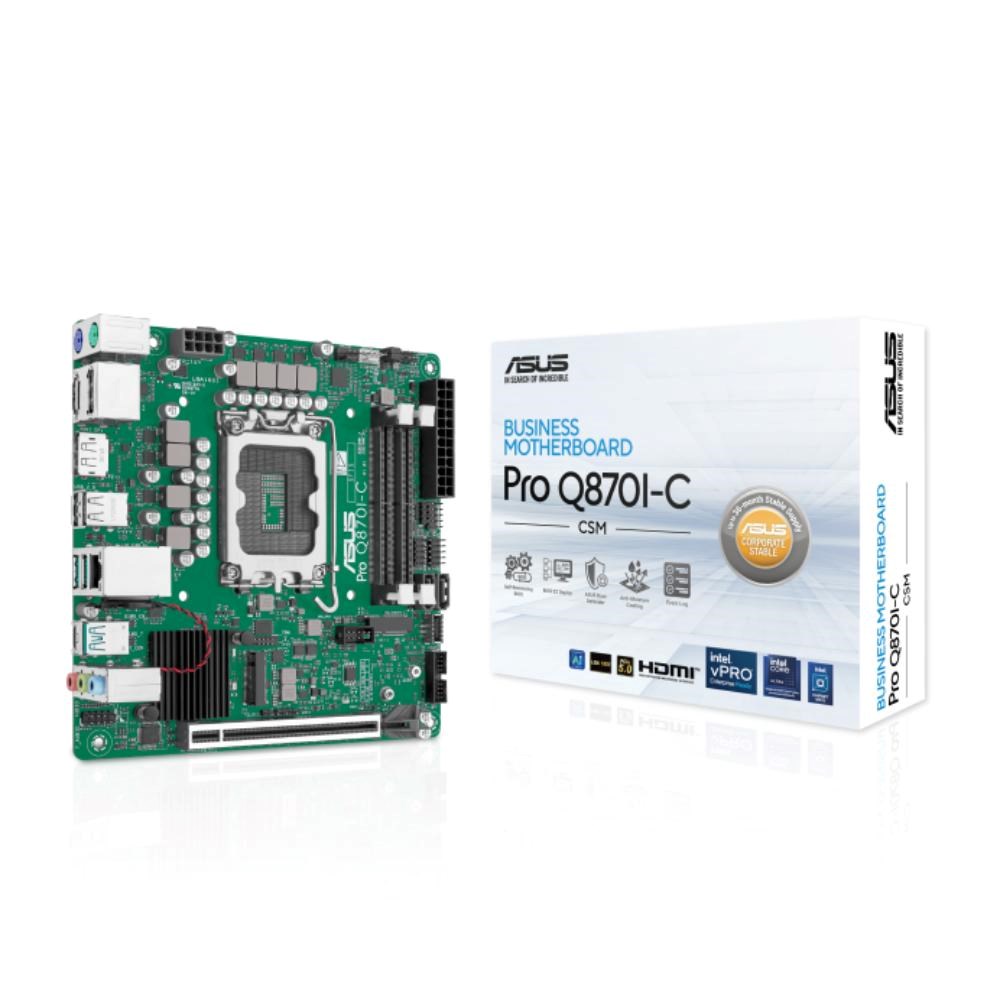

ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX

Novinka
ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX
ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX
ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX
ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX
ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX
ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX

Formát základní desky:micro ATX; Chipset:Intel Q870; Socket (patice):Socket 1851; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:2; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:2; HDMI:1; VGA:0; DVI:0

Vaše cena:
Dostupnost: Skladem 10 ks
Kód:
1887831
P/N:
90MB1MPP-M0EAYC
Záruka:
36 Měsíc(ů)
Výrobce:
Asus
Zástupce v EU:
EAN:
4711636208857
Porovnat produkt

Podrobnosti

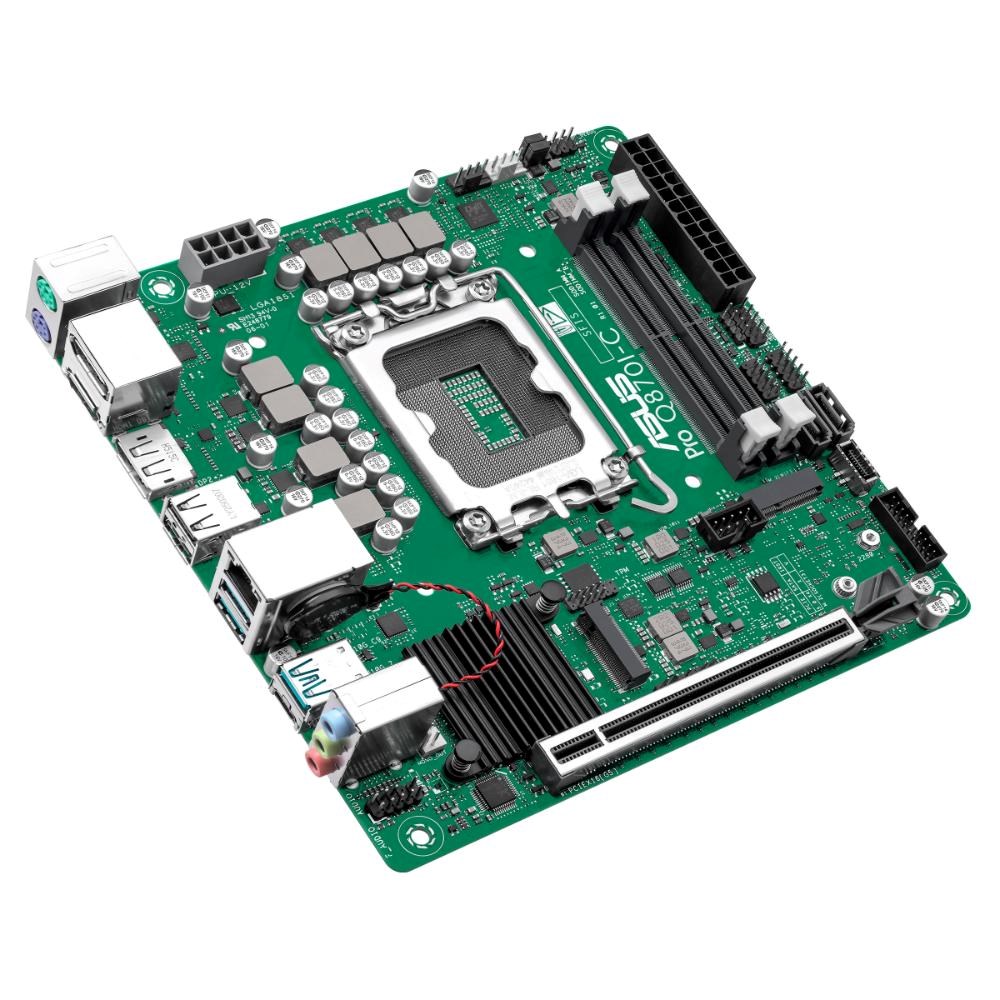

ASUS Pro Q870I-C-CSM

  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
  • ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
  • DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers





CPU



  • Supports Intel® Core™ Ultra Processors (Series 2), LGA1851

  • Supports Intel® Turbo Boost Technology 2.0

  • Supports Intel® Turbo Boost Max Technology 3.0

  • CPU supports up to 65W

  • Turbo Boost Max Technology 3.0 support depends on CPU type





Chipset


Intel® Q870 Chipset





Memory



  • 2 × SO-DIMM slots, max. 128GB

  • DDR5 up to 6400 MT/s

  • Non-ECC, Un-buffered, Clocked SO-DIMM

  • Dual channel memory architecture

  • Supports Intel® Extreme Memory Profile (XMP)

  • On-Die ECC supported (Non-ECC DDR5)





Graphics



  • 2 × DisplayPort (up to 4K @ 60Hz)

  • 1 × HDMI™ (up to 4K @ 60Hz)

  • Graphics output depends on CPU





Expansion Slots



  • 1 × PCIe 5.0 x16 slot





Storage



  • 1 × M.2 slot (Key M, 2280, PCIe 5.0 x4)

  • 2 × SATA 6Gb/s ports





Ethernet



  • Intel® I219LM 1Gb Ethernet

  • ASUS LANGuard





Wireless & Bluetooth



  • M.2 2230 slot (Key E, CNVi & PCIe)

  • Wi-Fi module sold separately

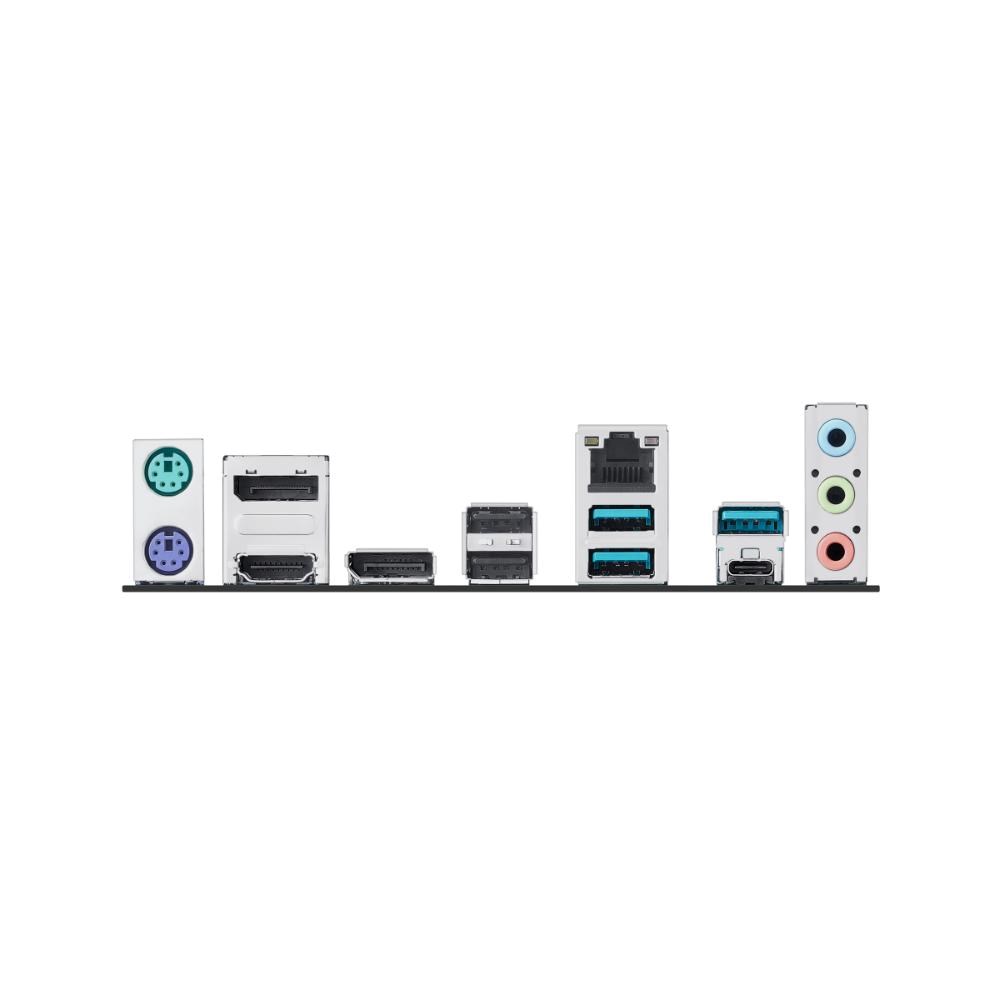

USB


Rear USB



  • 1 × USB 10Gbps Type-C®

  • 3 × USB 10Gbps Type-A

  • 2 × USB 2.0 Type-A



Front USB



  • 1 × USB 10Gbps Type-C® connector

  • 1 × USB 5Gbps header (supports 2 ports)

  • 1 × USB 2.0 header (supports 2 ports)





Audio



  • Realtek 7.1 Surround Sound HD Audio CODEC

  • Up to 24-bit / 192 kHz playback





Form Factor


Mini-ITX (17 × 17 cm)




Technické parametry
