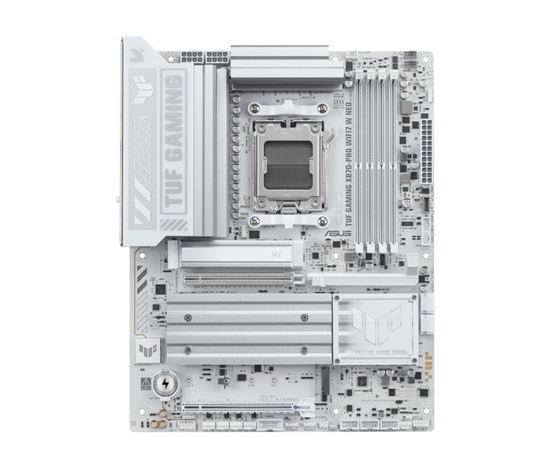

ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI

Novinka
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI
Vaše cena:
Dostupnost: Skladem 8 ks
Kód:
1887847
P/N:
90MB1NY0-M0EAY0
Záruka:
36 Měsíc(ů)
Výrobce:
Asus
Zástupce v EU:
ASUS COMPUTER GmbH
EAN:
4711636425247
Porovnat produkt

Podrobnosti

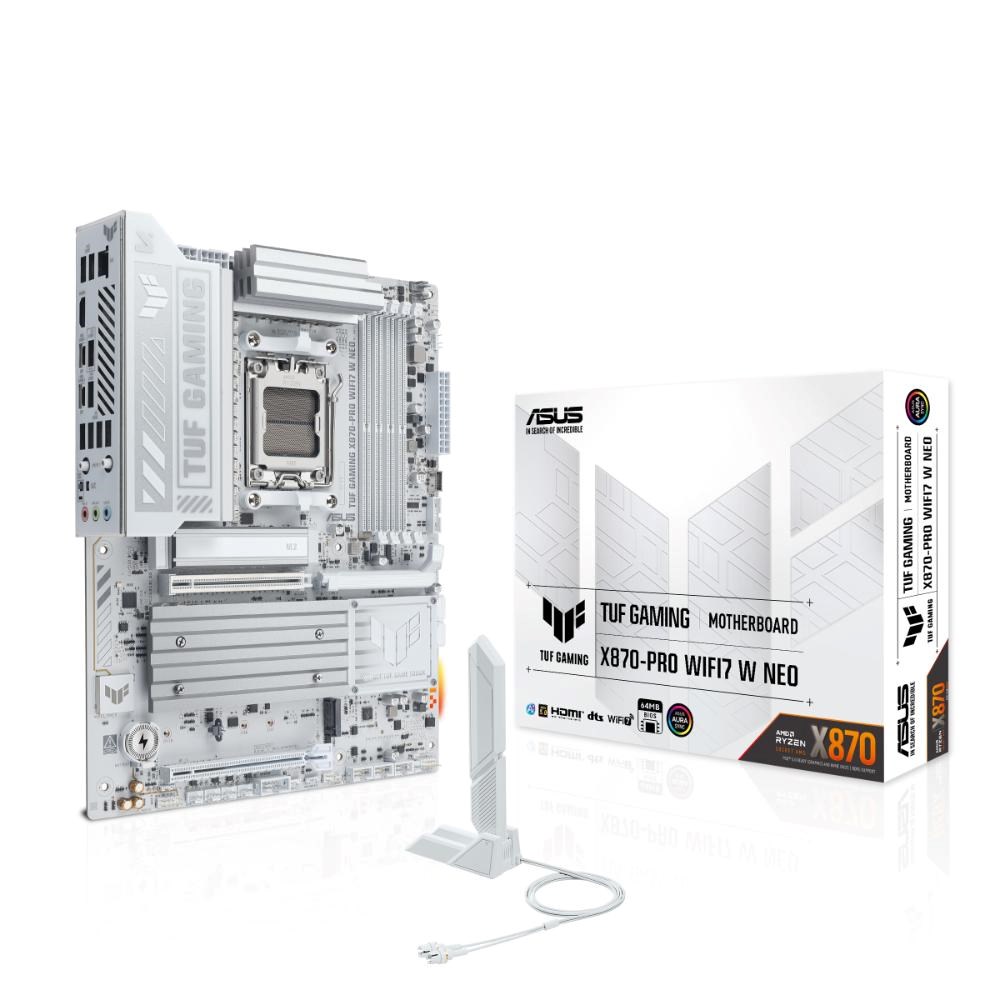

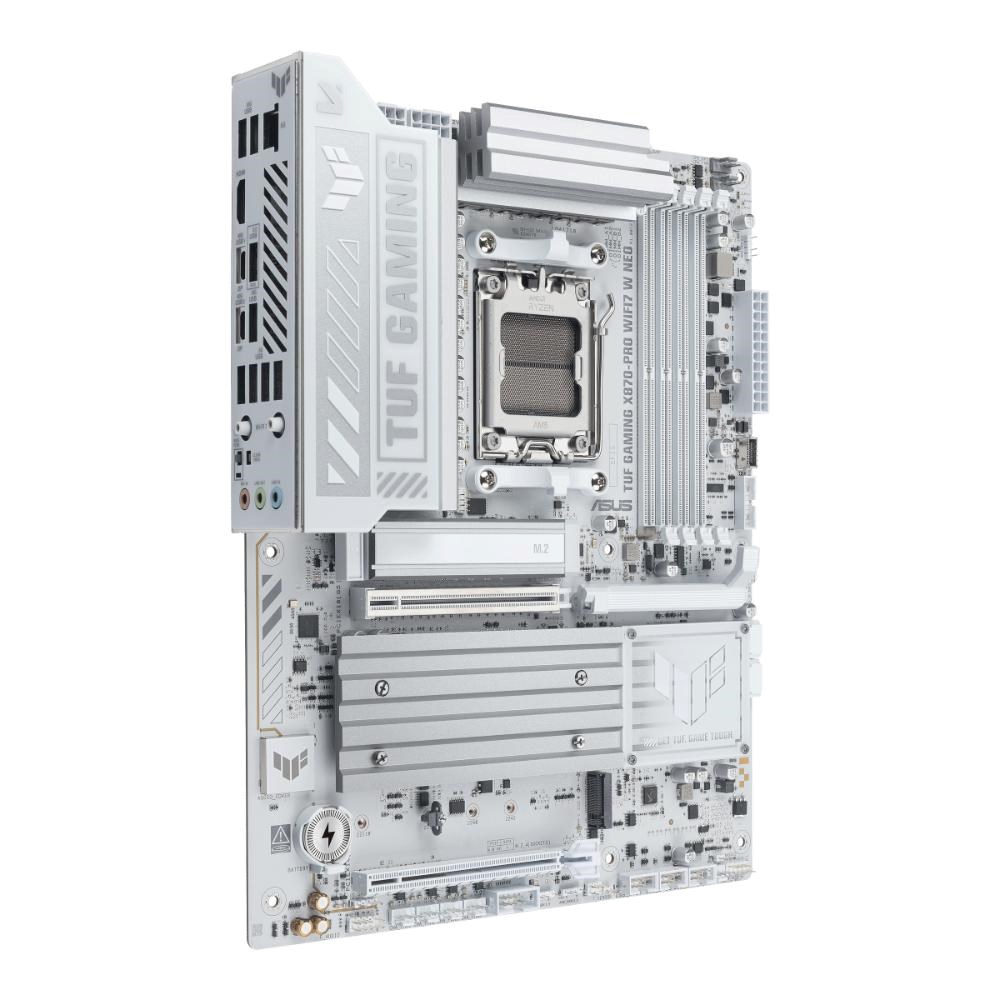

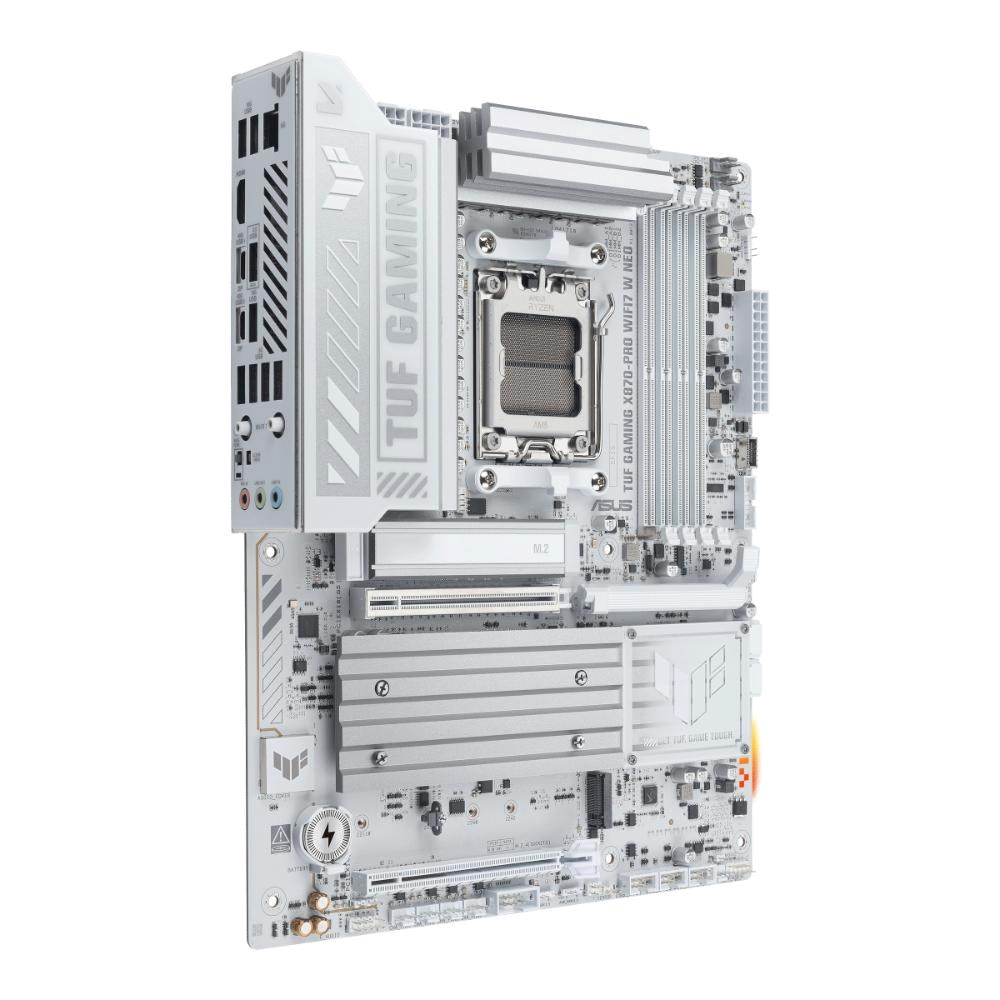

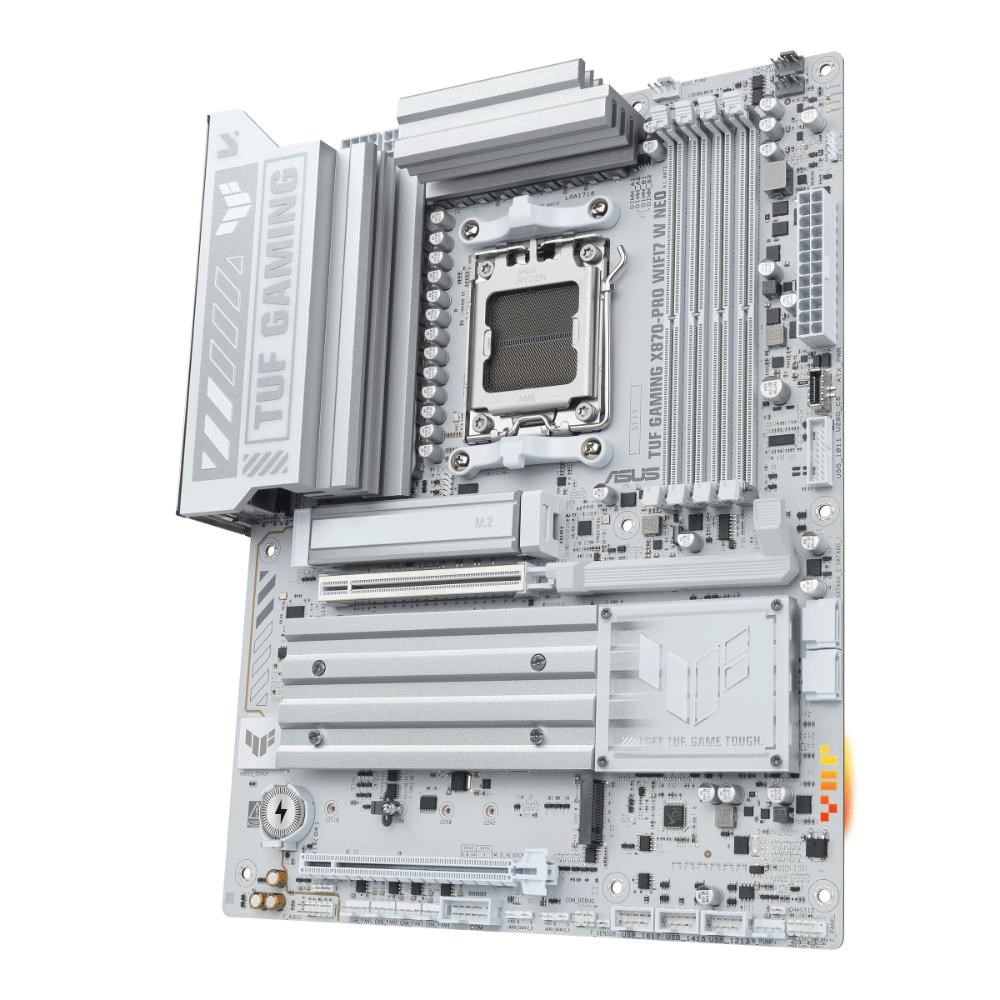

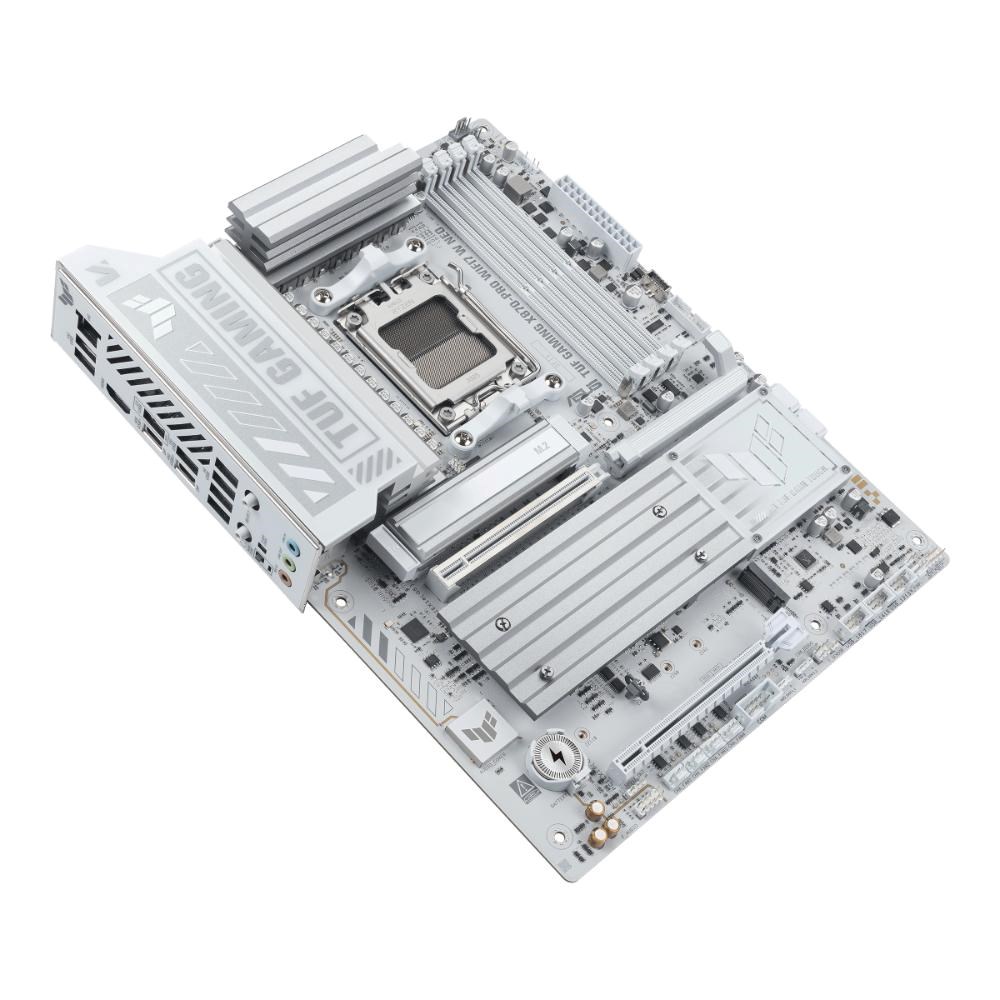

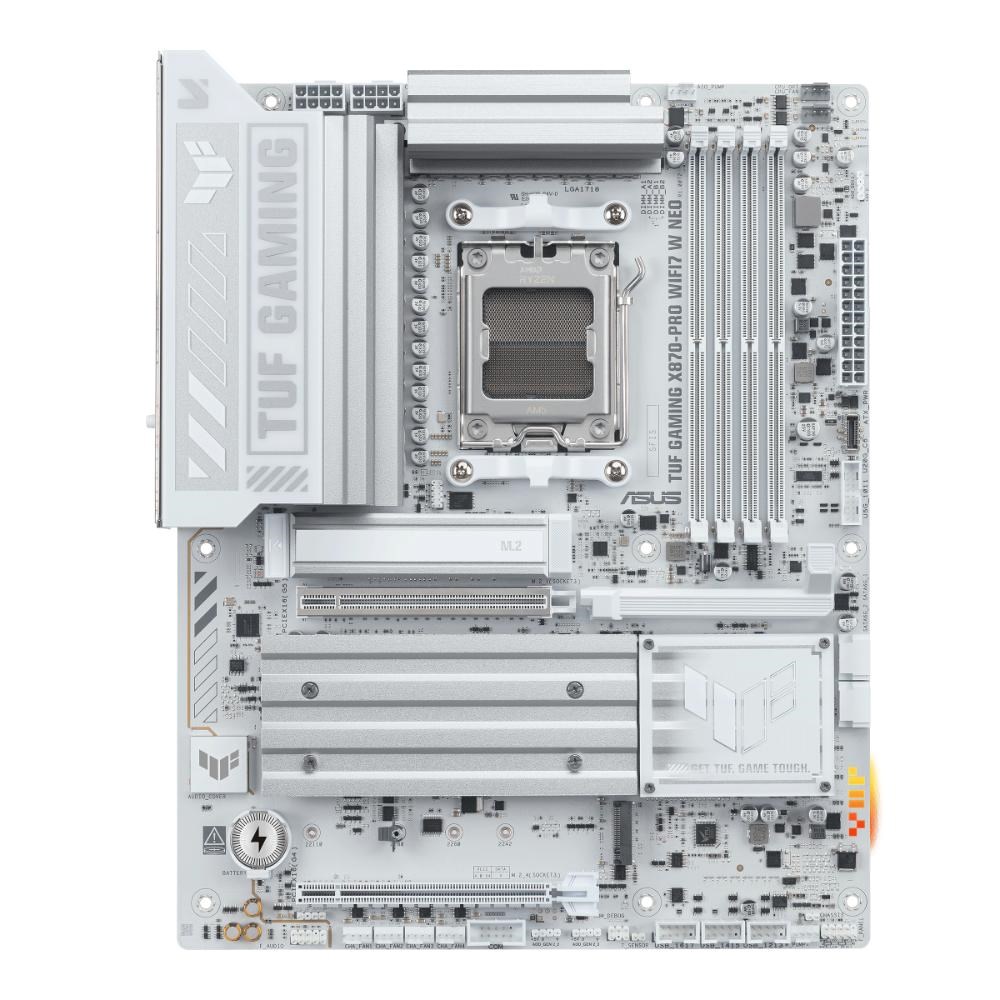

ASUS TUF GAMING X870-PRO WIFI7 W NEO

ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
AMD X870 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,
9600+MT/s(OC)*/9000+MT/s(OC)** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM***
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For profile settings visit https://rog.asus.com/support/faq/1042256/.
*** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
*** Supported memory types, data rate and number of DRAM modules vary depending on the CPU and memory configuration.

Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
*** Slot shares bandwidth with M.2_4 slot.

Storage
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports

RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet
1 x Realtek® 5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 7 (Realtek® RTL8922AE)
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4 (supports LE Audio)

USB
Rear USB total 10 ports
Front USB total 9 ports
USB Type-C® power delivery supported

Audio
Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Supports up to 32-Bit/192 kHz playback
Audio Shielding, premium capacitors, dedicated PCB layers

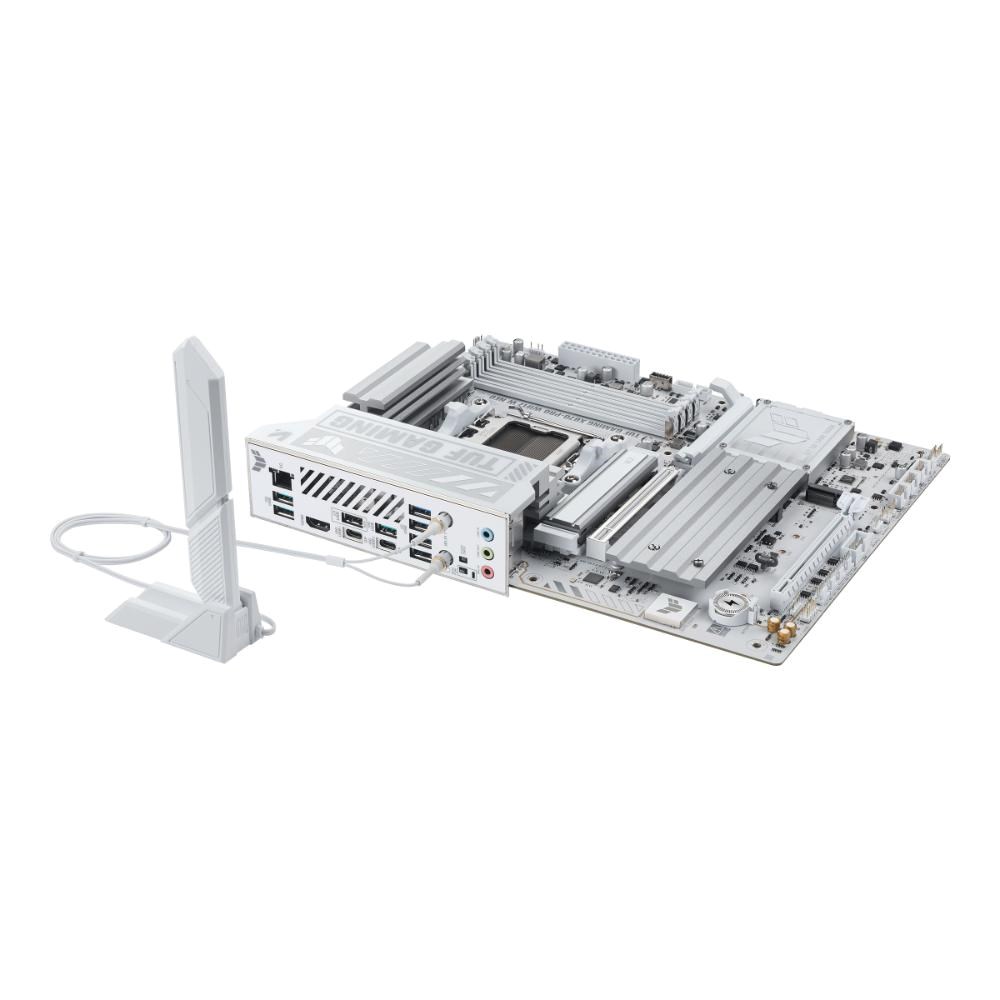

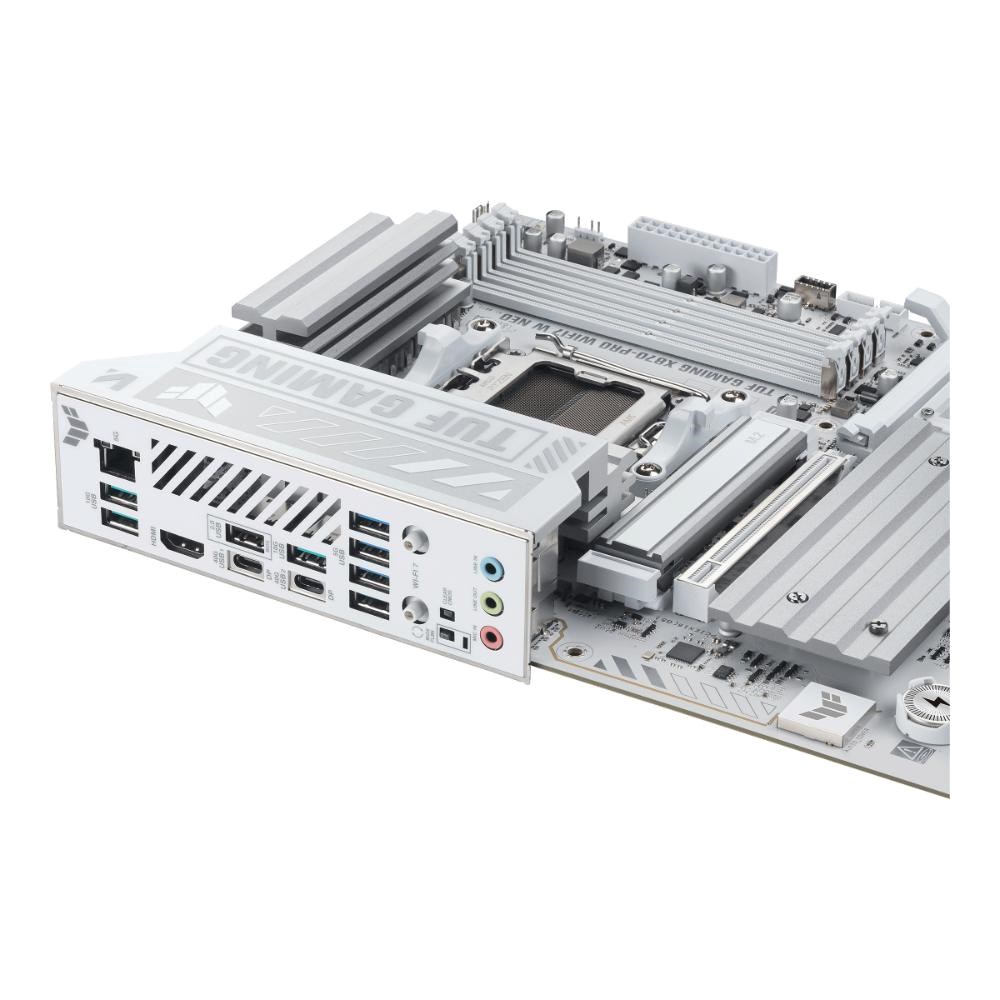

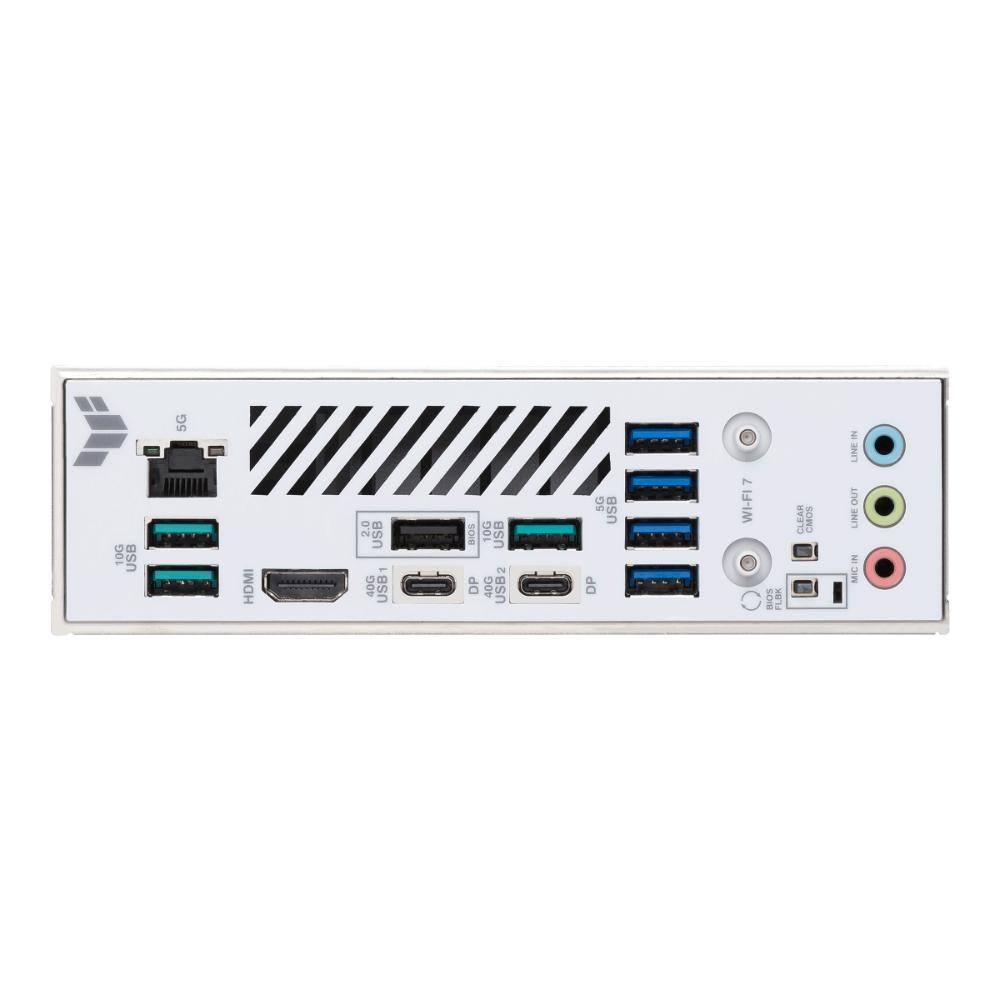

Back Panel I/O Ports
USB4®, USB 10Gbps, USB 5Gbps, USB 2.0, HDMI™, Wi-Fi module, Ethernet, Audio jacks, BIOS FlashBack™, Clear CMOS

Internal I/O Connectors
Fan headers, power connectors, M.2 slots, SATA ports, USB headers, RGB headers, front panel headers

Special Features
ASUS TUF PROTECTION
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync
Front Panel USB 20Gbps with PD Fast Charge Support

Software Features
Armoury Crate
ASUS DriverHub
DTS Audio Processing
Adobe Creative Cloud Trial
UEFI BIOS features

BIOS
64MB Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

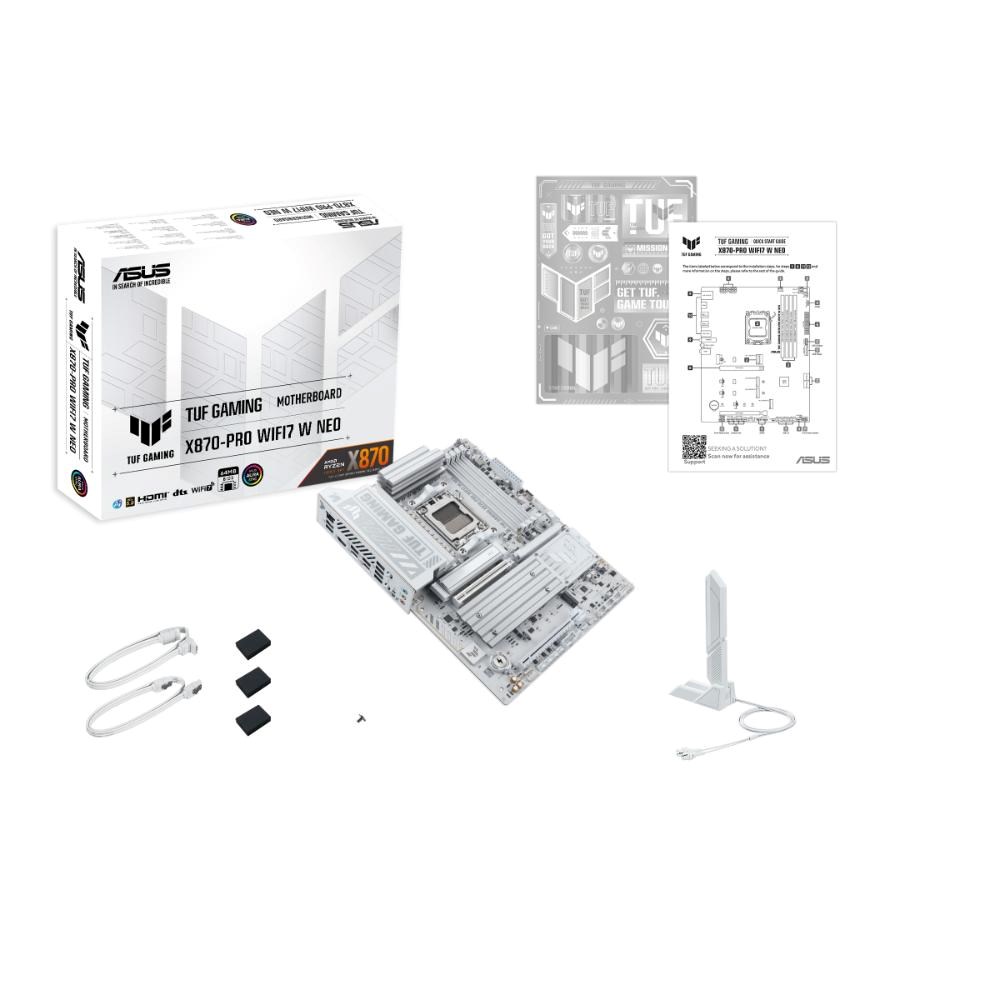

Accessories
2 x SATA cables
WiFi Q-Antenna
TUF Gaming sticker
M.2 accessories
Quick start guide

Operating System
Windows 11

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
