ASUS MB Sc AM4 PRIME A520M-K ARGB, AMD A520, 2xDDR4, 1xHDMI, 1xD-Sub, mATX

ASUS MB Sc AM4 PRIME A520M-K ARGB, AMD A520, 2xDDR4, 1xHDMI, 1xD-Sub, mATX
ASUS MB Sc AM4 PRIME A520M-K ARGB, AMD A520, 2xDDR4, 1xHDMI, 1xD-Sub, mATX
ASUS MB Sc AM4 PRIME A520M-K ARGB, AMD A520, 2xDDR4, 1xHDMI, 1xD-Sub, mATX
ASUS MB Sc AM4 PRIME A520M-K ARGB, AMD A520, 2xDDR4, 1xHDMI, 1xD-Sub, mATX
ASUS MB Sc AM4 PRIME A520M-K ARGB, AMD A520, 2xDDR4, 1xHDMI, 1xD-Sub, mATX
Vaše cena:
Dostupnost: Skladem 99 ks
Kód:
1887902
P/N:
90MB1R00-M0EAY0
Záruka:
36 Měsíc(ů)
Výrobce:
Asus
Zástupce v EU:
ASUS COMPUTER GmbH
EAN:
4711636596107
Porovnat produkt

Podrobnosti

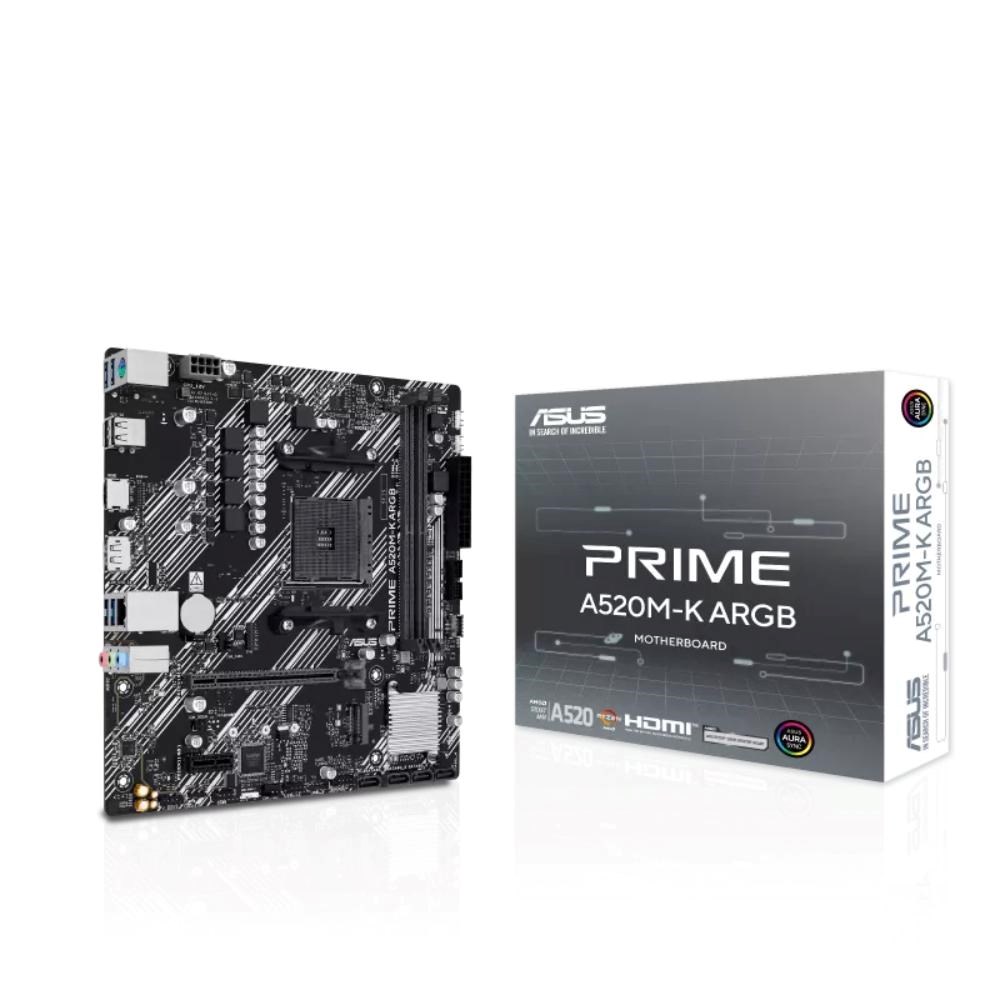

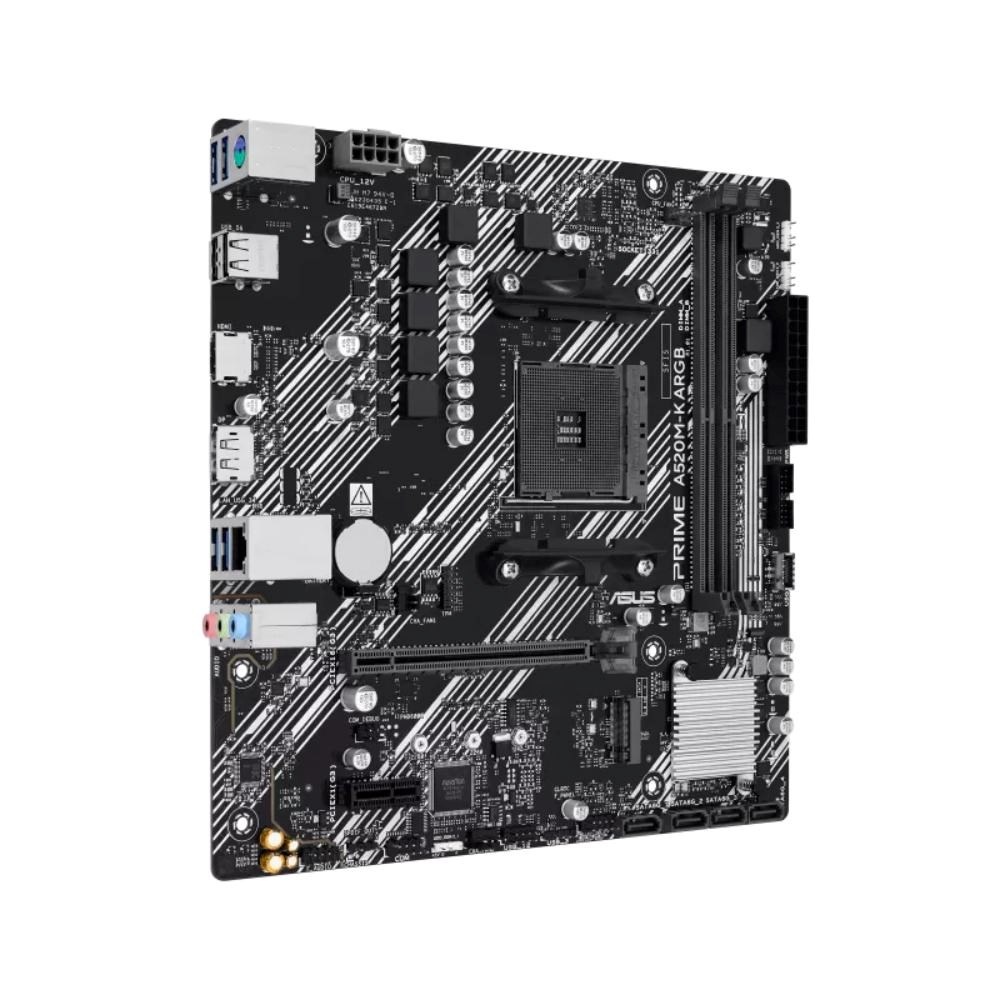

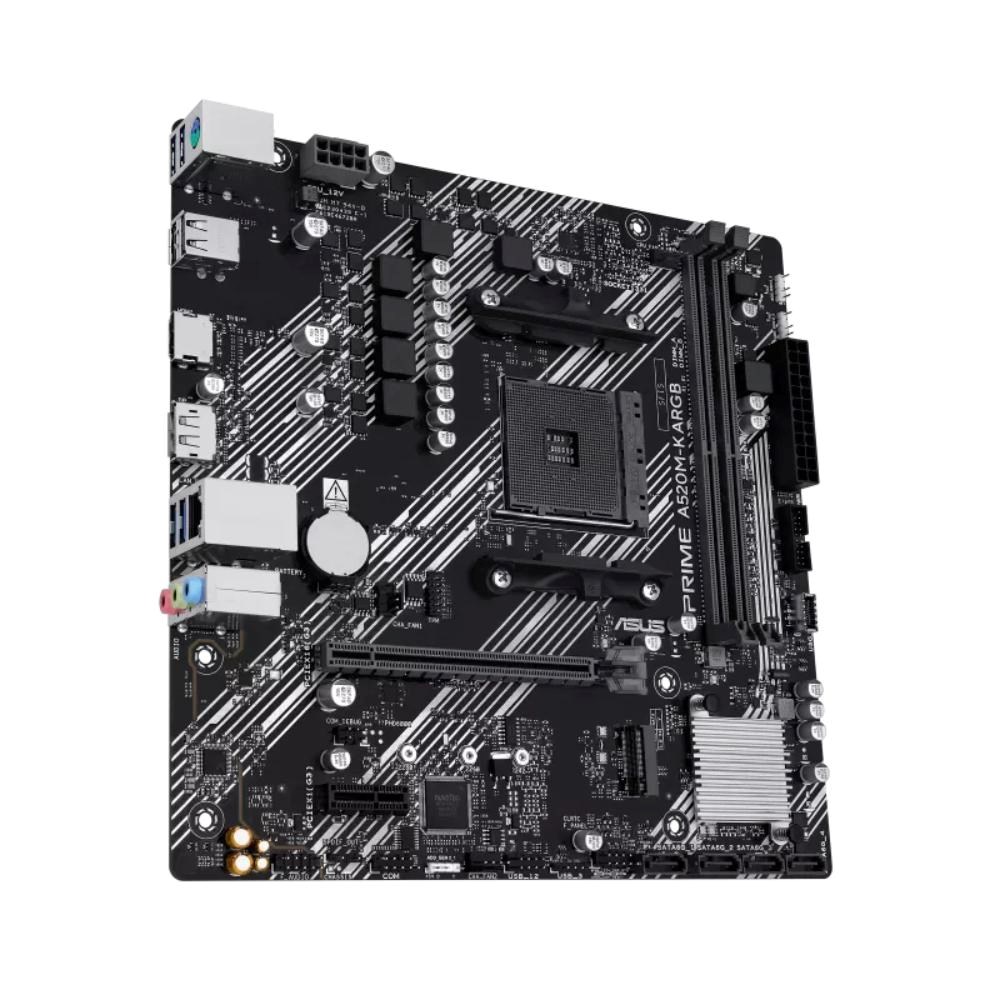

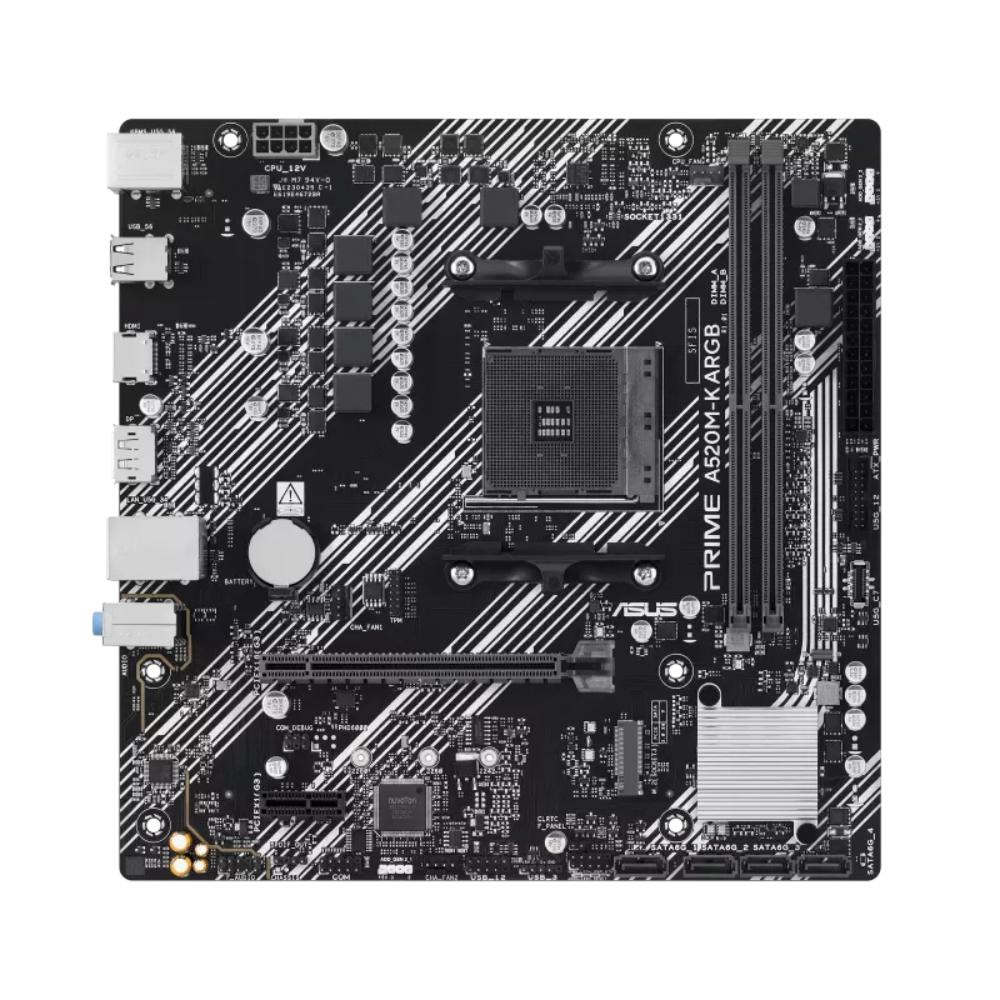

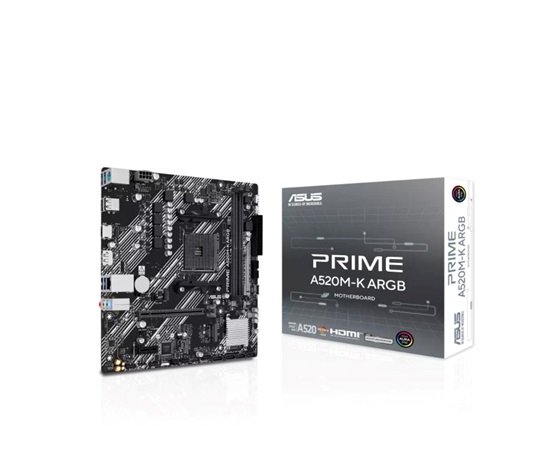

PRIME A520M-K ARGB

AMD A520 (Ryzen AM4) micro-ATX motherboard with ARGB support, M.2 slot, 1 Gb Ethernet, HDMI/DisplayPort, SATA 6 Gbps, USB 5Gbps Type-C®, and Aura Sync

  • CPU: AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
  • Cooling: Fan Xpert, Aluminum heatsink
  • Connectivity: PCIe 3.0, M.2 slot, 1 Gb Ethernet, USB 5Gbps Type-C®
  • Aura Sync: 3 x Addressable RGB Gen 2 headers



TECHNICAL SPECIFICATIONS

CPU AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset AMD A520
Memory 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4400(O.C)/4000(O.C)/3200/3000/2666/2400/2133 MHz, Dual Channel, Un-buffered Memory
Graphic 1 x DisplayPort 1.4, 1 x HDMI™ 2.1
Expansion Slots 1 x PCIe 3.0 x16 slot (supports x16 mode), 1 x PCIe 3.0 x1 slot
Storage 1 x M.2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek® 1Gb Ethernet, ASUS LANGuard
USB Rear: 4 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A)
Front: 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports)
Audio Realtek® 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium audio capacitors

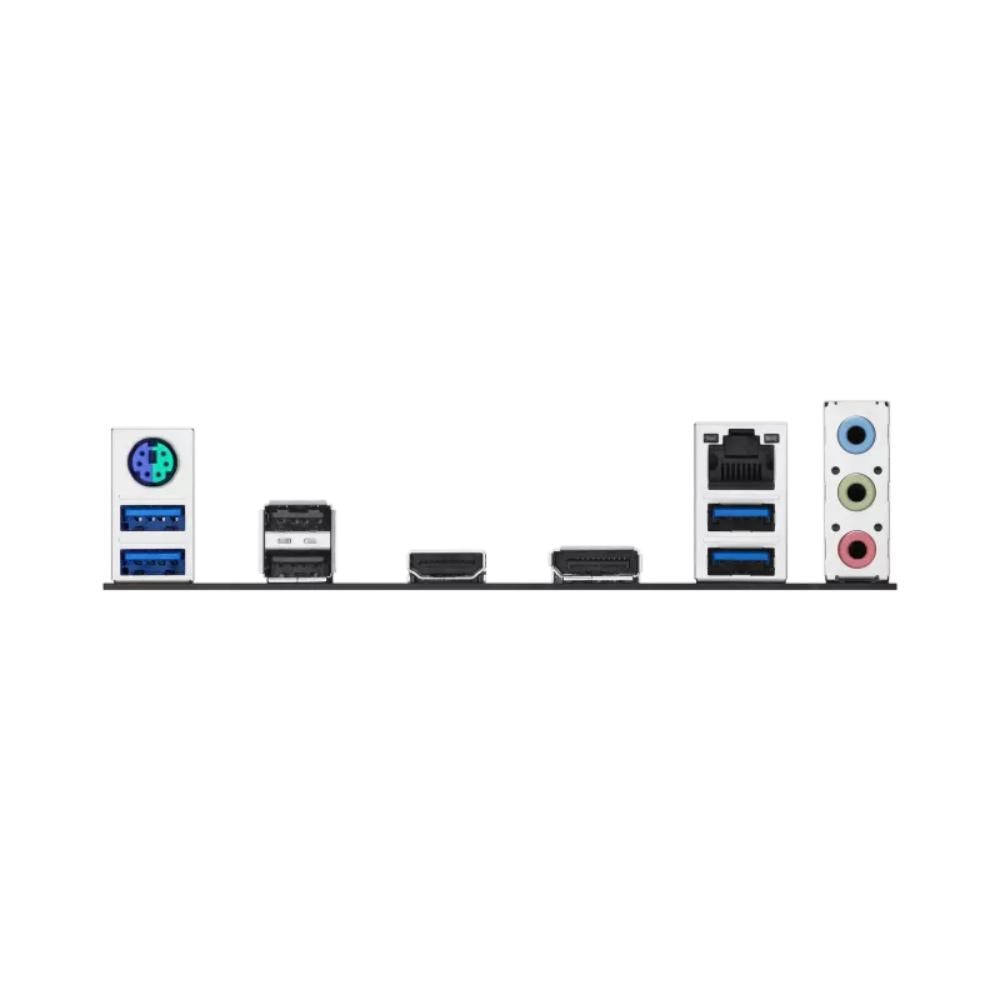

Back I/O Ports 4 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x Ethernet, 3 x Audio jacks, 1 x PS/2 combo
Internal I/O 3 x Addressable RGB Gen 2 headers, 1 x USB 5Gbps (Type-C®), USB headers, 1 x M.2, 4 x SATA, Fan headers, 24-pin/8-pin power, Clear CMOS, COM, S/PDIF
Special Features ASUS 5X PROTECTION III, Q-Design (Q-DIMM, Q-LED Core, Q-Slot), Aura Sync
Software Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub, UEFI BIOS
BIOS 16MB (128Mb) Flash ROM, UEFI AMI BIOS
OS Windows 11, Windows 10 64-bit
Form Factor micro-ATX, 8.9 inch x 8.9 inch (22.6 cm x 22.6 cm)
