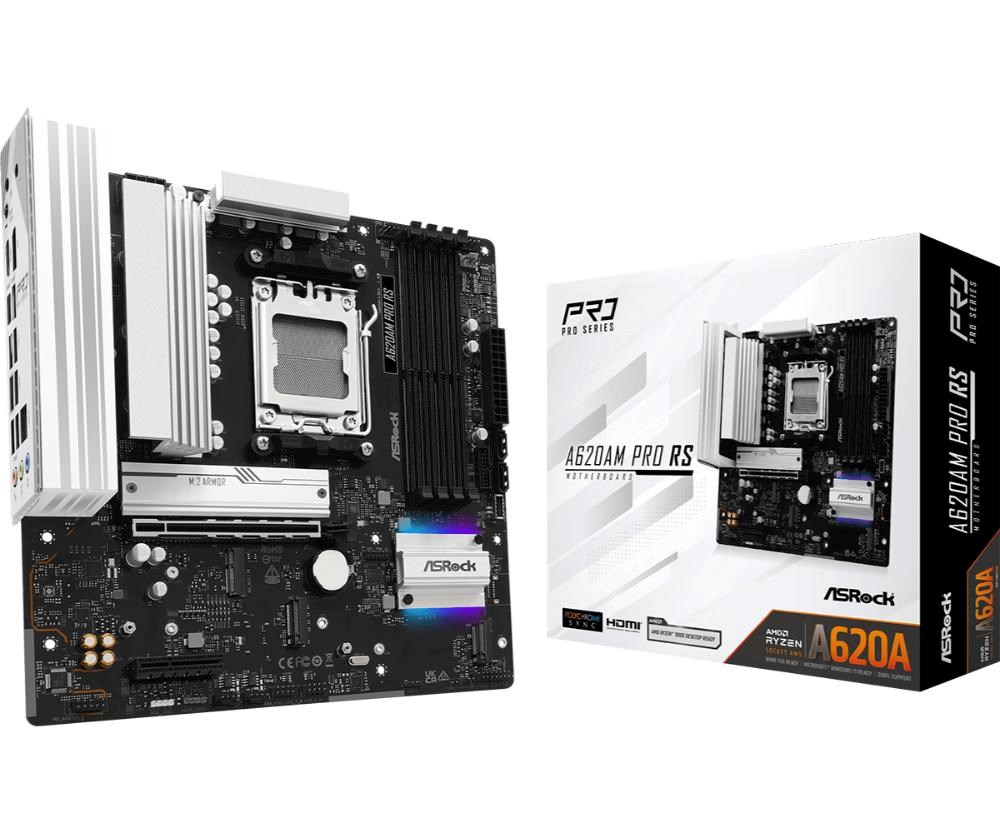

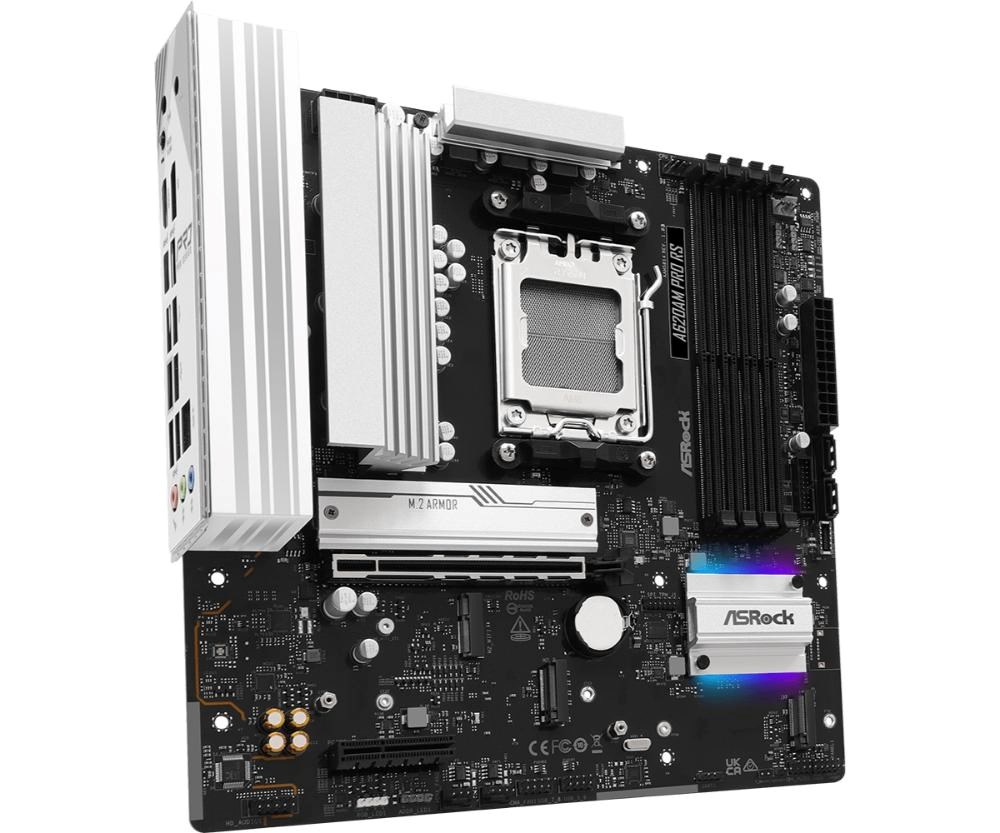

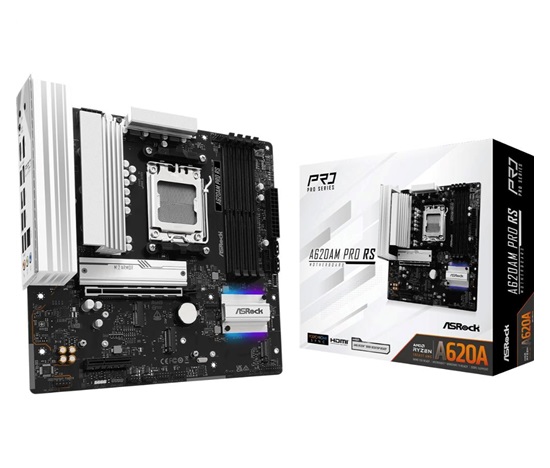

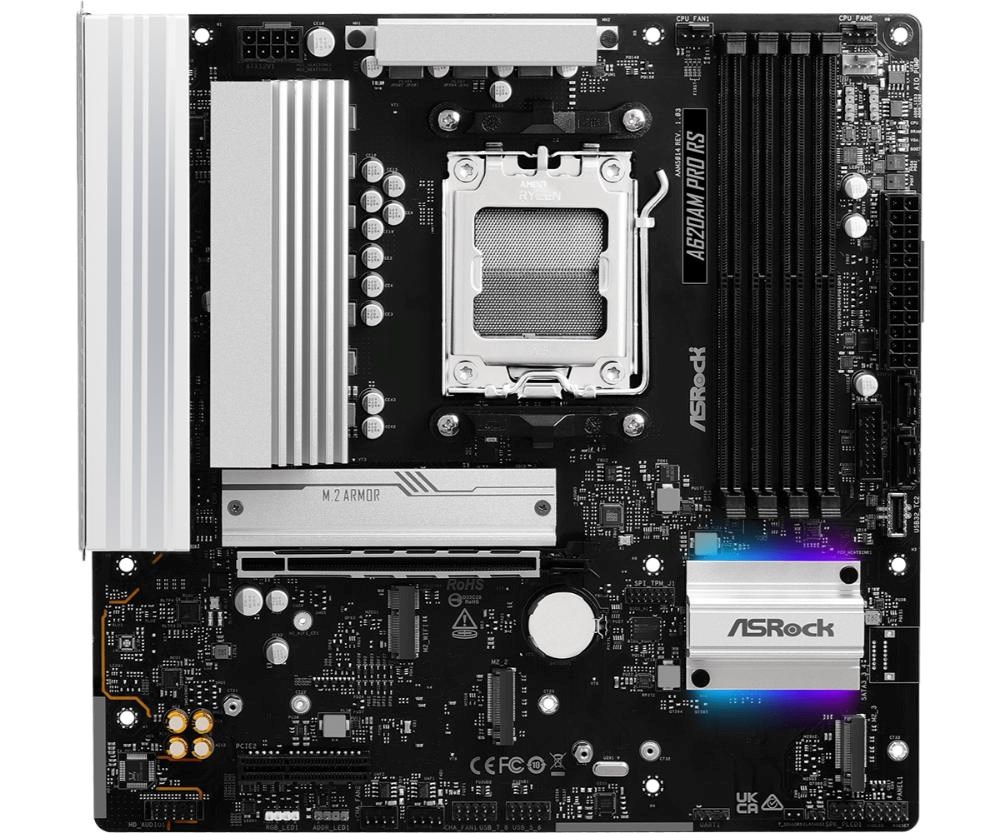

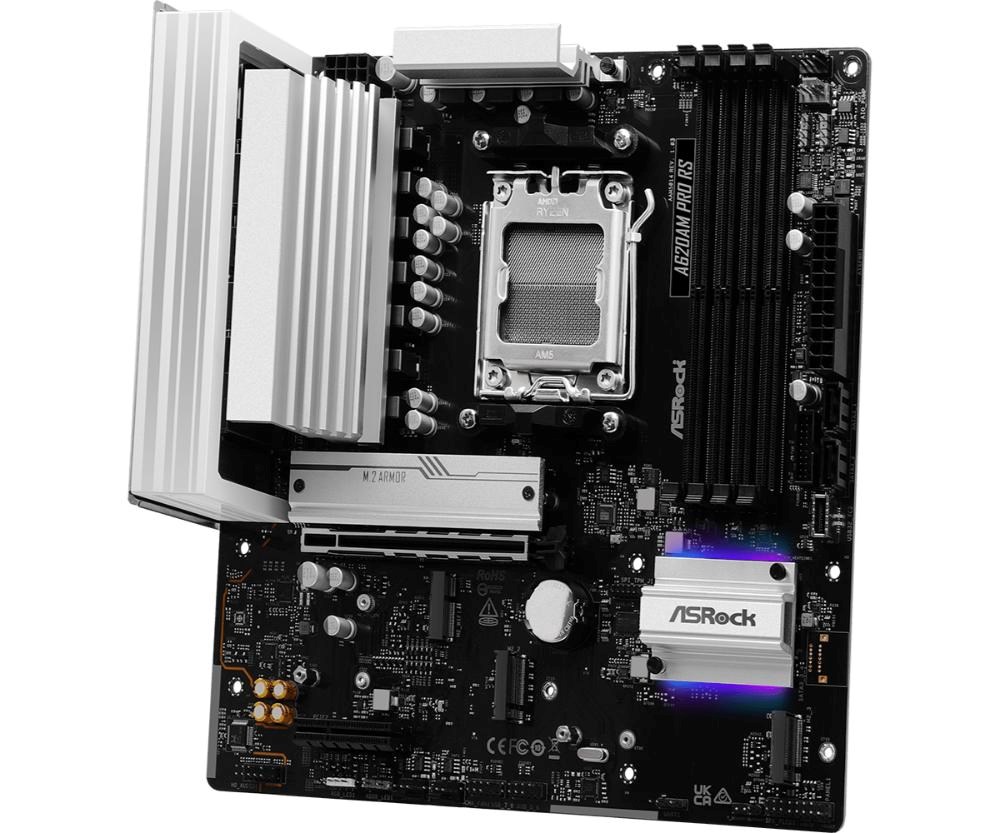

ASRock MB Sc AM5 A620AM PRO RS, AMD X620A, 4xDDR5, 1xHDMI, 1xDP

Unique Feature

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+2+1 Power Phase, Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

- AMD A620A

Memory

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Expansion Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Expansion Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
* Supports NVMe SSD as boot disks

Storage

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Internal I/O Connectorss
* Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10

USB

CPU:
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection

Internal I/O Connectors

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Internal I/O Connectors (4-pin)***
- 1 x CPU/Water Pump Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Internal I/O Connectorss (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Internal I/O Connectors
- 1 x 8 pin 12V Power Internal I/O Connectors (Hi-Density Power Internal I/O Connectors)
- 1 x Front Panel Audio Internal I/O Connectors
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

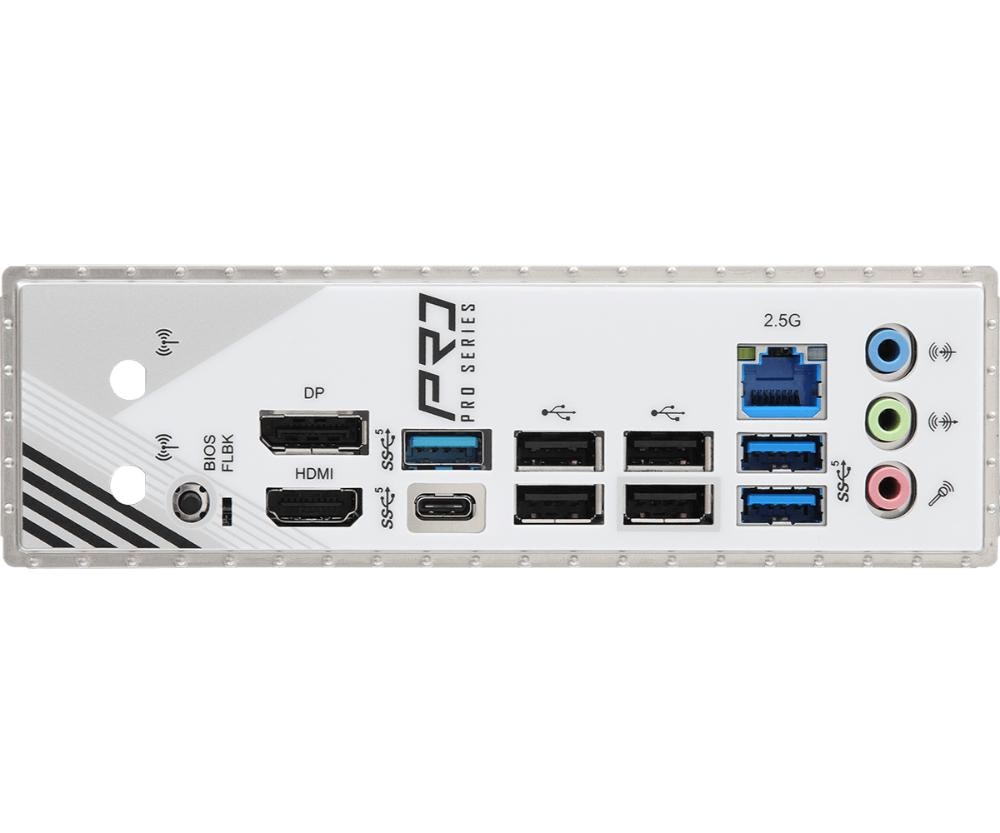

Back Panel I/O Ports

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
