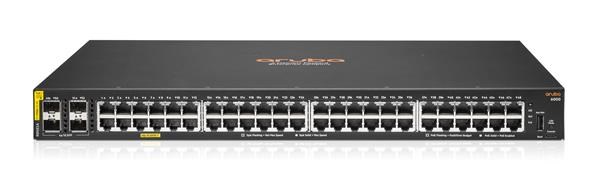

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

Promoakce
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L2; Technologie:Gigabit Ethernet 1000Mbps; PoE budget (W):370; Počet SFP portů:4; Počet SFP portů:4; Maximální počet portů:48; PoE budget (W):370; Přenosová rychlost LAN (Mb/s):920; Maximální počet portů:48; Management:SNMP/RMON

Vaše cena:
Dostupnost: Skladem 10 ks
Kód:
1881197
P/N:
R8N85A#ABB
Záruka:
24 Doživotní
Výrobce:
Hewlett Packard Enterprise
Zástupce v EU:
EAN:
190017559742
Porovnat produkt

Podrobnosti

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

HPE Aruba CX 6000 48G PoE Switch - Specifications

Technical Specifications

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

Product Number R8N85A
Differentiator 48x 10/100/1000BASE-T ports
4x 1G/1G SFP ports
Supports PoE standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x USB Type-A Host Port
Ports 48x 10/100/1000BASE-T ports, 4x 1G SFP ports
Memory and Processor Dual Core ARM Cortex A9 @ 1016 MHz
8 GB DDR3 (max)
16 GB eMMC
Latency 1 Gbps: 1.9 µSec
Throughput 77.3 Mpps
Switching Capacity 104 Gbps
PoE Capability 370W Class 4 PoE/PoE+
Routing Capabilities Static
Input Voltage 100–127 VAC / 200–240 VAC
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
Derate -1°C per 1000 ft (305 m) from 5000 ft to 10000 ft (3.0 km)
Power Consumption Max (w/o PoE): 45W
Max (with PoE): 480W
Dimensions (metric) 4.4 x 44.2 x 30.5 cm
Weight 5.0 kg

HPE Aruba CX 6000 Series Switch Comparison

CX 6000 Series Switch Comparison

Model Overview
Model R8N85A
48G PoE		 R8N86A
48G		 R8N87A
24G PoE
Ports 48x 10/100/1000BASE-T, 4x 1G SFP 48x 10/100/1000BASE-T, 4x 1G SFP 24x 10/100/1000BASE-T, 4x 1G SFP
USB Ports 1x USB-C Console, 1x USB Type-A Host
PoE 370W (Class 4) None 370W (Class 4)
Power Supply Fixed
Fans Fixed
Dimensions (cm) 4.39 x 44.2 x 30.48 4.39 x 44.2 x 24.74 4.39 x 44.2 x 26.82
Weight (kg) 5.02 3.42 4.19
Performance & System
CPU Dual Core ARM Cortex A9 @ 1016 MHz
Memory 4 GB DDR3, 16 GB eMMC
Packet Buffer 12.38MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity 104 Gbps 104 Gbps 56 Gbps
Throughput 77.3 Mpps 77.3 Mpps 41.6 Mpps
Latency 1.9 µs 1.9 µs 1.5 µs
IPv4/IPv6 Hosts IPv4: 1,024
IPv6: 512
MAC Table 8,192
ACL Entries IPv4: 256, IPv6: 128, MAC: 256
Environmental & Electrical
Operating Temp 0°C to 45°C (up to 1.5 km); Derate -1°C per 1000 ft up to 3 km
Humidity (Op/Storage) 15% to 95% @ 40°C (Op), 15% to 90% @ 65°C (Storage)
Altitude (Op/Non-Op) Max Operating: 10,000 ft; Max Non-Operating: 15,000 ft
Frequency 50 / 60 Hz
Voltage 100–127 VAC / 200–240 VAC
Current 4.9 A / 2.4 A 0.8 A / 0.5 A 4.6 A / 2.3 A
Power (230 VAC) Idle: 30.6W
Max: 45W / 480W (PoE)		 Idle: 20.6W
Max: 44.2W		 Idle: 22.9W
Max: 32.7W / 455W (PoE)
Certifications
Safety IEC / EN / UL / CSA 62368-1 (2014/2018)
Emissions VCCI, CNS, FCC, EN 55032, ICES, AS/NZS CISPR 32 (Class A)
Laser IEC / EN 60825-1:2014 Class 1 (Transceivers)
Immunity CISPR 35, IEC 61000-4-x Series, EN 55035

Mounting & Enclosure: Mounts in standard 19" rack, horizontal surface, or wall (kit included).
