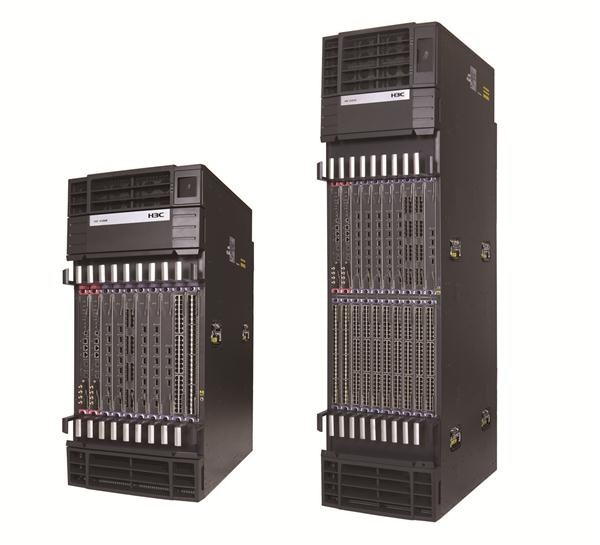

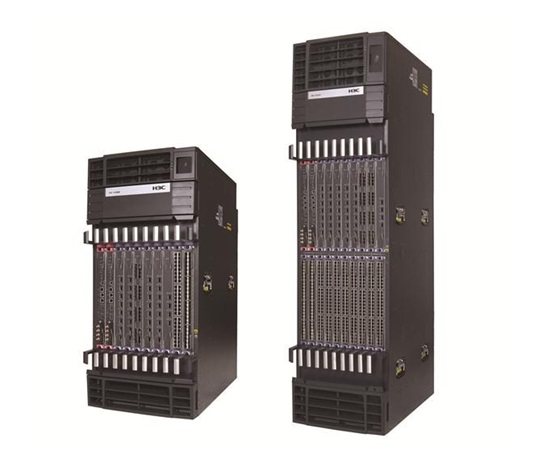

HP 12508 Switch Chassis

Podrobnosti

The HP A12500 Switch series comprises a pair of powerful, next-generation routing switches with outstanding capacity for the network core or the data center. Besides innovative Intelligent Resilient Framework (IRF) technology that provides unprecedented levels of performance and high availability, HP A12500 series switches incorporate the Open Application Architecture (OAA), which enables flexible deployment options for new services. These switches also have energy-efficiency features that drive down operational expenses. The A12500 series is ideal for organizations contemplating large-scale data center or campus consolidations, business continuity and disaster recovery sites, metropolitan area network deployments, and other applications requiring a robust, high-performance switching platform.

Ports
8 open module slots
2 MPU (for management modules) slots
9 switch fabric slots
Supports a maximum of 256 10-GbE ports or 384 Gigabit ports, or a combination

Physical characteristics
Dimensions
29.13(d) x 17.4(w) x 38.39(h) in. (74.0 x 44.2 x 97.5 cm) (22U height)
Weight
209.44 lb. (95 kg)
Full configuration weight
374.78 lb. (170 kg)

Memory and processor
Gigabit Module
PowerPC @ 667 MHz, 512 MB RAM; packet buffer size: 512 MB RAM
(Ingress, shared by 24 1-GbE ports)
10G Module
PowerPC @ 667 MHz, 512 MB RAM; packet buffer size: 512 MB RAM
(Ingress/shared by 2 10-GbE ports)
Management Module
Primary CPU: PowerPC @ 1000 MHz, 128 MB flash MB, 256 MB compact flash, 1 GB RAM
Fabric
PowerPC @ 400 MHz, 128 MB RAM MB

Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet

Performance
Throughput
960 million pps
Routing/Switching capacity
3060 Gbps

Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
5% to 95%, non-condensing
Non-operating/Storage temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity
5% to 95%, non-condensing

Electrical characteristics
Description
Achieved Miercom Certified Green Award
Description 10 Gigabit Ethernet modules consume half the power compared to competitive products; redundant, scalable, 90% efficient power supplies deliver high reliability in data center; new ASIC technology has low power consumption when providing rich features
Maximum heat dissipation
14587 BTU/hr (15389.29 kJ/hr)
Voltage
100-120 / 200-240 VAC
Maximum power rating
4750 W
Notes
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety
CE Labeled; cUL Certified; UL Listed; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60825; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2 No. 60950-1-03; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; UL 60950-1:2003; EN 60950-1:2001; ROHS Compliance

Emissions
VCCI Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity
Generic
ETSI EN 300 386 V1.3.3
EN
EN 55024:1998+ A1:2001 + A2:2003
ESD
EN 61000-4-2; IEC61000-4-2
Radiated
EN 61000-4-3; IEC61000-4-3
EFT/Burst
EN 61000-4-4; IEC61000-4-4
Surge
EN 61000-4-5; IEC61000-4-5
Conducted
EN 61000-4-6; IEC61000-4-6
Power frequency magnetic field
IEC 61000-4-8; EN61000-4-8
Voltage dips and interruptions
EN 61000-4-11; IEC61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3

Management
IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial RS-232C); modem interface

Services
3-year, parts only, global next-day advance exchange (UW983E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UW984E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UW987E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UW990E)
3-year, 24x7 SW phone support, software updates (UW993E)
Installation with minimum configuration, system-based pricing (UX033E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UW985E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UW988E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UW991E)
4-year, 24x7 SW phone support, software updates (UW994E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UW986E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UW989E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UW992E)
5-year, 24x7 SW phone support, software updates (UW995E)
3 Yr 6 hr Call-to-Repair Onsite (UW996E)
3 Yr 6 hr Call-to-Repair Onsite (UW996E)
4 Yr 6 hr Call-to-Repair Onsite (UW997E)
4 Yr 6 hr Call-to-Repair Onsite (UW997E)
5 Yr 6 hr Call-to-Repair Onsite (UW998E)
5 Yr 6 hr Call-to-Repair Onsite (UW998E)

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office

Standards and protocols (applies to all products in series)

BGP
RFC 1657 Definitions of Managed Objects for
BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP4 confederations
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 2796 BGP Route Reflection
RFC 2842 Capability Advertisement with BGP-4
RFC 2858 BGP-4 Multi-Protocol Extensions
RFC 2918 Route Refresh Capability

Denial of service protection
RFC 2267 Network Ingress Filtering
Automatic Filtering of well known Denial of Service
Packets
CPU DoS Protection
Rate Limiting by ACLs

Device management
RFC 1155 Structure and Mgmt Information (SMIv1)
RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0
RFC 2271 FrameWork
RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6
RFC 2573 (SNMPv3 Applications)
RFC 2578-2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 2819 (RMON groups Alarm, Event, History
and Statistics only)
RFC 2819 RMON
RFC 3417 (SNMP Transport Mappings)
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+

General protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1ag Service Layer OAM
IEEE 802.1ah Provider Backbone Bridges
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and
Port
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.1X PAE
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation (LAG)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3ah Ethernet in First Mile over Point to
Point Fiber - EFMF
IEEE 802.3i 10Base-T
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 903 RARP
RFC 951 BOOTP
RFC 959 File Transfer Protocol (FTP)
RFC 1027 Proxy ARP
RFC 1042 IP Datagrams
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 1812 IPv4 Routing
RFC 2131 DHCP
RFC 2338 VRRP
RFC 2784 Generic Routing Encapsulation (GRE)

IPv6
RFC 1350 TFTP
RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address Auto-configuration
RFC 2463 ICMPv6
RFC 2473 Generic Packet Tunneling in IPv6
RFC 2475 IPv6 DiffServ Architecture
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 2710 Multicast Listener Discovery (MLD) for
IPv6
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for IPv6 Hosts
and Routers
RFC 2925 Definitions of Managed Objects for
Remote Ping, Traceroute, and Lookup Operations
(Ping only)
RFC 3315 DHCPv6 (client only)
RFC 3484 Default Address Selection for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3587 IPv6 Global Unicast Address Format
RFC 3810 Multicast Listener Discovery Version 2
(MLDv2) for IPv6
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4541 IGMP & MLD Snooping Switch
RFC 4862 IPv6 Stateless Address Auto-configuration

MIBs
IEEE8023-LAG-MIB
RFC 1213 MIB II
RFC 1229 Interface MIB Extensions
RFC 1286 Bridge MIB
RFC 1493 Bridge MIB
RFC 1573 SNMP MIB II
RFC 1643 Ethernet MIB
RFC 1657 BGP-4 MIB
RFC 1724 RIPv2 MIB
RFC 1757 Remote Network Monitoring MIB
RFC 1850 OSPFv2 MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
RFC 2021 RMONv2 MIB
RFC 2096 IP Forwarding Table MIB
RFC 2233 Interfaces MIB
RFC 2273 SNMP-NOTIFICATION-MIB
RFC 2452 IPV6-TCP-MIB
RFC 2454 IPV6-UDP-MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Target MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 2932IP (Multicast Routing MIB)
RFC 2933 IGMP MIB
RFC 3273 HC-RMON MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3
RFC 3621 Power Ethernet MIB
RFC 3813 MPLS LSR MIB
RFC 3814 MPLS FTN MIB
RFC 3815 MPLS LDP MIB
RFC 3826 AES for SNMP's USM MIB
RFC 4133 Entity MIB (Version 3)
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
LLDP-MIB

MPLS
RFC 2205 Resource ReSerVation Protocol (RSVP) -
RFC 3479 Fault Tolerance for the Label Distribution
Protocol (LDP)
RFC 3487 Graceful Restart Mechanism for LDP
RFC 4090 Fast Reroute Extensions to RSVP-TE for
LSP Tunnels
RFC 4364 BGP/MPLS IP Virtual Private Networks
(VPNs)
RFC 4379 Detecting Multi-Protocol Label Switched
(MPLS) Data Plane Failures
RFC 4447 Pseudowire Setup and Maintenance
Using LDP
RFC 4448 Encapsulation Methods for Transport of
Ethernet over MPLS Networks
RFC 4664 Framework for Layer 2 Virtual Private
Networks
RFC 4665 Service Requirements for Layer 2
Provider Provisioned Virtual Private Networks
RFC 4761 Virtual Private LAN Service (VPLS) Using
BGP for Auto-Discovery and Signaling
RFC 4762 Virtual Private LAN Service (VPLS) Using
Label Distribution Protocol (LDP) Signaling

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D (STP)
RFC 1155 Structure of Management Information
RFC 1157 SNMPv1
RFC 1215 SNMP Generic traps
RFC 1757 RMON 4 groups: Stats, History, Alarms
and Events
RFC 1905 SNMPv2 Protocol Operations
RFC 2211 Controlled-Load Network
RFC 2272 SNMPv3 Management Protocol
RFC 2273 SNMPv3 Applications
RFC 2274 USM for SNMPv3
RFC 2571 SNMP Management Frameworks
RFC 2572 SNMPv3 Message Processing
RFC 2573 SNMPv3 Applications
RFC 2576 Coexistence between SNMP versions
RFC 2578 SMIv2
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)
RFC 3164 BSD syslog Protocol
RFC 3415 SNMPv3 View-based Access Control
Model VACM)
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3

OSPF
RFC 1245 OSPF protocol analysis
RFC 1246 Experience with OSPF
RFC 1587 OSPF NSSA
RFC 1765 OSPF Database Overflow
RFC 1850 OSPFv2 Management Information Base
(MIB), traps
RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA
RFC 3623 Graceful OSPF Restart

QoS/CoS
IEEE 802.1P (CoS)
RFC 2212 Guaranteed Quality of Service
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2697 A Single Rate Three Color Marker
RFC 2698 A Two Rate Three Color Marker
Bi-directional Rate Shaping

Security
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 2867 RADIUS Accounting Modifications for
Tunnel Protocol Support
RFC 2868 RADIUS Attributes for Tunnel Protocol
Support
RFC 2869 RADIUS Extensions

HP A12500 Switch Series
