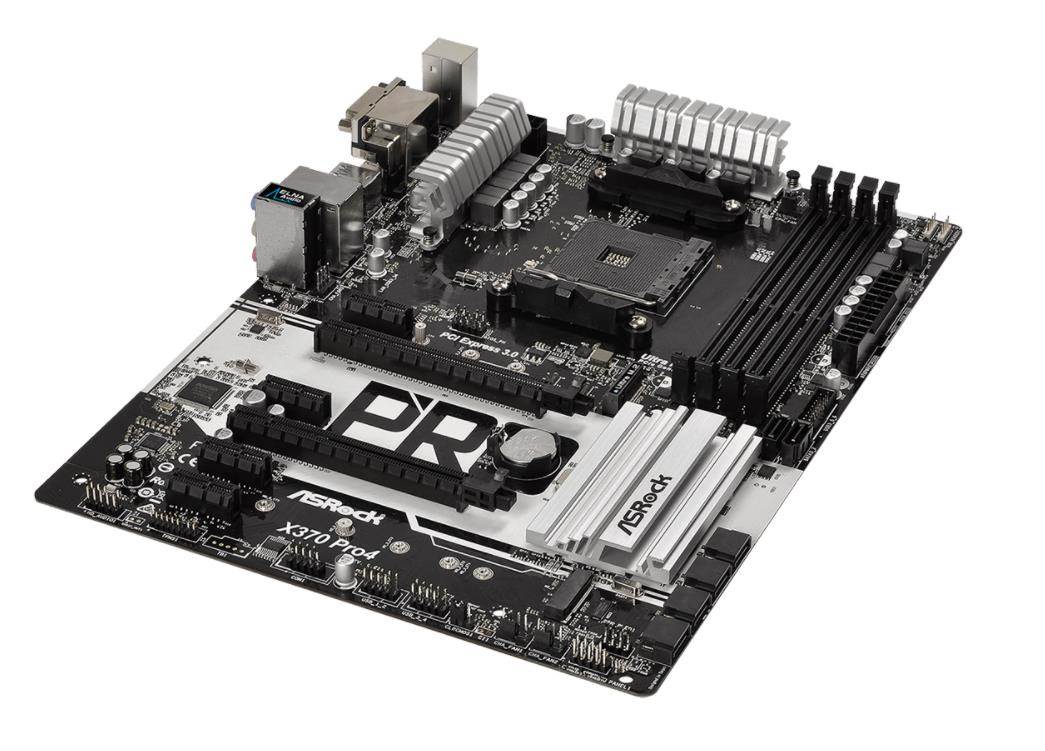

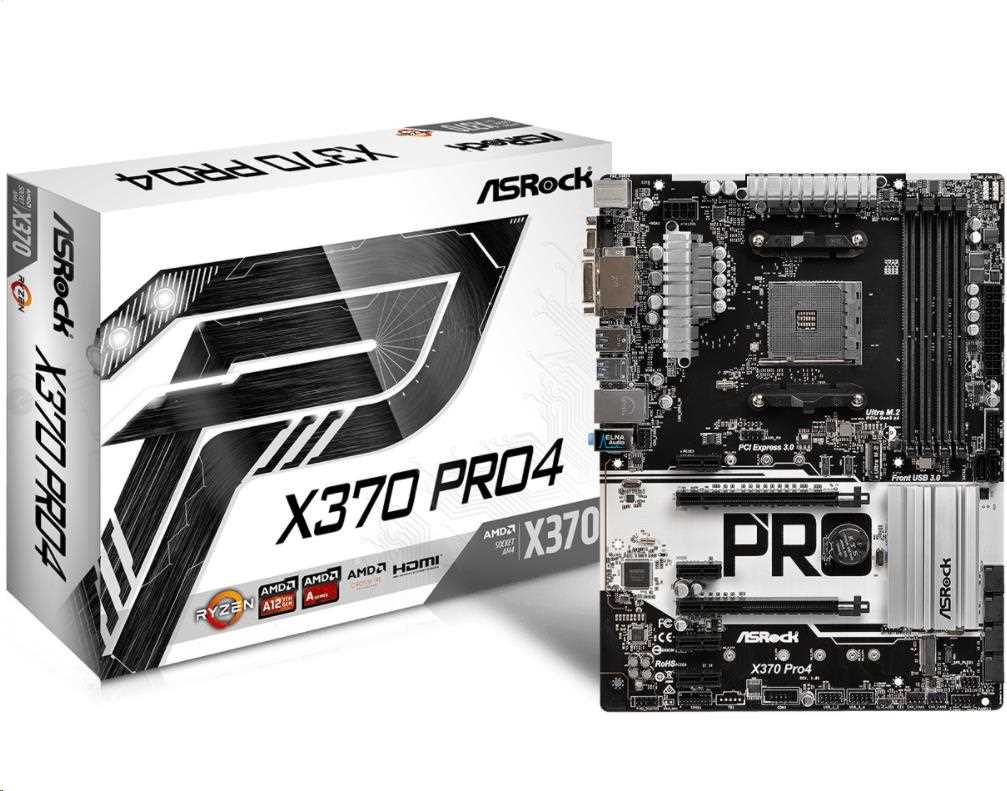

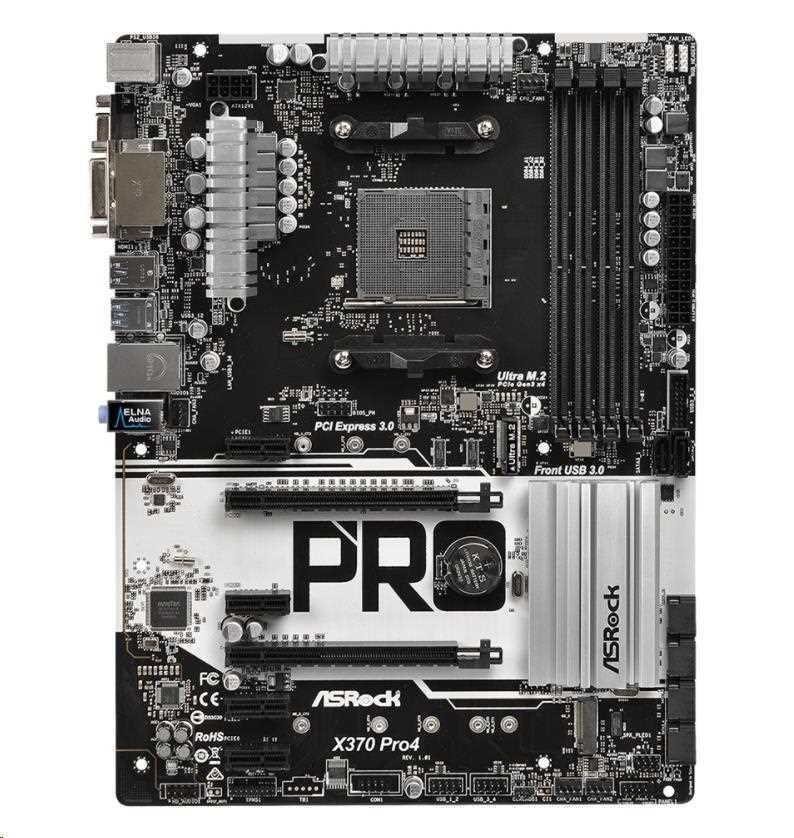

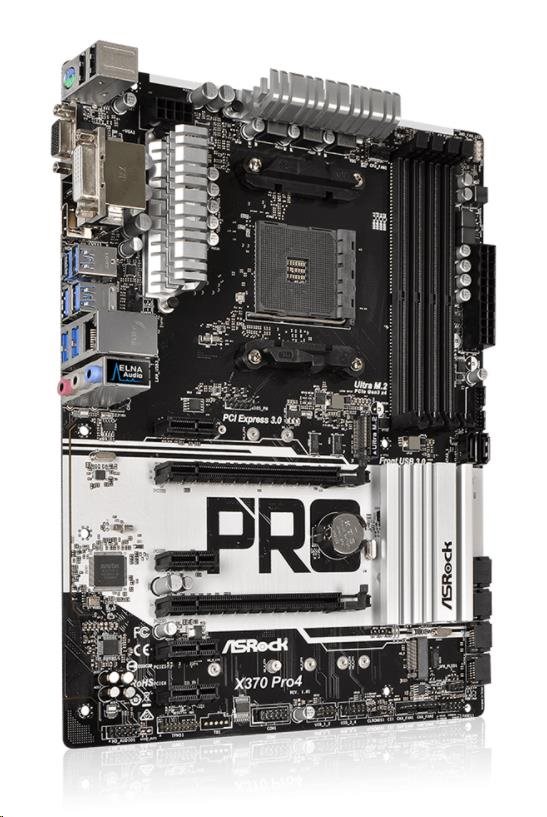

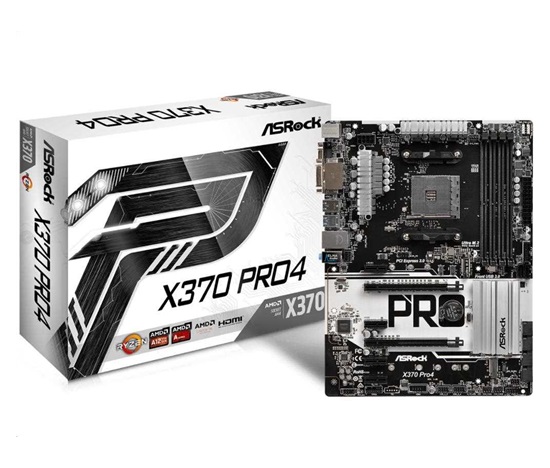

BAZAR - ASRock MB Sc AM4 X370 PRO4, AMD X370, 4xDDR4, VGA - Po opravě (Bez příšlušenství)
Podrobnosti
X370 Pro4
- ASRock Super Alloy
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen CPUs (Summit Ridge & Raven Ridge)
- Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
- 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output:HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
- 8 USB 3.0 (1 Type-C, 2 Front, 5 Rear)
- Realtek Gigabit LAN
TECHNICAL SPECIFICATIONS
| CPU | Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge and Raven Ridge) Digi Power design 9 Power Phase design Supports 95W Air Cooling |
| Chipset | AMD Promontory X370 |
| Memory | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 non-ECC, un-buffered memory* AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory* Max. capacity of system memory: 64GB** 15µ Gold Contact in DIMM Slots ** for more info see link: https://www.asrock.com/mb/AMD/X370%20Pro4/index.asp#Specification |
| Graphic |
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* *Actual support may vary by CPu |
| Slots | AMD Ryzen series CPUs - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))* AMD 7th A-Series APUs/ Raven Ridge CPUs - 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8 (PCIE2) / x2 (PCIE4))* - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™** *Supports NVMe SSD as boot disks **This feature is only supported with Ryzen Series CPUs (Summit Ridge and Raven Ridge). |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)** 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module *M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled. **If M2_1 is occupied, PCIE4 will be disabled. |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111GR Supports Wake-On-LAN Supports Lightning/ESD Protection Supports LAN Cable Detection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Connector | 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 1 x AMD Fan LED Header** 1 x CPU Fan Connector (4-pin)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip **The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****CHA_FAN2 and CHA_FAN3 can auto detect if 3-pin or 4-pin fan is in use. |
| Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Special Features | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |

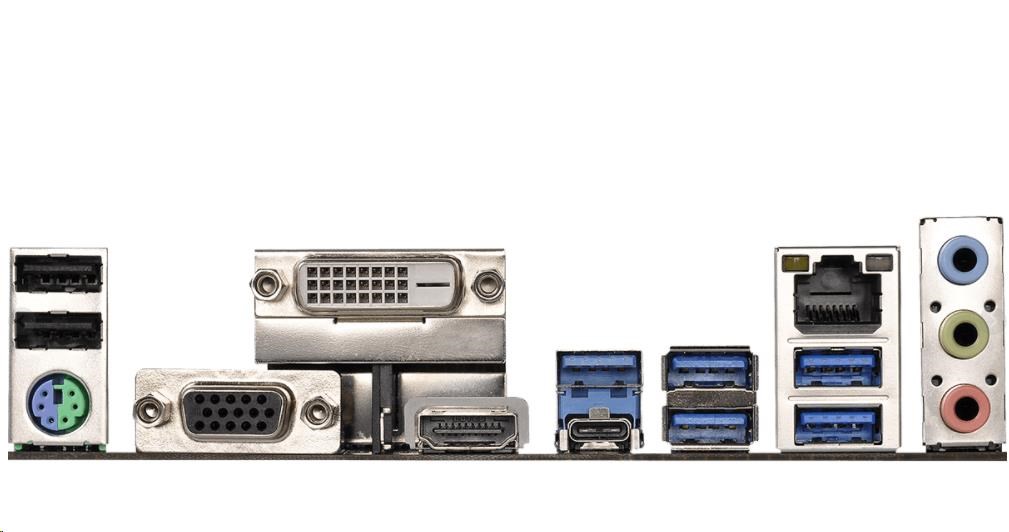

| Rear panel I/O | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) 5 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment |
| Accessories | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets |
| Hardware Monitor | CPU/Chassis temperature sensing CPU/Chassis Fan Tachometer CPU/Chassis Quiet Fan CPU/Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Operating System | Microsoft® Windows® 10 64-bit |
| Form Factor | ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm Solid Capacitor design |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
