ASUS MB S14NA-U12 SP6, 12x DIMM DDR5, 1x VGA, CEB

ASUS MB S14NA-U12 SP6, 12x DIMM DDR5, 1x VGA, CEB
ASUS MB S14NA-U12 SP6, 12x DIMM DDR5, 1x VGA, CEB
ASUS MB S14NA-U12 SP6, 12x DIMM DDR5, 1x VGA, CEB
ASUS MB S14NA-U12 SP6, 12x DIMM DDR5, 1x VGA, CEB

Formát základní desky:CEB; Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:12; M.2 slot:2; SATA 3:8; Podpora RAID:Bez RAID podpory; PCI Express x16:2; PCI Express x8:1; PCI Express x1:0; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:0; VGA:1; DVI:0; DisplayPort Type-C:0; Počet Thunderbolt:0; USB 2:0; USB 3:2

Vaše cena:
Dostupnost: Skladem 10 ks
Kód:
1887814
P/N:
90SB0CG0-M0UAY0
Záruka:
36 Měsíc(ů)
Výrobce:
Asus
Zástupce v EU:
EAN:
4711387343203
Porovnat produkt

Podrobnosti

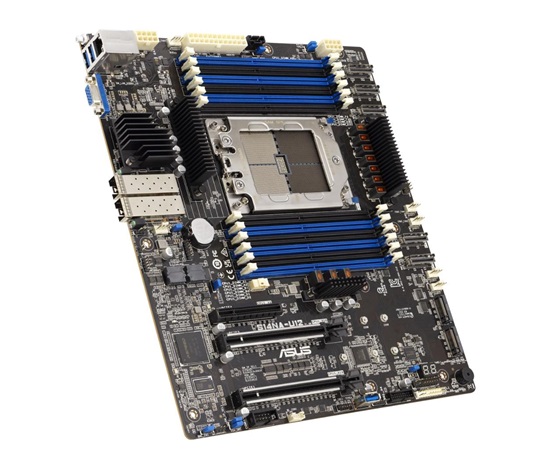

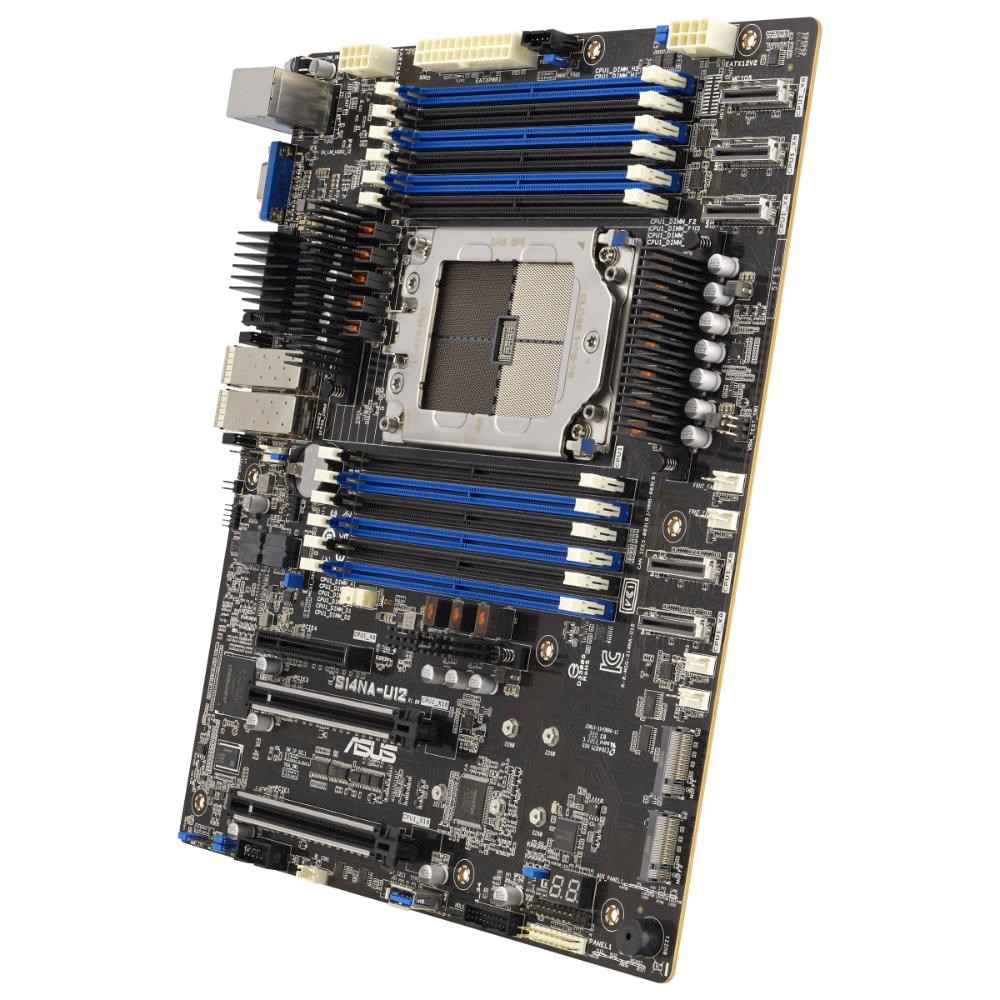

ASUS S14NA-U12

The ASUS S14NA-U12 is a high-performance server motherboard designed for data centers, cloud infrastructure, and edge applications. It supports AMD EPYC 8004-series processors (up to 64 cores and a TDP of 225 W) and offers robust network connectivity, extensive storage options, and remote management capabilities. Its form factor and design make it an ideal choice for reliable and powerful single-socket servers.


Processor / System Bus
1 x Socket SP6 (LGA 4844)
AMD EPYC™ 8004 Series (up to 225W)

Memory
Total Slots: 12 (6-channel, 2-DIMM per Channel)
Capacity: Maximum up to 1152GB per CPU socket
Memory Type: DDR5 4800/4000/3600 RDIMM
Memory Sizes: 96GB, 64GB, 48GB, 32GB, 24GB, 16GB (RDIMM)
*Please refer to www.asus.com for latest memory AVL update

Expansion Slots
Total Slots: 3
2 x PCIe 5.0 x16 slot (x16 link, FL)
1 x PCIe 5.0 x8 slot (x8 link, FL)

Form Factor
CEB, 12" x 10.5"

Storage
M.2:
1 x M.2 (PCIe Gen5 x4, support 22110) (SATA Mode support)
1 x M.2 (PCIe Gen5 x4, support 2280) (SATA Mode support)
MCIO:
4 x MCIO connector (PCIe Gen5 x8), support 8 x NVMe drives
1 x MCIO connector (PCIe Gen5 x8), support 8 x SATA drives or 2 x NVMe drives

Networking
2 x SFP28 25Gb/s (Broadcom BCM57414B1KFSBG)
1 x Mgmt LAN

On Board I/O
1 x USB 3.2 Gen1 header (2 ports for front panel)
1 x USB 3.2 Gen1 port (Type-A vertical)
1 x Serial port header
6 x FAN headers (4-pin)
1 x TPM header
1 x Chassis Intruder header (2-pin)

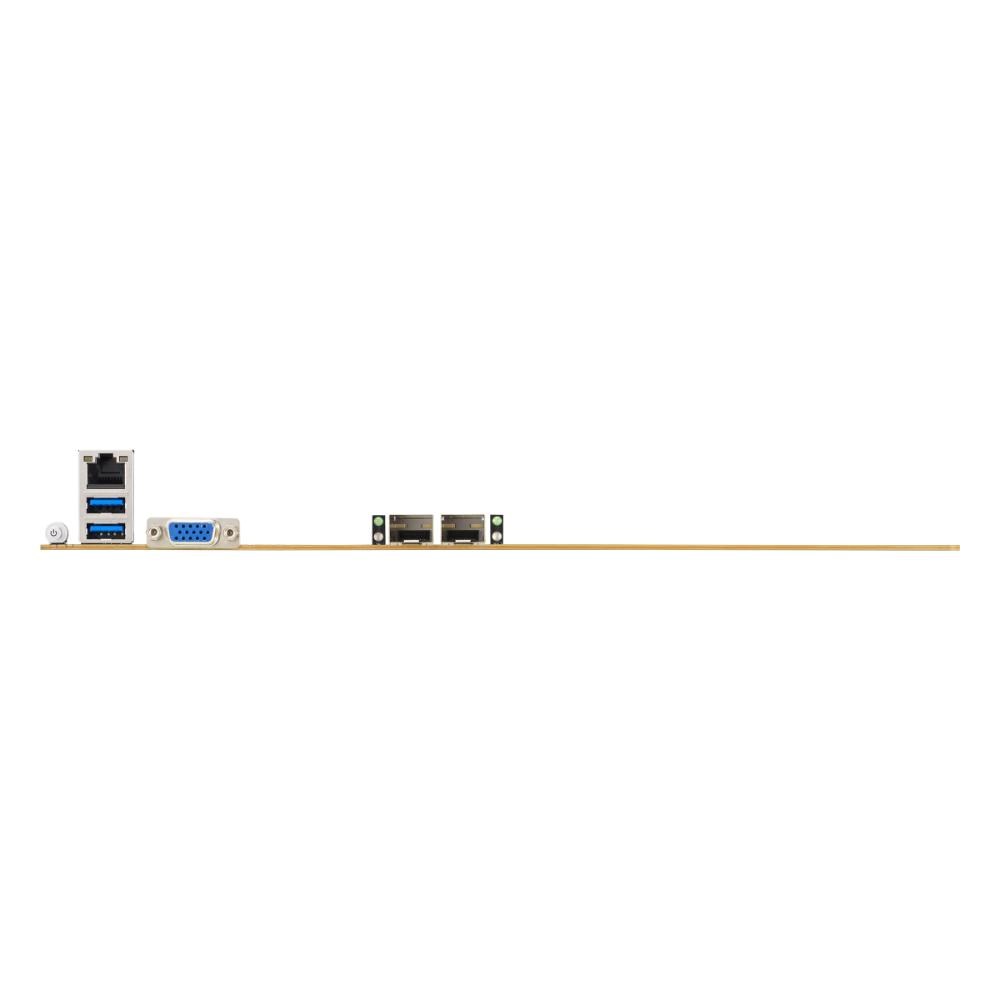

Back I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
2 x SFP28 25Gb/s
1 x RJ-45 Management port

Management Solution
ASUS Control Center
ASMB11-iKVM module for KVM-over-Internet

Environment
Operation temperature: 10? ~ 35?
Non-operation temperature: -40? ~ 70?
Non-operation humidity: 20% ~ 90% (non-condensing)

Accessories
Gift Box (1-in-1):
1 x I/O shield
1 x COM port cable
1 x Double M.2 screw
4 x Rubber
Bulk Pack (10-in-1):
1 x I/O shield
1 x Double M.2 screw
4 x Rubber

Technické parametry
