Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A Q9H62AR

Promoakce
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A Q9H62AR
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A Q9H62AR
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A Q9H62AR

Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A Q9H62AR

Vaše cena:
Dostupnost: Skladem 11 ks
Kód:
703416
P/N:
Q9H62AR
Záruka:
99 Doživotní
Výrobce:
Hewlett Packard Enterprise
Zástupce v EU:
EAN:
703416
Porovnat produkt

Podrobnosti

HPE Aruba Networking AP-515 (RW)AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP Q9H62A

General

Product Number: Q9H62A

Differentiator: Available everywhere except US, Israel, Japan, and Egypt

Certifications

  • UL2043 plenum rating
  • Bluetooth SIG
  • Wi-Fi Alliance:
    • Wi-Fi CERTIFIED: a, b, g, n, ac, ax
    • WPA, WPA2, WPA3 (Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE))
    • WMM, WMM-PS, Wi-Fi Agile Multiband
    • Wi-Fi CERTIFIED Location™

Regulatory

  • FCC/ISED
  • CE Marked
  • RED Directive 2014/53/EU
  • EMC Directive 2014/30/EU
  • Low Voltage Directive 2014/35/EU
  • UL/IEC/EN 62368-1
  • EN 60601-1-1, EN 60601-1-2

Railway Certifications (AP-515 Only)

  • EN 50155:2017 - Railway Applications
  • EN 50121-1:2017 - Railway EMC
  • EN 50121-3-2 - Railway EMC
  • EN 50121-4:2016 - Railway Immunity
  • IEC 61373 ed2:2008 - Railway Shock and Vibration

Wireless & Antennas

Standard: Wi-Fi 6 (IEEE 802.11ax)

Wi-Fi Antenna: Four integrated dual-band downtilt omni-directional antennas

  • 4x4 MIMO
  • 2.4 GHz peak gain: 4.2 dBi
  • 5 GHz peak gain: 7.5 dBi

Ports

  • E0: HPE Smart Rate (RJ-45), max 2.5 Gbps
  • E1: 10/100/1000BASE-T Ethernet (RJ-45)
  • USB 2.0 Host (Type A)
  • Serial console (proprietary, micro-B USB)

Mounting

Pre-installed mounting bracket. Compatible with optional mounting kits (see ordering guide).

Power Consumption

  • DC powered: Max 16.0W
  • PoE (802.3af, IPM enabled): 13.5W
  • PoE (802.3at/bt): 20.8W
  • Idle mode: 12.6W (PoE), 9.7W (DC)
  • Deep-sleep mode: 5.9W (PoE), 1.5W (DC)

Radio Coverage

Indoor dual radio:

  • 5 GHz 802.11ax 4x4 MIMO
  • 2.4 GHz 802.11ax 2x2 MIMO

Warranty

Limited lifetime warranty. See the warranty documentation for duration details.

Dimensions

Size: 46 x 200 x 200 mm

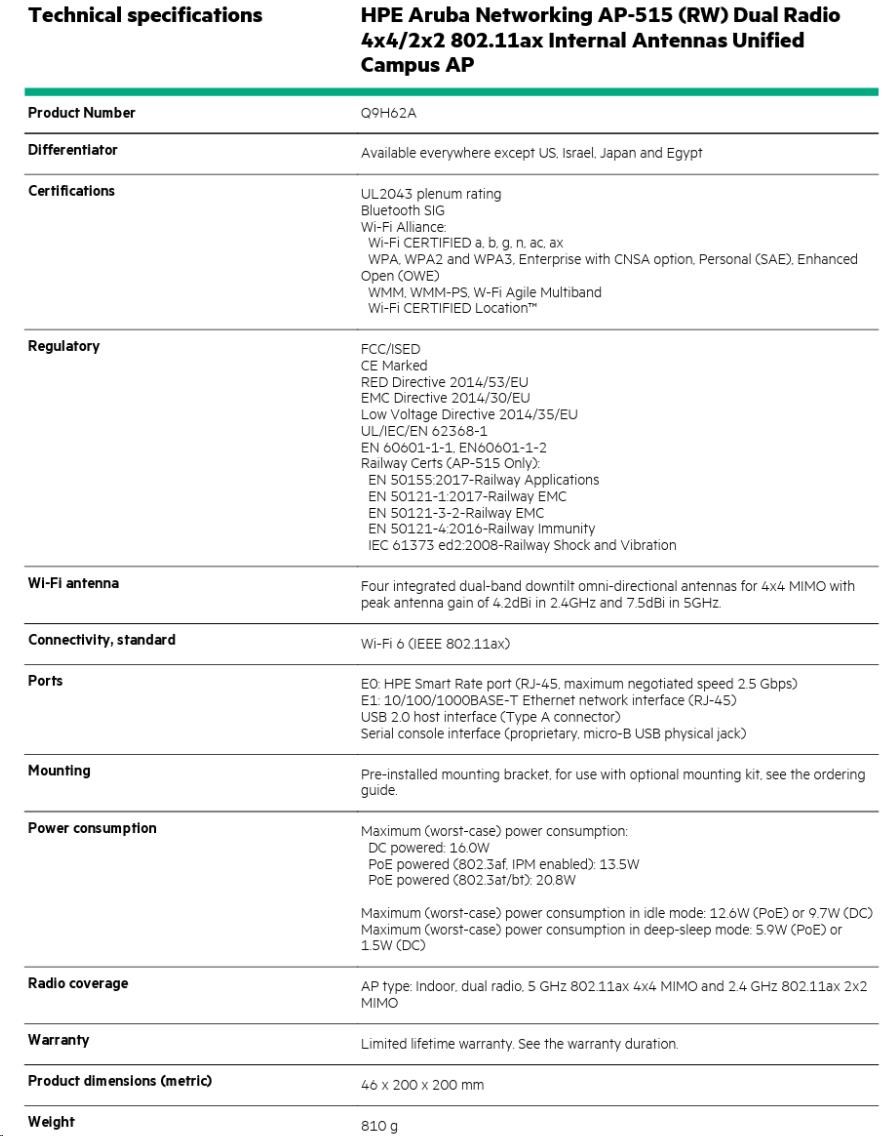

Technické parametry
