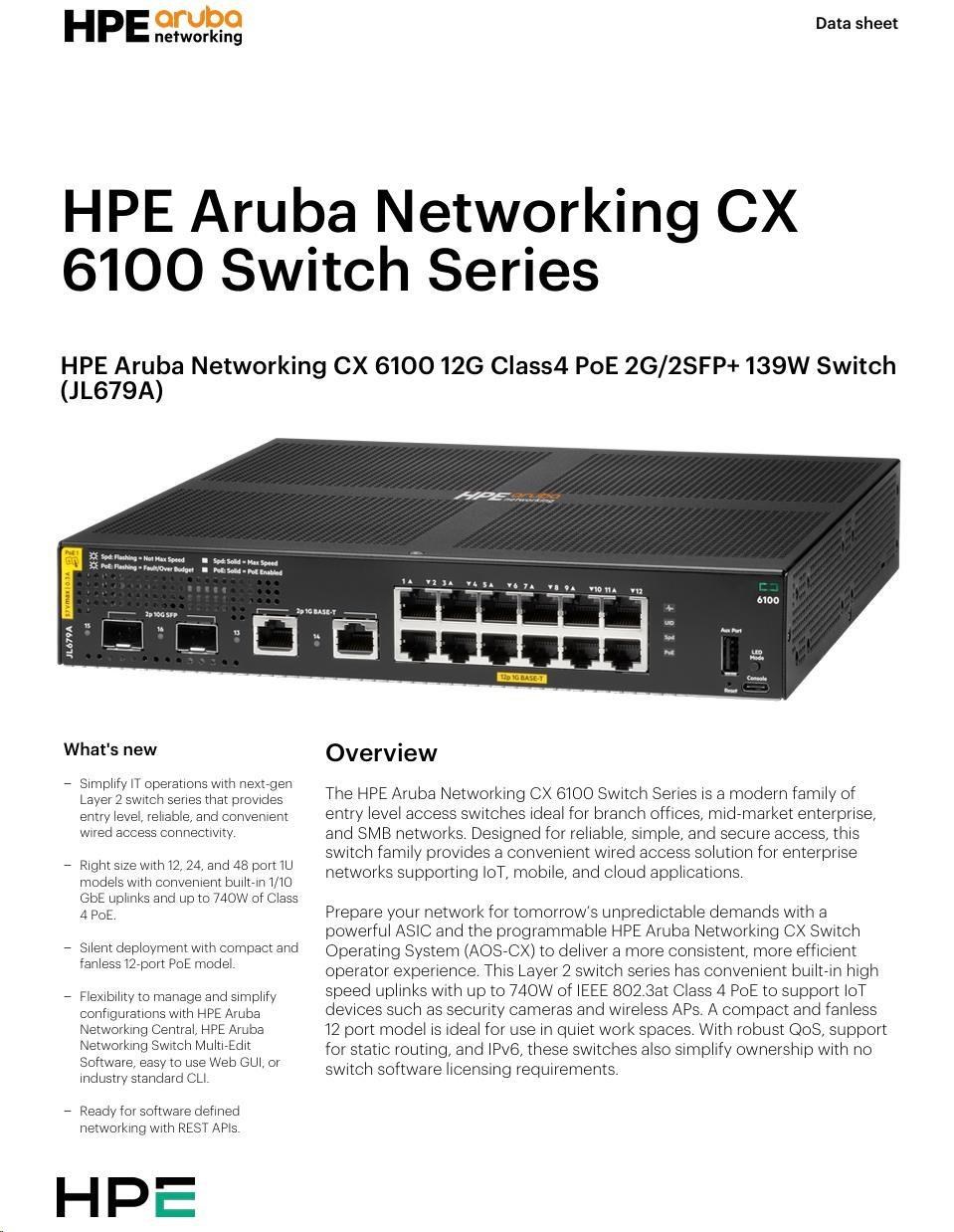

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, Stohovatelnost, L2, L3, VPN; Technologie:Fast Ethernet + Gigabit uplink, Gigabit Ethernet + 10 GbE porty; Počet portů LAN:12; Počet portů LAN:12; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):140
Podrobnosti
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) |
|

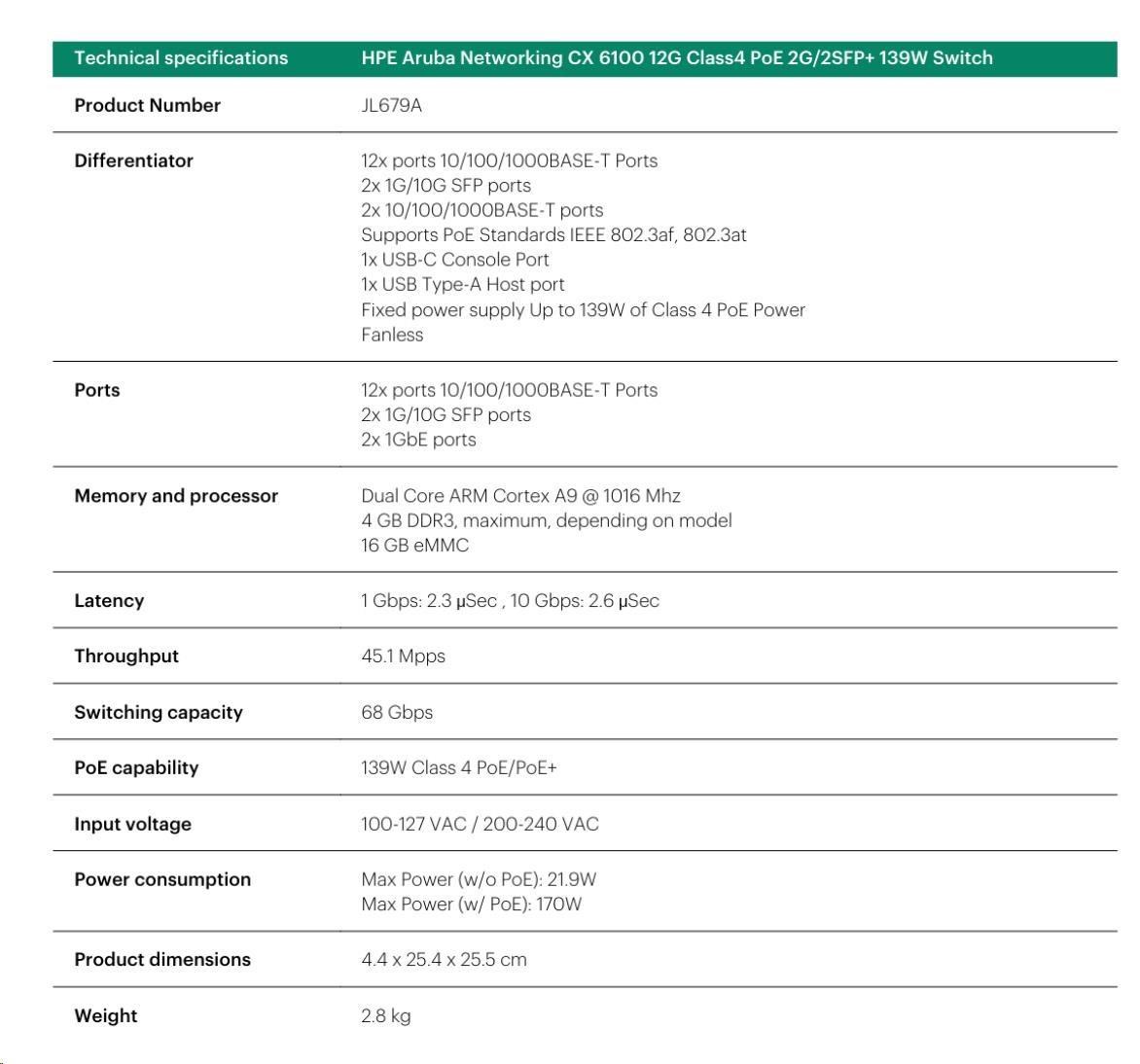

Description |
12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
Power supplies |
Fixed power supply (165W) Up to 139W of Class 4 PoE Power |
Fans |
Fanless |
Physical characteristics |
|
Dimensions |
(H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73" x 10.0" x 10.04") |
Configuration Weight |
2.78 kg (6.13 lbs) |
Additional Specifications |
|
CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
Memory and Flash |
4 GB DDR3 16 GB eMMC |
Packet Buffer |
12.38MB (4.5MB Ingress/7.875MB Egress) |
Performance |
|
Model Switching Capacity |
68 Gbps |
Model Throughput Capacity |
45.1 Mpps |
Average Latency (LIFO-64-bytes packets) |
1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec |
Switched Virtual Interfaces (dual stack) |
16 |
IPv4 Host Table (ARP) |
1,024 |
IPv6 Host Table (ND) |
512 |
IPv4 Unicast Routes |
512 |
IPv6 Unicast Routes |
512 |
MAC Table Capacity |
8,192 |
IGMP Groups |
512 |
MLD Groups |
512 |
IPv4/IPv6/MAC ACL Entries (ingress) |
256 / 128 / 256 |
Environment |
|
Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
Operating Relative Humidity |
15% to 95% at 104°F (40°C) non-condensing |
Non-Operating |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
Non-Operating Storage Relative Humidity |
15% to 90% @ 149°F (65°C) non-condensing |
Max Operating Altitude |
10000 feet (3 km) Max |
Max Non-Operating Altitude |
15000 feet (4.6 km) Max |
Acoustic |
Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB |
Primary Airflow |
- |
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) |
|
Electrical Characteristics |
|
Frequency |
50 / 60 Hz |
AC Voltage |
100-127 VAC / 200-240 VAC |
Current |
1.8 A / 0.9 A |
Power Consumption (230 VAC) |
Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W |
Safety |
|
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014 |
|
Emissions |
|
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
|
Lasers |
|
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
|
Immunity |
|
Generic |
CISPR 24 / CISPR 35 |
EN |
EN 55024:2010 / EN 55035:2017 |
ESD |
IEC 61000-4-2 |
Radiated |
IEC 61000-4-3 |
EFT/Burst |
IEC 61000-4-4 |
Surge |
IEC 61000-4-5 |
Conducted |
IEC 61000-4-6 |
Power frequency magnetic field |
IEC 61000-4-8 |
Voltage dips and interruptions |
IEC 61000-4-11 |
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
Mounting and Enclosure |
|
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
Technické parametry
- Provedení: Rack mounted 19"
- Funkce: QoS (Quality of service)
- Funkce: VPN
- Funkce: L3
- Funkce: L2
- Funkce: DHCP snooping
- Funkce: Stohovatelnost
- Funkce: PoE (Power over ethernet)
- Funkce: VLAN (virtual local area network)
- Technologie: Gigabit Ethernet + 10 GbE porty
- Technologie: Fast Ethernet + Gigabit uplink
- Počet portů LAN: 12
- Počet portů LAN: 12
- Podporované standardy PoE: 802.3at
- Podporované standardy PoE: 802.3af
- PoE budget (W): 140
- Počet PoE Out portů: 12
- Počet PoE Out portů: 12
- Počet SFP portů: 2
- Počet SFP portů: 2
- Počet SFP+ portů: 2
- Počet SFP+ portů: 2
- Ventilátor: Ne
- Maximální počet portů: 12
- Počet PoE+ portů: 12
- Počet USB 2.0: 2
- Počet USB 2.0: 2
- PoE budget (W): 140
- Přenosová rychlost LAN (Mb/s): 45
- Maximální počet portů: 12
- Počet PoE+ portů: 12
- Management: SNMP/RMON
- Vlastnosti switche: Funkce POE po portech
